Best selling Energy monitors from Siemens
On this page you’ll find a ranking of the best Energy monitors from Siemens. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Siemens Digital Power Meter, 65A, Modbus 230Vac
Siemens digital industrial device 7KM2200-2EA40-1EA1
Manufacturer: Siemens
Designation: Measuring device 65A
Type: 7KM2200-2EA40-1EA1
Meter type: electronic
Rated current (In): 65 A
Maximum current (Imax): 65 A
Rated voltage (Un) N-L: 3..276 V
Rated voltage (Un) L-L: 3..480 V
Connection type: three-phase/four-wire
Design: direct measurement
Energy type: active and reactive power
Suitable for: consumption/supply
Tariff version: two-tariff
Load profile measurement: no
Reverse flow prevention: yes
Calibrated: no
Pulse output: electrical
Pulse type: S0
Display type: digital
Width in division units: 6
With lock code: yes
Number of digits: 12
Protection class (IP): IP40
Siemens digital industrial device 7KM2200-2EA40-1EA1: additional details SENTRON, measuring device, 7KM PAC2200, LCD, L-L: 400 V, L-N: 230 V, 65 A, DIN rail device, three-phase, Modbus TCP, apparent/active/reactive energy, self-powered, screw connection.
Energy meter SENTRON 7KM PAC2200 for measuring energy consumption in single-phase and three-phase networks, e.g., in industrial plants, purpose-built buildings, offices, and apartments in multi-family houses. The energy measuring devices 7KM PAC 2200 with extended functionality accurately, reproducibly, and reliably capture energy values for feed-in, electrical outputs, or individual consumers through transformer or direct measurement up to 65 A. They not only provide comprehensive information about your electrical installation and energy distribution but also important measurement values for assessing the condition of the system. For further processing of the measurement data, the devices can be easily integrated into higher-level automation and energy management systems via Modbus TCP, PROFINET, Modbus RTU, and M-Bus, thanks to their diverse communication options. The 7KM PAC measuring devices are available in various versions to suit the scope of your requirements. SENTRON PAC - specialists in measurement data acquisition.
EAN: 4001869538594.
2. Siemens Logo 230RCE
Logo! 230RCE, logic module, display SVEA: 115V 230V relay, DE4 DA, SP. 400 blocks, modularly expandable, Ethernet, integrated web server, data logging, customizable web pages, standard microSD card for Logo! Soft Comfort from V8.4, older projects can be executed, cloud connectivity, MQTT in all Logo! 8.4 base units. The Logo! base units with digital inputs and outputs and their compact installation width of 72 mm have many well-known functions integrated, such as pulse relay, staircase automation, auxiliary relay, time relay, etc., which can be combined in various ways. Switching programs can be easily created and simulated on a PC. The integrated Ethernet interface allows communication with up to nine Logo! modules or SIMATIC S7 systems. With the also integrated web server, connected consumers can be monitored and controlled via WLAN or the Internet. The web pages can be designed by the user themselves, even without HTML knowledge. Additional modules enable GSM or GPS communication as well as integration into a KNX building management system. Logo! base units are available with and without displays for various input voltages, as well as with transistor or relay outputs up to 10 rated current. Expandable with additional modules to up to 24 DI, 20 DQ, 8 AI, 8 AQ. Integrated cloud communication. Logo! can also be expanded with an external text display for meaningful messages in plain text. The background color is selectable for optical highlights. Various Logo! power modules for power supply are also available.
3. Siemens SENTRON PAC4200 Multifunction Meter
The device captures the energy values for electrical branches or individual consumers in low-voltage power distribution. It can be used for single-phase and multi-phase networks (TN, TT, IT) and provides important data for assessing the condition of the system and the quality of the network. Easy integration into higher-level automation and energy management systems is possible.
4. Siemens 7KT1666-0EE00-0EE0 VPE30 PAC1600
SENTRON measuring device 7KT PAC1600, LCD, L-L: 400 V, L-N: 230 V, 80 A, DIN rail device, 3-phase, Modbus RTU/ASCII + MID, apparent/active/reactive power, self-powered, screw connection, 1PAK = 30 pcs. Energy meters SENTRON 7KT PAC1600 for calibrated measurement of energy consumption in single-phase and three-phase networks, e.g., in industrial plants, utility buildings, offices, and apartments in multi-family homes, for billing purposes. The MID-compliant energy meters 7KT PAC1600 accurately, reproducibly, and reliably capture energy values for feed-in, electrical outputs, or individual consumers via transformer or direct measurement up to 80 A (3-phase) and up to 63 A (1-phase). They provide not only comprehensive information about your electrical installation and energy distribution but also important measurements for assessing the condition of the system. For further processing of the measurement data, the devices can be easily integrated into higher-level automation and energy management systems via Modbus RTU, M-Bus, or S0 interface, thanks to their diverse communication options. The 7KT PAC energy meters are available in various versions to suit the scope of your requirements. SENTRON PAC - specialists in measurement data acquisition.
Energy monitors
−36%
only 1 piece on sale
EUR201,53 was EUR315,52
Siemens 7KT1666-0EE00-0EE0 VPE30 PAC1600
5. Siemens Energy cost meter
There are specific requirements for the measuring technology in this case. A third-party supply occurs when your company provides electricity for final consumption to another natural or legal person. This includes, for example, electricity consumption in rented premises, construction electricity, or a managed cafeteria. Leased devices such as vending machines, printers/copiers, or rented IT infrastructure are also considered third-party consumers.
Without self-supply – PAC2200 MID: Without self-supply, the recording and allocation of electrical active power (kWh) can be adequately performed with a MID-certified measuring device, the PAC2200 MID. The accrued shares of self-consumption and third-party consumption can be balanced and reported annually.
With self-supply – PAC2200 CLP: If you also consume self-generated electricity for which you pay a reduced EEG levy, a quarter-hourly measurement must ensure the simultaneity between self-generated and consumed energy by recording the active power (kWh) in 15-minute intervals and synchronizing with the legal time. The PAC2200 CLP (Certified Load Profile) supports this by generating the active power intervals in accordance with legal metrology and storing them for 2 years.
6. Siemens PAC1600: 1 phasig 63A, Modbus, MID
SENTRON measuring device 7KT PAC1600, LCD, L-N: 230 V, 63 A, DIN rail device, single-phase, Modbus RTU/ASCII + MID, apparent / active / reactive power, self-powered, screw connection. The SENTRON 7KT PAC1600 energy meter is suitable for calibrated measurement of energy consumption in single-phase and three-phase networks, for example in industrial plants, utility buildings, offices, and apartments in multi-family homes, for billing purposes. The MID-compliant energy measuring devices 7KT PAC1600 accurately, reproducibly, and reliably capture energy values for feed-in, electrical outputs, or individual consumers via transformer or direct measurement up to 80 A (three-phase) and up to 63 A (single-phase). They not only provide comprehensive information about your electrical installation and energy distribution but also important measurements for assessing the condition of the system. For further processing of the measurement data, the devices can be easily integrated into higher-level automation and energy management systems through their various communication options, including Modbus RTU, M-Bus, or S0 interface. The 7KT PAC energy meters are available in different variants to suit the scope of your requirements. SENTRON PAC - specialists in measurement data acquisition.
7. Siemens PAC1600: 1 phasig 63A, Mbus
Sentron measuring device 7KT PAC1600, LCD, L-N: 230 V, 63 A, DIN rail device, single-phase, M-Bus, apparent/active/reactive power, self-powered, screw connection. The Sentron 7KT PAC1600 energy meter is designed for measuring energy consumption in single-phase and three-phase networks, such as in industrial facilities, purpose-built buildings, offices, and apartments in multi-family homes. The 7KT PAC1600 energy meters accurately, reproducibly, and reliably capture energy values for feed-in, electrical outputs, or individual consumers through transformer or direct measurement up to 80 A (three-phase) and up to 63 A (single-phase). They provide comprehensive information about your electrical installation and energy distribution, as well as important measurement values for assessing the condition of the system. For further processing of the measurement data, the devices can be easily integrated into higher-level automation and energy management systems through their various communication options, including Modbus RTU, M-Bus, or S0 interface. The 7KT PAC energy meters are available in different variants to suit the scope of your requirements. Sentron PAC - specialists in measurement data acquisition.
8. Siemens Simatic
Siemens Digital Industries SIMATIC HMI MTP1500 PRO 6AV2128-3QB27-1BX0
Manufacturer: Siemens Digital Industries
Designation: SIMATIC HMI MTP1500 PRO
Type: 6AV2128-3QB27-1BX0
Further Details:
SIMATIC HMI MTP1500 PRO, for stand (expandable, flange at the bottom), 15.6 widescreen TFT display, 16 million colors, PROFINET interface, projectable from WinCC Unified Comfort V18, includes open-source software provided free of charge.
The SIMATIC HMI Unified Comfort Panels PRO feature a high protection rating of IP65 (NEMA4) and offer flexible mounting options (e.g., directly on the machine or on a stand or support arm system). All devices, ranging from 12 to 22 inches, provide maximum operating comfort thanks to modern multitouch technology and enable innovative operating concepts based on the new visualization software SIMATIC WinCC Unified.
The functionality of the devices can be easily expanded as needed through the integrated edge functionality. Each Unified Comfort Panel PRO is available in two design variants:
- Standard Design: Siemens and SIMATIC HMI branding with a silver aluminum frame.
- Neutral Design: Without branding and with a black aluminum frame.
The system limits are identical to the Unified Comfort Panels (built-in devices) and have been at least doubled compared to the predecessor model, in some cases even tripled.
EAN: 4047623413639.

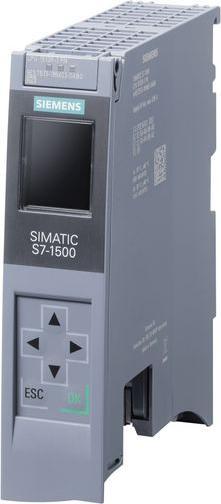

9. Siemens SIEM assembly
SIMATIC S7-1500R, CPU 1513R-1PN, central processing unit with 600 KB of memory for programs and 2.5 MB for data, 1st interface: PROFINET RT with 2-port switch, SIMATIC Memory Card required. Please observe approvals and certificates according to article 109815625. The Advanced Controller SIMATIC® S7-1500 sets benchmarks in terms of system performance and usability. The seamless integration of the SIMATIC S7-1500 controller into the Totally Integrated Automation Portal (TIA Portal) offers advantages such as shared data storage, a unified operating concept, and central services. This makes the use of cross-functional features particularly easy. With its fast system response times, the controller quickly enhances productivity. This means more flexibility and shorter time-to-market for you. Various CPU variants of the SIMATIC S7-1500 are available in several performance classes. The portfolio includes standard CPUs, some with the capability to integrate C/C++ code. In the compact CPUs, the digital and analog I/Os are integrated, and counting inputs and pulse outputs can be directly processed on the CPU. With the fail-safe CPUs, standard and safety programs can be executed on the same controller. The technology CPUs expand the motion control functions available in all SIMATIC S7-1500 controllers for demanding solutions. The Advanced Controller SIMATIC S7-1500 is designed using the SIMATIC STEP 7 Professional software. A SIMATIC Memory Card is required for the operation of this unit.
10. Siemens Sicam
SICAM Q200, multifunctional power quality recorder, PQI-A, dimensions (W x H x D): 192 mm x 96 mm x 134.6 mm, panel-mounted device with integrated LCD display, supply voltage 110 - 230 V. It features 4 inputs for AC voltage measurements and 4 inputs for AC current measurements, without binary modules. The web server allows for parameterization, NTP time synchronization, CE and UL certification, 2 GB memory, Ethernet switch, Ethernet interface, RJ45, and communication protocols Modbus TCP and IEC 61850. The serial interface is RS485, Modbus RTU Gateway/Master.
The SICAM Q200 is a power analyzer designed for highly accurate monitoring and assessment of power quality in electrical energy supply networks. It offers specialized algorithms and functions for energy management applications. The device ensures continuous monitoring and analysis of all relevant parameters. The results assist in defining and implementing appropriate measures to ensure supply quality. This increases the lifespan of equipment and reduces downtime.
Device description: The SICAM Q200 is a class A PQ device according to IEC 62586-1/2 and IEC 61000-4-30 Ed. 3. It captures, visualizes, analyzes, and transmits electrical AC quantities such as current, voltage, frequency, power, harmonics, etc. Through communication interfaces, the measured values can be transmitted to a PC or an energy automation/SCADA system and/or displayed on the screen. Additionally, the SICAM Q200 offers the possibility of combined recording and analysis of measurements directly within the device. Long-term data and events can be transmitted via IEC 61850 to the SICAM PQS / PQ Analyzer System to provide flexible evaluations and reports according to power quality standards (e.g., EN 50160).
