Best selling Drive technology accessories from RS PRO
This page always stays fresh and updates automatically.
1. RS PRO Brushless up to 0.24 Nm, 24 V dc,, shaft-Ø 25mm x 60mm
Supply voltage: 24 V dc
DC motor type: Brushless
Output speed: 4800 rpm
Shaft diameter: 25 mm
Maximum output torque: 0.24 Nm
Length: 60 mm
Brushless DC motor from RS Pro. Introducing: the RS PRO.
2. RS PRO Brushless up to 0.11 Nm, 24 V dc,, shaft-Ø 25mm x 40mm
Supply voltage: 24 V dc
DC motor type: Brushless
Output speed: 4800 rpm
Shaft diameter: 25 mm
Maximum output torque: 0.11 Nm
Length: 40 mm
Brushless DC motor from RS Pro. Introducing: the RS PRO.
3. RS PRO Controller for Electric Actuator
Number of outputs: 1, Voltage: 230V AC. The RS PRO electric actuator controller is a compact control box that can be easily mounted on a flat surface using a mounting plate.
4. RS PRO Controller for Electric Actuator
RS PRO Controller for Electric Actuator The RS PRO electric actuator controller is a compact control box. It can be mounted as an integrated set on the actuator. The controller can drive a maximum of 1 actuator.
5. RS PRO Brush gear motor up to 4.5 Nm, 24 V dc / 13.2 W,, shaft-Ø 6mm, 38mm x 106mm
38 mm 12/24 Vdc geared motor: 3GP3. Motor with graphite brushes, coupled with a quality planetary gearbox. The offset motor winding ensures a low starting torque, allowing for smooth operation. Typical applications include assembly machines.
Drive technology accessories
−9%
EUR409,– was EUR449,–
RS PRO Brush gear motor up to 4.5 Nm, 24 V dc / 13.2 W,, shaft-Ø 6mm, 38mm x 106mm
6. RS PRO Rivet extractor Large
Chain pitch size = 19 → 32 mm. Chain rivet and chain pin puller. These chain pin pullers from the trusted brand RS Pro, also known as chain rivet pullers and chain switches, assist you in removing, repairing, or loosening the rivets.
7. RS PRO Motor brake module 2.2kW
Phase: 3
Starter included: Yes
Power: 2.2 kW
Supply voltage: 380 - 415 Vac
Response time: 0.6 s
Braking torque: Yes
Detailed operating manual. These modules are primarily used as production brakes and should not be used in emergency situations. Feed braking modules. These modular electronic units are suitable for smooth braking of three-phase AC induction motors, as used in production and process machinery. The modules utilize the principle of injecting direct current into the stator windings, creating a stationary magnetic field. This stationary field slows down the rotor and stops the power transmission. The braking process is initiated by external control devices such as push buttons, limit switches, etc., which in turn start the module and close the additional brake relay (not included). Information on suitable relays can be found in the gearbox/switchgear section of the catalog. Electronic modules offer the following advantages over mechanical equivalents: compact design, suitable for mounting on a 35 mm symmetrical DIN rail, easy retrofitting, quick initiation of the braking function when needed (usually within 0.6 seconds), no maintenance required, customizable braking time and braking torque, self-supply via two-phase power supply. The application range for injection brakes includes: braking of machinery with long deceleration times due to high inertia loads; circular saws, rolling machines, and other process equipment, where rapid stopping of the system causes increased cycle or changeover times.
8. RS PRO Brush gear motor up to 2.2 Nm, 24 V dc / 13.2 W,, shaft-Ø 6mm, 38mm x 96mm
The RS PRO brushed geared motor is a powerful DC motor designed for drive engineering applications. With a supply voltage of 24 V DC and a power output of 13.2 W, this motor provides reliable performance and a maximum output torque of up to 2.25 Nm. The motor features a planetary gearbox that allows for a gear ratio of 19:1, resulting in an output speed of 332 RPM. The shaft diameter of 6 mm makes it compatible with a variety of applications, while the compact dimensions of 38 mm x 96 mm enable easy integration into existing systems. This brushed geared motor is ideal for use in various industrial and technical applications where precise control and high efficiency are required.
- Maximum output torque of 2.25 Nm
- Planetary gearbox with a gear ratio of 19:1
- Output speed of 332 RPM
- Compact dimensions for easy integration.
Drive technology accessories
−12%
EUR379,– was EUR429,–
RS PRO Brush gear motor up to 2.2 Nm, 24 V dc / 13.2 W,, shaft-Ø 6mm, 38mm x 96mm
9. RS PRO Undervoltage release 415V
The 415V undervoltage release from RS PRO is an essential accessory for drive technology, specifically designed for use with the XL-2000-1 series. This device provides a reliable solution for the automatic shutdown of motors in the event of undervoltage, preventing damage to electrical systems. With a voltage range of 380 to 415 V AC, the undervoltage release ensures safe and effective functionality in various industrial applications. Its compact design, measuring 43 mm in width, 23 mm in height, and 53 mm in length, allows for easy integration into existing systems. Manufactured in Switzerland, this product meets high quality standards and contributes to efficiency and safety in drive technology.
- Automatic shutdown in case of undervoltage
- Compatible with XL-2000-1 series
- Made in Switzerland for high quality.

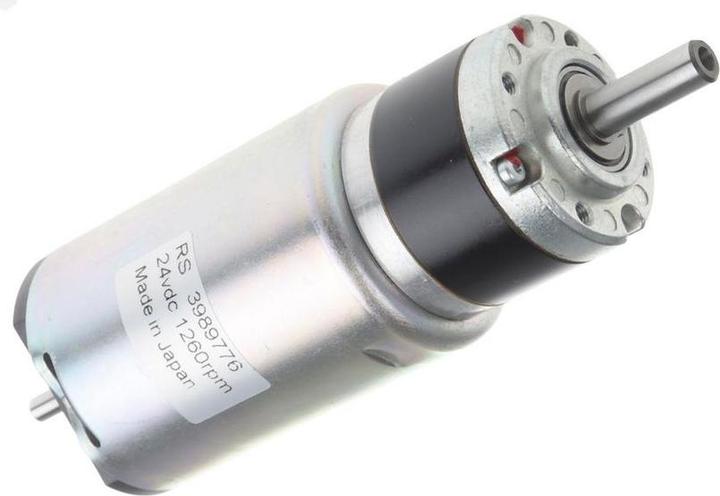

10. RS PRO Brush gear motor up to 75 Ncm, 24 V dc / 13.2 W,, shaft-Ø 6mm, 38mm x 87mm
38 mm 12/24 Vdc gear motor: 3GP3. Motor with graphite brushes, coupled with a quality planetary gearbox. The offset motor winding ensures a low starting torque and allows for smooth operation. Typical applications include assembly machines.
Drive technology accessories
−8%
EUR339,– was EUR369,–
RS PRO Brush gear motor up to 75 Ncm, 24 V dc / 13.2 W,, shaft-Ø 6mm, 38mm x 87mm
