Best selling Door hinges from FritsJurgens
This page always stays fresh and updates automatically.
1. FritsJurgens Pivot-Türbänder Sys. M32+/ D, 70mm
The M32+ pivot hinge system is an innovative solution for swing and flush doors that combines functionality with aesthetics. This hinge is invisibly milled into the door, creating a clean and modern look. With maintenance-free moving parts, it is suitable for door thicknesses starting from 40 mm and can be easily retrofitted without the need for structural modifications. The system is also designed for use with underfloor heating. The fully customizable door movement allows for individual adjustment of the opening damping, 30° speed control, and end stop, ensuring precise control of the door movement. The end stop function ensures that doors with locks always close correctly, which is particularly advantageous for pivot doors in outdoor settings. The M32+ system is suitable for a wide range of door weights, from lightweight to oversized doors with a maximum weight of 500 kg, providing maximum design freedom. The doors have been tested for a lifespan of 1,000,000 door cycles, underscoring the durability and reliability of the system.
- Invisible installation for aesthetic door solutions
- Maintenance-free moving parts for long-term use
- Fully customizable door movement for individual settings
- Suitable for doors up to 500 kg for maximum flexibility.
2. FritsJurgens Ficci per porte Sistema Fx 40 mm versione A acciaio inox opaco
The Ficci per porte Sistema Fx 40 mm in version A from FritsJurgens is a high-quality door hinge specifically designed for swing doors weighing up to 119 kg. This system combines a minimalist and elegant design with remarkable durability, ensured by the use of matte stainless steel. It is ideal for interior doors and allows for quick and straightforward installation without compromising on stability or aesthetics. The innovative construction enables a full 360° rotation of the door, allowing for flexible use in various spaces. The double-action feature of the system allows the door to open in both directions, providing additional functionality.
- Minimalist and elegant design
- Full 360° rotation of the door
- Double-acting with hold positions at 90°
- Easy installation without compromising stability.
3. FritsJurgens Pivot-T+AMMAvA-rb+AMMApA-nder One / G 40mm, ES matt
The new System One is only 18 mm high, making it significantly flatter than the previous model. It is suitable for doors with a pivot point of 40 mm and can be combined with the upper pin hinge of 40 mm. Despite the new, simpler design, the hinge can still be used for doors weighing up to 500 kg. For swing and flush doors, the upper and lower pin hinges are invisibly milled into the door. With maintenance-free moving parts, it is suitable for a door thickness of 40 mm and can be retrofitted, as it requires no structural modifications. It is also compatible with underfloor heating.
Compact
System One functions as a single pivot point without fixed stop positions or automatic closing mechanisms. It is a simple, small, yet versatile pivot hinge.
Free-swinging
Thanks to the simplicity of System One, free-swinging pivot doors can be easily combined with door frames.
For flush and swing doors
Due to the free rotational movement of System One, this pivot hinge can be used in pivot doors with and without stops.
The maximum door height depends on the door material and maximum door weight. The doors have been tested for 1,000,000 door cycles.
4. FritsJurgens Pivot-Türbänder Sys. 3/ E, 70mm
For pivot doors, the upper and lower pivot hinges are invisibly milled into the door. It features maintenance-free moving parts and is suitable for doors with a thickness of 40 mm or more. The hinge can be installed retroactively, as no structural modifications are required. It is also compatible with underfloor heating. All functions and adjustment options are integrated into the hinge. From an opening angle of approximately 45 degrees, the door automatically continues to rotate to the 90-degree position. The opening angle gradually increases between 0 and 45 degrees. The upper pivot hinge is available optionally with or without cable passage.
System 3 offers a 360° rotational movement while providing features such as self-closing and locking positions. From any 45° angle, System 3 automatically pivots to the locking positions of 0°, 90°, 180°, or 270°.
The 360° rotation combined with the locking positions and the automatic closing function are ideal characteristics for movable walls. The maximum door height depends on the door material and maximum door weight. The doors have been tested for 1,000,000 door cycles.
5. FritsJurgens Ficci per porte Sistema Fx 70 mm versione A
The Ficci pivot door system Fx 70 mm in version A from FritsJurgens is a state-of-the-art hinge specifically designed for swing doors weighing up to 119 kg. This system combines a minimalist and elegant design with exceptional durability, making it the ideal choice for interior doors. Installation is quick and straightforward, without compromising on stability or aesthetics. The system allows for a complete 360° rotation of the pivot door and offers hold positions at 0°, 90°, 180°, and 270°. Additionally, it is double-acting, meaning the door can be opened in both directions, with a hold position at 90° on each side. The flexibility in use and high quality make this hinge an excellent choice for modern interiors.
- Minimalist and elegant design
- Complete 360° rotation with hold positions
- Double-acting with 90° hold positions
- Easy installation without compromising stability.

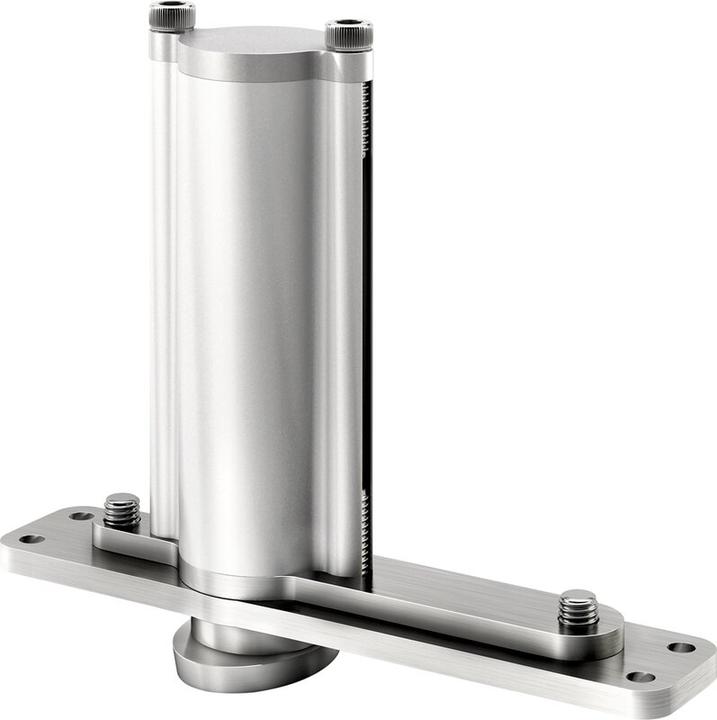

6. FritsJurgens Pivot-Türbänder Sys. 3/ AA, 70mm
For pivot doors, the upper and lower pivot hinges are invisibly milled into the door, featuring maintenance-free moving parts. It is suitable for doors with a thickness of 40 mm and can be retrofitted without the need for structural modifications. It is also compatible with underfloor heating. All functions and adjustment options are integrated into the hinge. From an opening angle of approximately 45 degrees, the door automatically continues to rotate to the 90-degree position. The opening angle gradually increases between 0 and 45 degrees. The upper pivot hinge is available optionally with or without cable routing.
System 3 offers a 360° rotation and simultaneously features functions such as self-closing and fixed stop positions. From any 45° angle, System 3 automatically swings into the fixed stop positions of 0°, 90°, 180°, or 270°. The 360° rotation combined with the fixed stop positions and the automatic closing function are ideal characteristics for movable walls.
The maximum door height depends on the door material and maximum door weight. The doors have been tested for 1,000,000 door cycles.

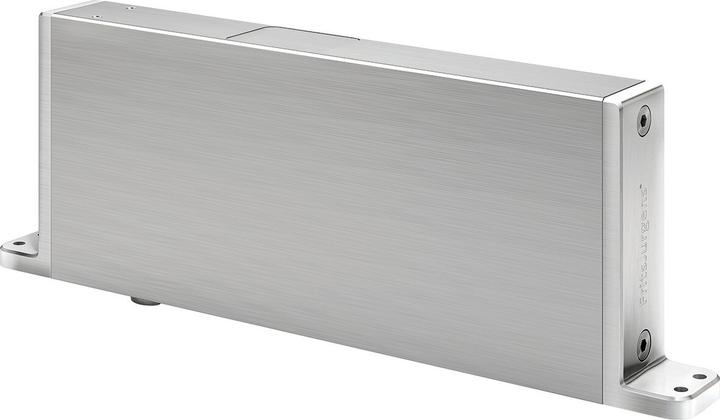

7. FritsJurgens Pivot-Türbänder Sys. M32/ A, 70mm
The M32 pivot hinge system from FritsJurgens is an innovative solution for swing and hinged doors. It features an invisible design, with the upper and lower pivot hinges recessed into the door. This system is maintenance-free and suitable for door thicknesses starting from 40 mm. It can be easily installed retroactively without the need for structural modifications and is also compatible with underfloor heating. The integrated functions and adjustment options ensure controlled door movement. With the Damper Control, the system offers adjustable closing damping as well as hydraulic opening damping, ensuring a smooth and fluid door movement. Additionally, the system is self-closing and allows for hold-open positions at 0°, 90°, and -90°, which individually determines the spatial effect of the door. The M system is suitable for nearly any type of pivot door and has been tested for a lifespan of 1,000,000 door cycles.
- Invisible installation for an aesthetic design
- Maintenance-free moving parts for durability
- Adjustable closing and opening damping
- Self-closing with hold-open positions.
8. FritsJurgens Pivot-T+AMMAvA-rb+AMMApA-nder One / G 70mm, ES matt
The new System One is only 18 mm high, making it significantly flatter than the previous model. Despite the new, sleeker design, the hinge can still be used for doors weighing up to 500 kg. It can be installed with a pivot point starting from 70 mm. For swing and pivot doors, the upper and lower pivot hinges are invisibly milled into the door, featuring maintenance-free moving parts, suitable for door thicknesses of 40 mm and can be retrofitted as it requires no structural modifications, making it compatible with underfloor heating.
Compact
System One functions as a single pivot point without fixed positions or automatic closing mechanisms. It is a simple, small, yet versatile pivot hinge.
Free-swinging
Thanks to the simplicity of System One, free-swinging pivot doors can be easily combined with door frames.
For hinged and pivot doors
Due to the free rotational movement of System One, this pivot hinge can be used in pivot doors with and without stops.
The maximum door height depends on the door material and maximum door weight. The doors have been tested for 1,000,000 door cycles.
9. FritsJurgens Zapfenbänder TP-40-B -150kg Zapfen Ø 10m
The TP-40-B pivot hinge from FritsJurgens is an innovative solution for door systems that combines functionality and aesthetics. This hinge is made of high-quality, stainless steel A2 and offers a maximum load capacity of up to 150 kilograms. The fixed pivot point of 40 mm allows for optimal space utilization by positioning it close to the door side. This maximizes the clear opening, which is particularly advantageous in tight spaces. When opened, the pivot door system is minimally visible, making it ideal for applications where standard door width must be maintained. Additionally, the pivot hinge meets ADA requirements, making it a barrier-free solution.
- Stainless steel A2 for durability
- Maximum load capacity of 150 kg
- Optimal space utilization through fixed pivot point
- ADA compliant for barrier-free applications.
10. FritsJurgens Zapfenbänder TP-70-G Türgewicht 150-500k
The TP-70-G pivot hinge from FritsJurgens is an innovative solution for pivot doors that combines functionality and aesthetics. With a maximum load capacity of 500 kilograms, this top pivot hinge provides robust support for heavy doors. Its special design allows for flexible installation in any position from 70 mm to the center of the door, minimizing unused space. Additionally, the integrated cable management ensures a clean and tidy installation. The hinge is made of stainless steel A2 and features a brushed finish that is not only durable but also offers an appealing look. This product is ideal for modern interiors where design and functionality go hand in hand.
- Maximum load capacity of 500 kg for heavy doors
- Flexible installation from 70 mm to the center of the door
- Integrated cable management for a clean installation
- Made of stainless steel A2.
