Cable joints
−7%
EUR16,80 was EUR18,12

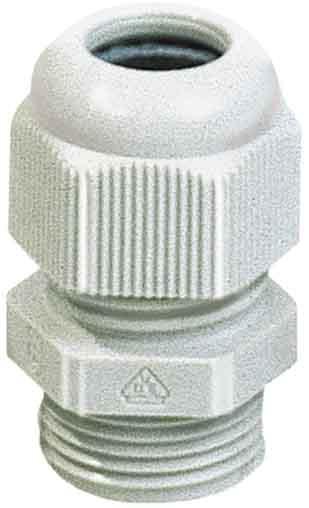

Jacob Cable gland Perfect PG21, cable Ø 13-18 mm IP68, UL polyamide, light grey RAL 7035
Best Jacob products in the Cable joints category
On this page you'll find a ranking of the best Jacob products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Jacob Cable gland Perfect PG21, cable Ø 13-18 mm IP68, UL polyamide, light grey RAL 7035
The Perfect PG21 cable gland from Jacob is a high-quality solution for the safe and reliable connection of cables with a diameter of 13 to 18 mm. Made from robust polyamide (PA) in light gray color (RAL 7035), this cable gland offers a high protection rating of IP68, making it ideal for use in demanding environments. The design ensures effective strain relief and protects the cables from mechanical influences. With a thread pitch of 1.5 mm and a thread length of 11 mm, installation is simple and user-friendly. This cable gland is not only impact-resistant but also suitable for temperatures ranging from -20 to 100 °C, highlighting its versatility. The use of halogen-free material also provides additional safety in critical applications.
- High protection rating IP68 for use in damp environments
- Integrated strain relief for added safety
- Suitable for cable diameters of 13 to 18 mm
- Temperature resistant from -20 to 100 °C
- Made from halogen-free polyamide (PA).
2. Jacob MS cable gland
The Jacob MS cable gland is a high-quality solution for the secure and reliable connection of cables. It is specifically designed for use in demanding environments and offers an IP68 protection rating, ensuring comprehensive protection against the ingress of water and dust. This cable gland is made of nickel-plated brass, which not only provides high corrosion resistance but also guarantees a long service life. With a metric thread of M12x1.5 and a thread length of 5 mm, it is easy to install and features an integrated strain relief that offers additional safety for the cable connection. The operating temperature ranges from -20 °C to +100 °C, making it versatile for various applications. The MS cable gland is ideal for applications where a robust and reliable connection is required.
- IP68 protection rating for optimal protection against water and dust
- Integrated strain relief for additional safety
- Made of nickel-plated brass for high corrosion resistance
- Operating temperature from -20 °C to +100 °C
- Metric thread M12x1.5 for easy installation.
3. Jacob Blindprop PG21 med o-ring IP65 brass
Jacob MS screw plug 1021 M/G Manufacturer :Jacob Designation :MS screw plug O-ring 21 Type :1021 M/G Thread type :PG Nominal thread size metric/PG :21 Thread pitch :1.5 mm Material :Metal Material grade :Brass Surface protection :Nickel-plated Halogen-free :yes Glass fibre reinforced :no Impact resistant :yes Colour :nickel colours Explosion-proof version :no For Ex-zone gas :without For Ex-zone dust :without Jacob MS screw plug 1021 M/G: further details for secure closure of an unused threaded or through hole , round, accessories Pg brass , EAN: 4024092035098.
4. Jacob Stuffing box gland Perfect M20x1,5 with reduced span and long threaded cable Ø 5-9 mm I
Cable joints
−13%
EUR20,90 was EUR23,90
Jacob Stuffing box gland Perfect M20x1,5 with reduced span and long threaded cable Ø 5-9 mm I
5. Jacob Cable gland
The Jacob cable gland is a high-quality solution for the safe and reliable connection of cables. It is made from polyamide (PA66) and offers excellent resistance to various environmental influences. With an IP68 protection rating, this cable gland is waterproof, making it ideal for use in demanding applications where high sealing is required. The design allows for easy installation and features an integrated strain relief that further secures the cable connection. The cable gland is suitable for cable diameters ranging from 15 to 21 mm and can be used in a temperature range of -20 °C to +100 °C. These characteristics make the Jacob cable gland a reliable choice for various industrial applications.
- IP68 protection rating for waterproof applications
- Integrated strain relief for additional safety
- Easy installation due to user-friendly design
- Temperature resistant from -20 °C to +100 °C
- Made from halogen-free polyamide (PA66).
6. Jacob Forskruning Exe II M16x1,5 kabel Ø 5,5-10 mm IP66 polyamid blå RAL 5015
Jacob Ex cable gland GHG9601955R0102 Manufacturer :Jacob Designation :Ex cable gland Type :GHG9601955R0102 Thread type :metric Nominal thread size metric/PG :16 Thread pitch :1.5 mm Thread length :8 mm Width across flats :20 mm Suitable for cable diameter :5.5...10 mm Material :plastic Material grade :polyamide (PA) Surface protection :untreated Halogen-free :yes Glass fibre reinforced :no Protection class (IP) :IP66 Impact resistant :no Colour :sky blue RAL number :5015 Bending protection :no With locknut :no Engaging in opening :no Design :straight Multiple sealing insert :yes Flat cable gland :no With strain relief :yes Type of seal :Sealing ring Separable gland :no Application temperature :-20..70 °C Explosion-proof version :yes For Ex-zone gas :1, 2 For Ex-zone dust :21, 22 For armoured cables :no EMC version :no Shielded :no Jacob Ex-cable gland GHG9601955R0102: further details Ex-cable gland made of polymide PA6, dust protection washer: polyethylene PE-LD, colour: white, large sealing and clamping range, protection class: IP66 colour: sky blue (RAL 5015) , EAN: 4024092194283.
7. Jacob Cable gland Perfect PG7, cable Ø 3-6.5 mm IP68, UL polyamide, light grey RAL 7035
The Perfect PG7 cable gland from Jacob is a high-quality solution for the safe and reliable connection of cables with a diameter of 3 to 6.5 mm. Made from robust polyamide (PA), this gland offers excellent resistance to environmental influences and mechanical stress. With an IP68 protection rating, it is ideal for applications where high sealing against water and dust is required. The installation is straightforward and user-friendly, making it easy to set up in various environments. The cable gland is suitable for temperatures ranging from -20 to 100 °C, ensuring reliable performance in different climatic conditions. This straight design is not only functional but also durable, providing a secure solution for cable connections.
- IP68 protection rating for maximum sealing against water and dust
- Made from halogen-free polyamide (PA) for enhanced safety
- Suitable for cable diameters of 3 to 6.5 mm
- Temperature resistant from -20 to 100 °C for versatile applications.
Cable joints
EUR16,98
Jacob Cable gland Perfect PG7, cable Ø 3-6.5 mm IP68, UL polyamide, light grey RAL 7035
8. Jacob Forskruning EMC/D Perfect M16x1,5 cable Ø 5-9 mm IP68, UL brass
IP68, nickel-plated brass, neoprene seal, nitrile rubber O-ring, shield fixed to contact spring, -20 °C to +100 °C.
9. Jacob Strangle nipple w. thread M25 125 MG
The M25 125 MG threaded strain relief from Jacob is a high-quality plug-in clamp designed for various installation applications. Made from polyethylene (PE-LLD), this product provides a reliable connection and is suitable for use in environments without special requirements. With an IP54 protection rating, the strain relief is protected against dust and splashes, making it ideal for use in different climatic conditions. The temperature range of -30 °C to +90 °C ensures high flexibility and usability in various applications. The version with a hole allows for easy installation and handling, while the metric connection thread according to EN 60423 ensures a precise connection. The strain relief is available in a light gray color (RAL7035), making it unobtrusive and adaptable in various installation environments.
- Made from polyethylene (PE-LLD) for high durability
- IP54 protection rating for dust and splash protection
- Temperature range of -30 °C to +90 °C
- Metric connection thread according to EN 60423 for precise connections.
10. Jacob Screw connection
The Jacob cable gland PERFECT plus K102-1020-00-EX is a high-quality cable gland specifically designed for use in explosion-hazardous areas. It provides a reliable connection for cables with a diameter of 8 to 13 mm and is suitable for use in Ex zones of groups II 2 G (1, 2) and II 2 D (21, 22). Made from nickel-plated brass, this gland ensures high resistance to environmental influences and mechanical stress. With an IP68 protection rating, it is dust-tight and can also be used for temporary immersion in water. The gland is designed for temperatures ranging from -40 to 85 °C, offering a wide range of applications in various industrial settings. The use of a nitrile rubber O-ring ensures effective sealing and strain relief, enhancing the durability and safety of the connection.
- Suitable for explosion-hazardous areas (Ex zones)
- IP68 protection rating for high sealing performance
- Temperature range from -40 to 85 °C
- Made from nickel-plated brass for corrosion resistance
- Includes nitrile rubber O-ring for effective sealing.
