Best CellPack products in the Cable joints category
On this page you'll find a ranking of the best CellPack products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. CellPack Connecting sleeve
Cellpack connecting sleeve SMH4/6-25
Manufacturer: Cellpack
Designation: Connecting sleeve 4x6-4x25 mm², 1 kV
Type: SMH4/6-25
Rated voltage U0/U (Um): 0.6/1 (1.2) kV
Design: Heat shrink
Material of insulation: Plastic
For connecting paper-insulated cables with plastic-insulated cables: No
Number of conductors: 4
With protective conductor: Yes
Conductor cross-section: 6-25 mm²
Mining approval: No
With concentric shielding: No
Suitable for: N(A)YY
Connecting accessories supplied: Without
Halogen-free: Yes
Cellpack connecting sleeve SMH4/6-25: More details
Heat shrink connecting sleeve universally usable for connecting plastic cables and conductors with insulation made of PVC, PE, and XLPE. Suitable for compression connectors on aluminum and copper cables.
Fields of application: Indoor, outdoor, underground, water, installation ducts, empty conduits.
Characteristics: Compact dimensions, large conductor and cable cross-section range, resistant to chemical influences, resistant to alkaline earths, stabilized against UV rays, free of paint wetting impairment substances, halogen-free, transversely waterproof, high electrical insulation values, high mechanical strength.
Scope of delivery: Outer sleeve, inner sleeve, cleaning cloth, emery cloth, installation instructions.
EAN: 4010311000268.
2. CellPack Connecting sleeve 4x185 M5 124299
Cast resin straight-through joint for polymeric cables and conductors, control cables and signal cables. Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE, XLPE, and EPR (e.g. N(A)YY, NYM, TT). Suitable for compression or screw connectors on copper and aluminium conductors.

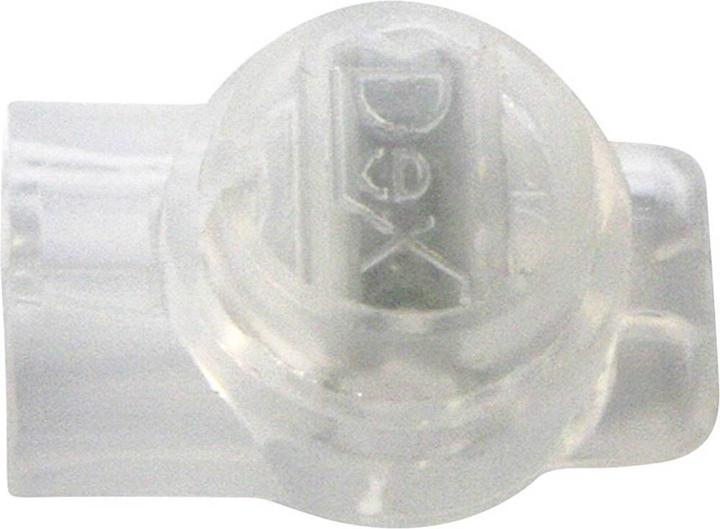

3. CellPack Single wire connector
These are characterized by space-saving, easy-to-install designs in telecommunications splices, whether in shrink or mechanical versions, as well as in modern building system technology (speech, telephone, and monitoring systems). Stripping, connecting, and insulating are done in one operation. The connectors meet the requirements of DIN 47 627. Solder-free wire connections in splices for telecommunications cables. A suitable parallel crimping tool or equivalent tool must be used for form-fitting crimping of the wire connectors.

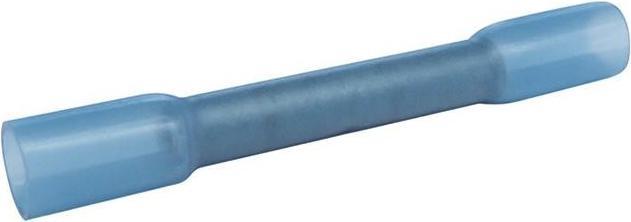

4. CellPack Heat shrink crimp.
The CellPack heat-shrink crimp connector is a reliable solution for connecting cables in demanding applications. These connectors are specifically designed for extreme conditions and provide a durable connection that withstands difficult circumstances. The integrated hot glue ensures that the connection point is completely sealed, enhancing the longevity and safety of the connection. With a cable cross-section of 5 square millimeters (mm²), these connectors are versatile and suitable for various electrical applications. The package includes 100 pieces, making it an efficient solution for larger projects. The blue coloring allows for easy identification and organization of the components. These heat-shrink crimp connectors are an excellent choice for anyone who values quality and reliability.

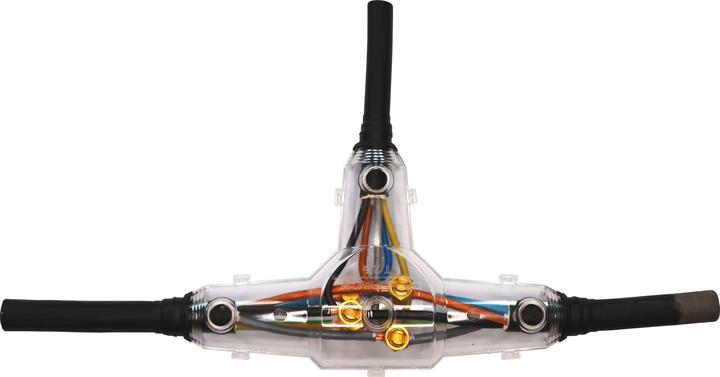

5. CellPack Cable sleeve EASYCELL® 5 Connecting sleeve
The gel is a one-component, shape-stable sealing material based on silicone, which is already filled in impact-resistant form shells. When closing the EASYCELL® gel sleeves, the injected gel protects, insulates, and seals in just one operation. Special tools, such as gas burners, are not necessary for installation. The electrical connection can be put into operation directly.
6. CellPack Connecting sleeve MRO5 to 3x4 or 5X2.5 124508
Cast resin straight-through joint, particularly for small cross sections, for polymeric cables and conductors, control cables, and signal cables. Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE, XLPE, and EPR (e.g. N(A)YY, NYM, TT). Suitable for compression connectors on copper and aluminium conductors.

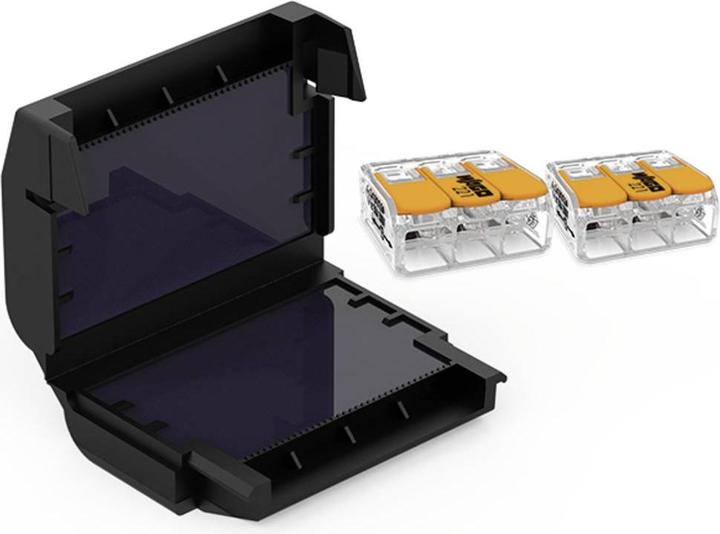

7. CellPack Gel Box 623, IPx8, with Wago Compact terminals
The Gel Box 623 from CellPack is an innovative solution for moisture protection of Wago Compact connection terminals. It offers a reliable and secure way to protect electrical connections from water and other environmental influences. With an IPX8 protection class, the Gel Box is specifically designed for use in demanding environments. The housing is pre-filled with silicone-free gel, ensuring effective sealing and thus increasing the longevity of the electrical connections. Its compact design and easy surface mounting make the Gel Box a practical choice for various applications in the industry. Additionally, the housing is UV-resistant, making it ideal for outdoor use. The Gel Box 623 comes with compatible Wago Compact connection terminals, further simplifying installation.
- Weatherproof housing with an entry for cables
- Pre-filled gel box with silicone-free gel
- UV-resistant housing in a compact design
- Suitable for cable cross-sections up to 6 mm²
- Includes Wago Compact connection terminals type 221-613.
8. CellPack T 2 V FKM
Cellpack T 2 EG V/FKM.
9. CellPack Screw connector
The Cellpack screw connector CSV-T/6-50 is a high-quality solution for connecting aluminum and copper conductors. This screw connector is specifically designed for nominal cross-sections ranging from 6 to 50 mm² and is suitable for both connection and transition sleeves. The use of tinned aluminum and copper ensures a reliable electrical connection and protects against corrosion. The screw connector is equipped with four screws that provide a secure and stable connection. The design allows for a longitudinally tight connection, which is particularly advantageous in demanding environments. The Cellpack screw connector is an essential component for professional installations, offering ease of use and high reliability.
- Suitable for aluminum and copper conductors with nominal cross-sections from 6 to 50 mm²
- Tinned surface for additional corrosion protection
- Longitudinally tight connection for increased safety in demanding applications
- Equipped with four screws for a stable and secure connection.
10. CellPack Connecting sleeve 4x50 M13 124172
The CellPack connection sleeve 4x50 M13 124172 is a high-quality connection clamp specifically designed for the safe and reliable connection of cables. This casting resin connection sleeve offers a robust solution for electrical connections and is ideal for applications where high resistance to environmental influences is required. Manufactured in Germany, the sleeve features a hydrolysis-resistant PUR casting resin coating that provides additional protection. The transparent plastic mold shell allows for easy visual inspection of the connection, while the pre-measured components in a practical two-chamber mixing bag ensure easy handling. This sleeve is suitable for cable cross-sections of up to 50 mm² and provides reliable insulation and connection.
- Hydrolysis-resistant PUR casting resin coating for additional protection
- Transparent plastic mold shell for easy visual inspection
- Pre-measured components in a practical two-chamber mixing bag
- Suitable for cable cross-sections up to 50 mm².
