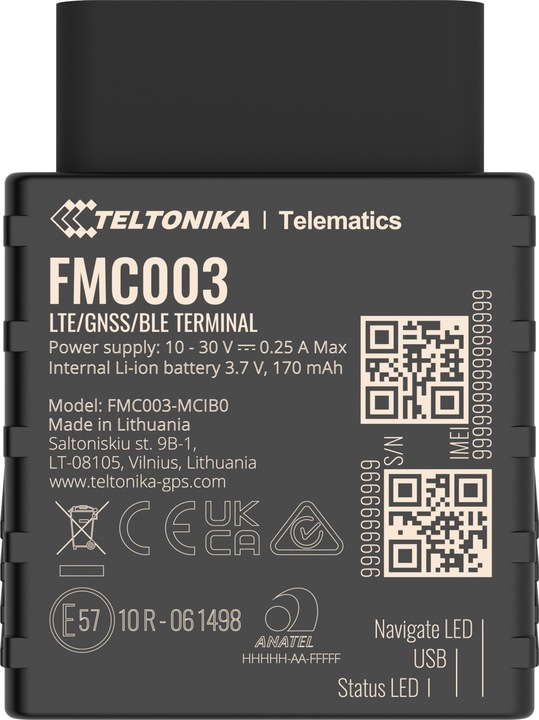

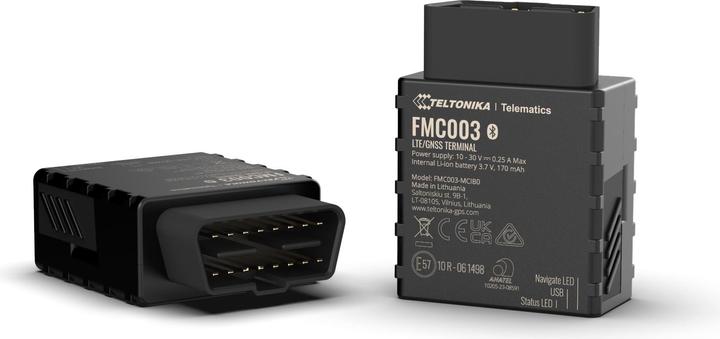

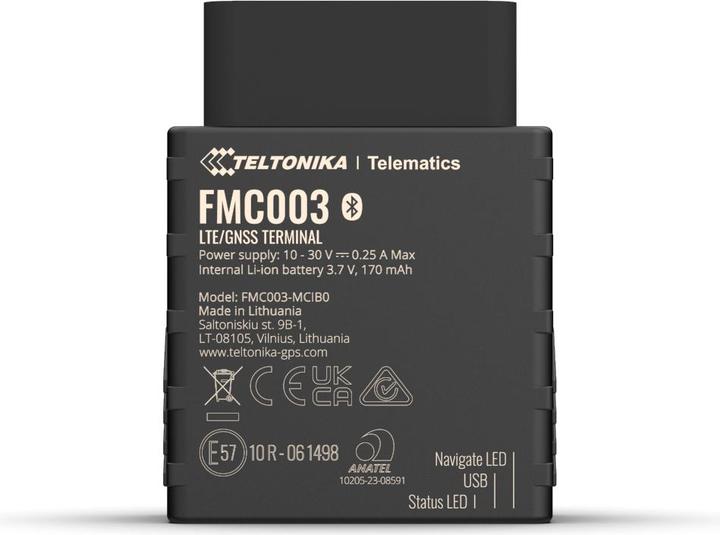

FMC003 - Plug-and-Play Tracker, LTE Cat. 1

The FMC003 is an advanced Plug-and-Play LTE Cat. 1 device for next-generation OBD applications. The main feature of the FMC003 is its ability to read OEM parameters (PIDs) via the OBD port. With this device, you can retrieve real odometer and fuel level data. Additionally, the device comes with a list of supported vehicles and data, so you no longer have to guess; you will know which data you can read from a specific vehicle. It is a perfect tracker for a wide range of use cases, including fleet management of light commercial vehicles, logbooks, insurance telematics (UBI), car rental, leasing, and more.

Module

Name: Teltonika TM2500, MeiG SLM320-E, MeiG SLM320-LA
Technology: LTE (Cat. 1), 2G (GSM/GPRS), GNSS, Bluetooth

GNSS

GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 channels
Tracking sensitivity: -165 dBM
Accuracy: < 2.5 m CEP
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s

Mobile Network

Technology: GSM
2G Bands: GSM: B2/B3/B5/B8
4G Bands: SLM320-E: LTE FDD: B1/B3/B7/B8/B20/B28, LTE TDD: B38/B40/B41; SLM320-LA: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28, LTE TDD: B40
Data transmission: LTE: LTE FDD: Max. 10 Mbps (DL)/max. 5 Mbps (UL), LTE TDD: Max. 8 Mbps (DL)/max. 2 Mbps (UL); GSM: GPRS: Max. 85.6 Kbps (DL)/max. 85.6 Kbps (UL)
Data support: SMS (Text/Data)

Power Supply

Supply voltage range: 10 - 30 V DC with surge protection
Backup battery: 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Bluetooth

Specification: 4.0 + LE
Supported peripherals: Temperature and humidity sensor, Inateck barcode scanner, support for universal BLE sensors

OBD Interface

Data: K-Line, CAN bus data
Reading data: Up to 32 vehicle-side parameters, supported OBD protocols: ISO 9141-2.
