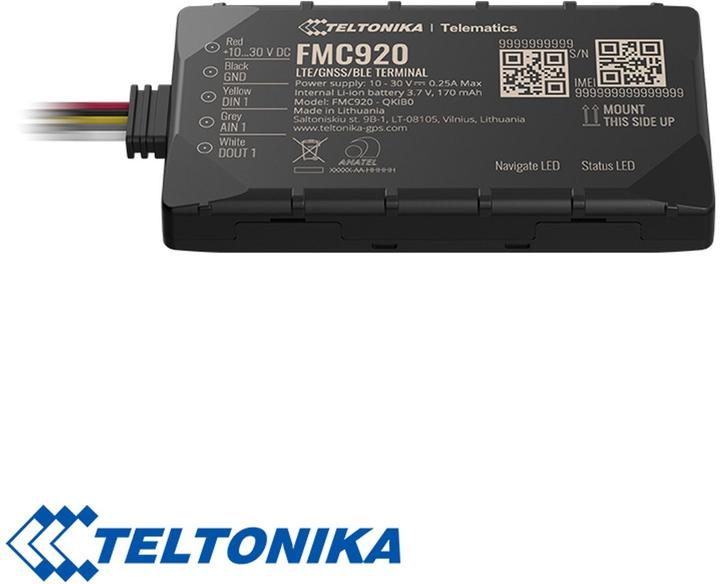

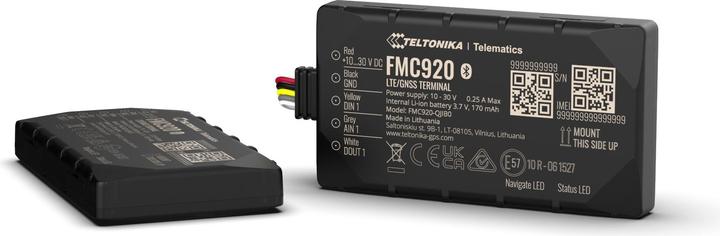

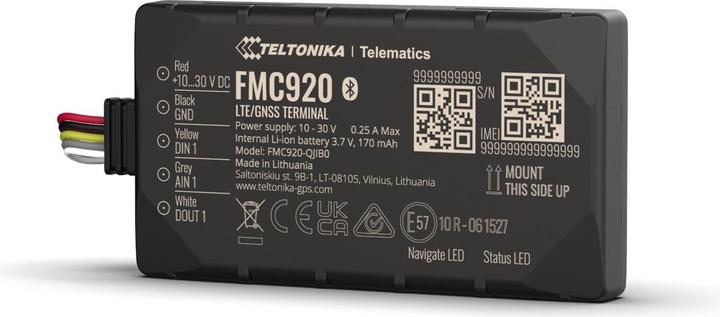

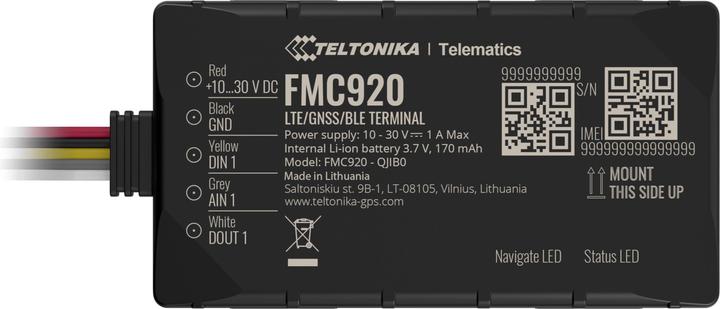

FMC920 - Small and intelligent GPS tracker with 4G Cat. 1 connectivity

The Teltonika FMC920 is a small and intelligent tracker featuring Bluetooth connectivity, high-gain internal GNSS and GSM antennas, as well as an integrated backup battery. The 4G Cat. 1 technology provides significantly higher bandwidth, lower latency, and improved spectrum efficiency.

This model is compact, reliable, accurate, and durable. The available interfaces are more than sufficient for basic location tracking. The digital input can be used to monitor the ignition, door, or alarm button, while the device's digital output can be utilized for remote vehicle stabilization. At the same time, the analog input expands the device's application scenarios to include monitoring of temperature, humidity, liquid levels, and much more.

All of this brings undeniable value to numerous market segments, companies, household economies, and the global economy as a whole. It can be perfectly adapted to any fleet and mode of transport. Extensive experience with the predecessor model FMC920 shows that it is an excellent choice for basic track-and-trace and fleet management tasks.

Module

Name: Quectel EG915U-EU with Teltonika TM2500
Technology: LTE Cat. 1/GSM/GPRS/GNSS/Bluetooth

GNSS

GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 channels
Tracking sensitivity: -165 dBM
Accuracy: < 3 m
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s

Mobile Network

Technology: LTE Cat 1, GSM
2G Bands: GSM: B2/B3/B5/B8
4G Bands LTE FDD: B1/B3/B5/B7/B8/B20/B28
Data transmission LTE: LTE FDD: Max. 10 Mbps (DL)/max. 5 Mbps (UL); GSM: GPRS: Max. 85.6 Kbps (DL)/max. 85.6 Kbps (UL)
Data support: SMS (Text/Data)

Power Supply

Input voltage range: 10 - 30 V DC with...
