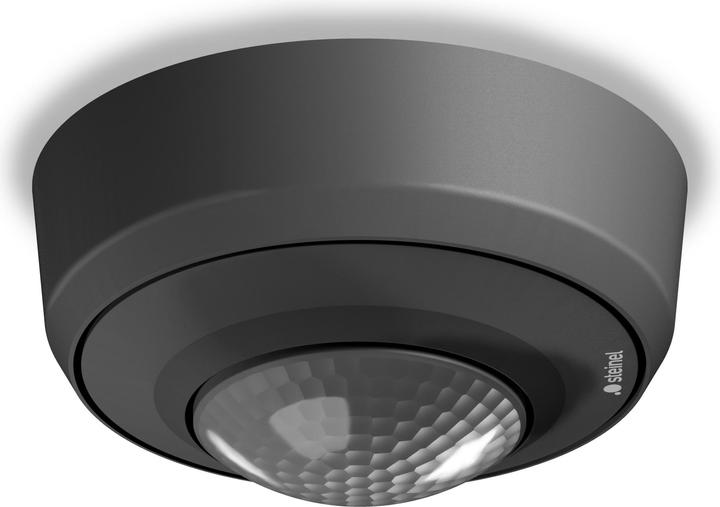

Steinel motion and presence detector PDIR43608DALI2IDAPsw

Manufacturer: Steinel
Designation: Motion and presence detector AP, DALI2
Type: PDIR43608DALI2IDAPsw
Mounting type: Surface-mounted
Material: Plastic
Colour: Black
Optimum mounting height: 2.8 m
Max. range to one side: 4 m
Max. frontal range: 4 m
Detection field diameter on floor: 4.5 m
Horizontal detection angle: 360°
Min. depth of appliance box: 0 mm

The Steinel motion and presence detector PDIR43608 is designed for motion detection, presence detection, and light measurement in offices, meeting rooms, passageways, and more. The 360° IR presence detectors comply with sensNORM standards, making them ideal for sensor-based requirements in commercial buildings.

Features include:

• COM1, KNX, and DALI-2 IPD interface
• DALI-2 IPD for transmission of presence and brightness value information to the DALI bus
• Motion detection range: Ø 8 or Ø 24 m
• Presence detection range: Ø 6 or Ø 7.5 m
• Colour-matching, plug-in cover caps included
• Suitable for flush-mounted, surface-mounted, and ceiling installation
• Setting and operation via DALI bus
• Easy installation with magnetic mounting bracket
• LED feedback for safe commissioning
• Maximum installation height: 4 m
• Power consumption via DALI: 12 mA at 16V input voltage
• DALI-2 certified to IEC 62386
• Available in black or white

EAN: 4007841085773.
