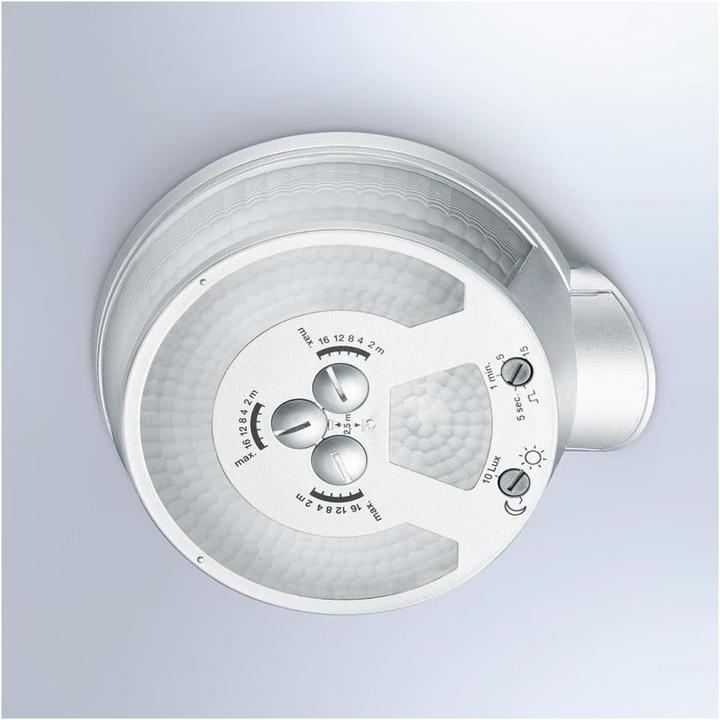

Steinel motion detector sensIQ S AP ANT KNX

Manufacturer: Steinel
Designation: Motion detector KNX
Type: sensIQ S AP ANT KNX
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system powernet: No
Design: Motion detector
Mounting type: Surface-mounted
Suitable for wall mounting: Yes
Material: Plastic
Material quality: Thermoplastic
Surface protection: Other
Color: Anthracite
RAL number (similar): 7016
Transparent: No
With bus coupling: Yes
Subordinate input: Yes
Creeping protection/return field monitoring: Yes
Animal detection: No
Staircase monitoring: No
Adjustable response brightness: Yes
Teach function for response brightness: Yes
Optimal mounting height: 2 m
Max. range to one side: 20 m
Max. frontal range: 20 m
Detection field diameter on floor: 8 m
Vertical detection angle: 180°
Horizontal detection angle: 300°
Number of channels: 2
Min. switch-on duration: 60 s
Max. switch-on duration: 15 min
Width: 114 mm
Height: 74 mm

Steinel motion detector sensIQ S AP ANT KNX: Additional details
The evolution of perfection. The sensIQ S is as flawless as its larger counterpart. Suitable for both outdoor and indoor use, ideal for entrances and loading ramps, with a mounting height of up to 5 m, a 4-fold sensor system for optimal monitoring with a 3x100° detection angle, 20 m range (tangential), and precise range adjustment in 3 independent directions. Remote control and corner wall mount included.
