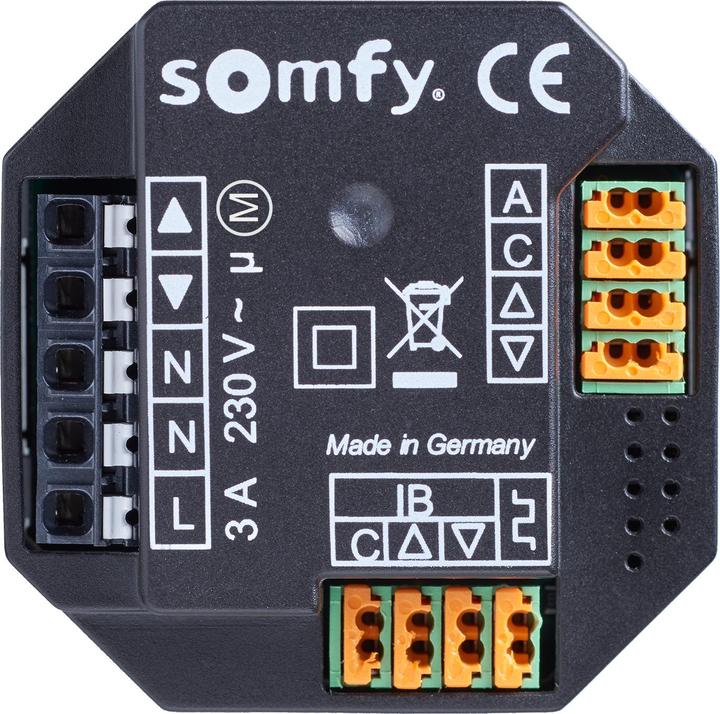

Motor control for motorized roller shutters, curtains, external blinds, and windows. For individual control of a 230 V AC drive via unlatched series push buttons and/or the Somfy animeo IB+ sun protection management system as well as the Somfy New Wired Range. Designed for flush-mounted box installation (IWM).

• Suitable for standard deep boxes for flush mounting
• Minimal housing size according to current installation standards
• Spring clamp terminals for wiring, double terminals for looping for space-saving installation
• Push button design freely selectable. Recommendation: Somfy Smoove Origin IB (Item No. 1 811 272)
• Ready to use upon delivery with the option to select various operating modes
• Intelligent switching between manual and automatic mode
• Energy-saving: less than 0.5 W power consumption in standby

Power supply: 230 V / 50 Hz
Standby current (IEC 62301): less than 0.3 mA
230 V AC standby power (IEC 62301): less than 0.5 W
230 V AC voltage of group input: SELV, 16 V DC
Voltage of local push button inputs: SELV, 16 V DC
Relay: micro-gap
Micro connection: spring clamp terminals
Drive runtime (relay switching time): Max. 3 minutes
Operating temperature: 0 °C to 50 °C
Relative humidity: max. 85 % (non-condensing) at 30 °C air temperature
Protection class: II
Protection type: IP 20
Dimensions (W x H x D): 50 x 50 x 25 mm.
