Schneider Electric BP circuit breaker
Product details

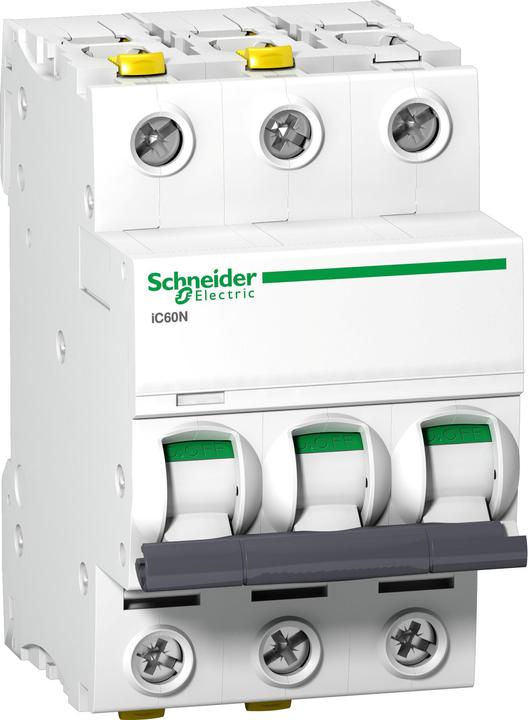

Acti 9 iC60N circuit breaker, 6kA (IEC/EN 60898-1), 10kA (IEC/EN 60947-2). 3-pole, rated current 50A, B-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar at the top and bottom of the device. Jump switching for low-wear contact operation. Moving insulation cover. Activation of the DIN rail mounting element on the front side of the device for tool-free installation and easy accessibility for the user. With mechanical front-side fault indication (VisiTrip) to display tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free safety on the outgoing side. Terminals IP20, moving insulation cover. Double connection terminal from above or below. Easy removal of the individual device when the phase busbar is installed, thanks to the front-accessible mounting element. Tripping unit technology - thermomagnetic. Compatible with the residual current devices of the Acti 9 iID series as well as the Vigi iC60 residual current block. Additional snap-on auxiliary modules (optional) - display of switching status, fault tripping, operating current tripping, undervoltage tripping, overvoltage tripping. Color shade RAL 9003. The iC60N circuit breaker complies with the following standards - IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified.
Circuit breaker type | Miniature circuit breaker |
Mounting type | Flush-mounted |
Width | 54 mm |
Length | 78.50 mm |
number of poles | 3 |
Item number | 12898186 |
Manufacturer | Schneider Electric |
Category | Residual-current device |
Manufacturer no. | A9F03350 |
Release date | 12/3/2020 |
External links |
Colour | Grey |
Exact colour description | Grey |
Circuit breaker type | Miniature circuit breaker |
Mounting type | Flush-mounted |
number of poles | 3 |
Tripping characteristic | B |
Rated voltage | 400 V |
voltage type | AC/DC |
Rated insulation voltage Ui | 500 V |
Protection type (IP code) | IP20 |
Country of origin | Bulgaria, France |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Length | 78.50 mm |
Width | 54 mm |
Height | 91 mm |
Weight | 375 g |
