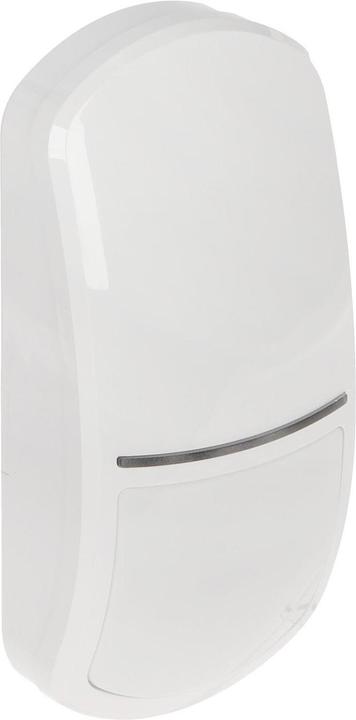

A wireless motion detector designed to detect moving intruders within the boundaries of a protected system. The MPD-310-PET is resistant to animals, providing protection even when small pets move around. It is ideal for monitoring small objects such as kiosks, summer houses, shops, individual garages, and workshops, especially in locations where wired installation is difficult or impossible.

The device is compatible with alarm centers PERFECTA (models WRL), controller VERSA-MCU, controller MTX-300, and alarm module MICRA (software version 2.02 or later). The lithium battery powers the device, ensuring long-lasting operation without replacement, making it as worry-free as traditional wired solutions.

Key specifications include:

• Frequency range: 433.05 to 434.79 MHz
• Radio communication distance (open area):
• ≤ 600 m @ PERFECTA
• ≤ 500 m @ VERSA-MCU / MTX-300 / MICRA
• ≤ 250 m @ MRU-300

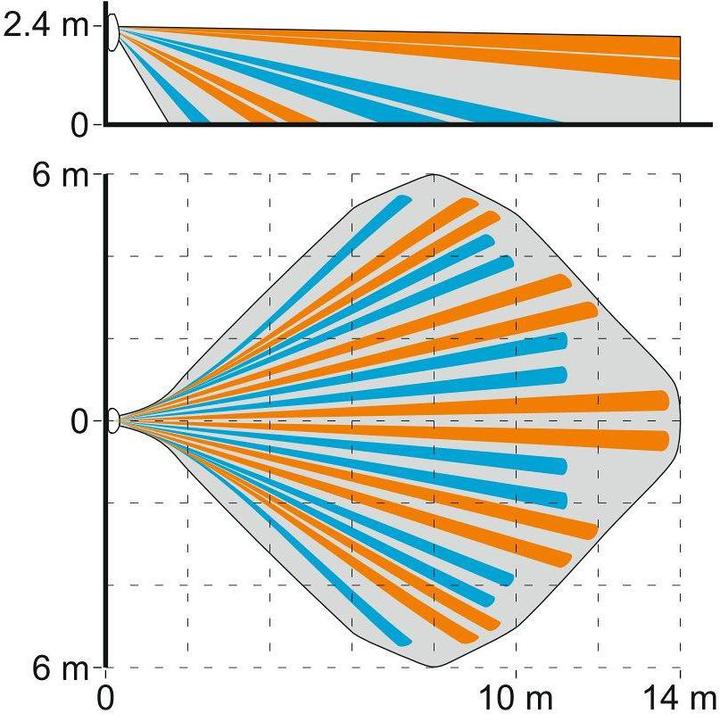

• Detection angle / detection distance:
• 84° / 14 m x 12 m - high sensitivity
• 58° / 9.8 m x 6 m - normal sensitivity
• Animal resistance: ≤ 20 kg

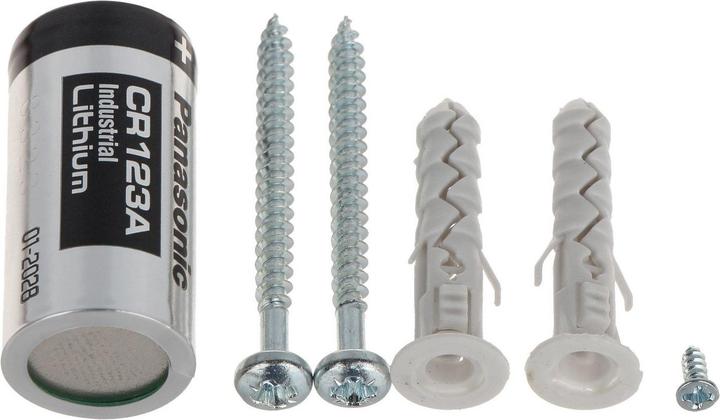

• Power supply: CR123A 3 V (included)
• Battery life: approximately 3 years
• Recommended installation height: 2.4 m
• Degree of protection: Grade 2
• Environment class: II

Key features include a digital detection algorithm with temperature compensation, high resistance to false alarms, and adjustable sensitivity for optimal detector parameters. The device also has an LED diode signaling housing opening and a peel-off power management system for long-lasting operation without replacing the lithium battery.

Operating temperature range: -10 °C to 55 °C
Dimensions: 62 x 137 x 42 mm
Weight: 0.12 kg
Manufacturer / Brand: SATEL
Warranty: 2 years
Instruction sheet and datasheet included.
