Color: Beige
Length: 300 mm
Material: PEEK

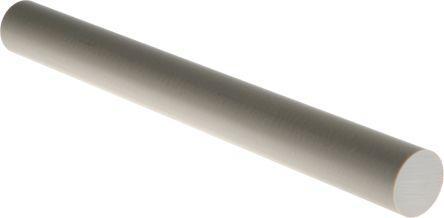

Shape: Rod
Rod diameter: 30 mm
Density: 1.49 g/cm³
Tensile strength: 180 MPa
Flammability class: UL 94 V-0
Operating temperature max: +260°C

Quantity per packaging unit: 1. PEEK GF30 is a 30% glass fiber reinforced material with extremely high dimensional stability and very high thermal and mechanical strength. PEEK GF30 is suitable for the most demanding applications, such as thermal and electrical insulation, connector components, parts with high thermal and mechanical stress, support rings, etc. It has good chemical and radiation resistance, is hydrolysis resistant even under superheated steam, and is very stiff with high creep resistance. It is electrically insulating and manufactured according to DIN 53479, DIN 53765, DIN 53765-D-10, and ASTM-D 1929. Supplied in lengths of 300 mm.
