Crimping Tool = Ratchet
Overall Length = 198 mm

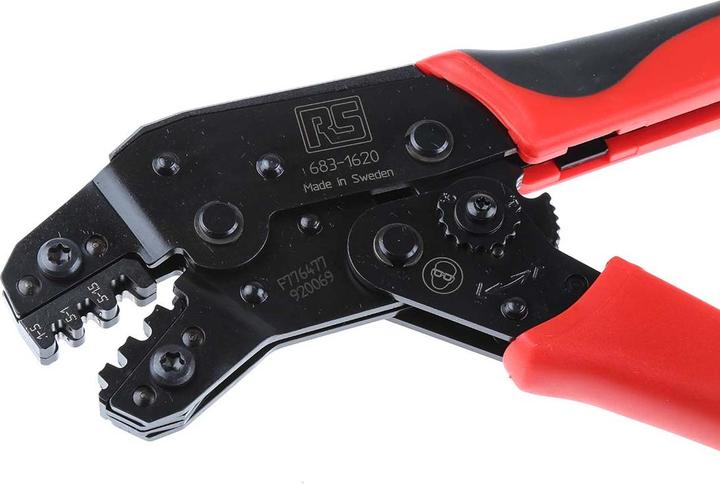

Hand crimping tool for non-insulated crimp terminal connectors with open connection. A series of Original Line hand crimping tools designed for crimping non-insulated, open sleeves. The precision hand crimping tools feature a ratchet mechanism that ensures the complete crimping process is performed with each use. The tools also benefit from a safety release for the forced lock in case of malfunction. These tools, with ergonomic handles and a lifespan of at least 50,000 crimp cycles, are robust and easy to handle. They allow for the production of B/F crimps with minimal effort, suitable for both right-handed and left-handed users. All models are highly reliable and of excellent quality.

Features and Benefits:

• Non-slip main handle and movable handle with low friction provide a comfortable grip.
• Offers two-handed operation in the final phase of the crimping process for increased comfort and productivity.
• Release lock for consistent, reliable crimping operations.
• Forced lock release to remove failed crimp points and obstacles.
• Precise off-center adjustment for consistent performance and calibration options.
• Each tool has a unique serial number for traceability.
• Durable: lifespan of over 50,000 cycles.
• High strength, made from Swedish through-hardened steel alloy.

Part number 683-1620 for crimping in the range of 0.1 mm² to 1.5 mm².
Part number 683-1611 for crimping in the range of 0.5 mm² to 6.0 mm².
