PCE Instruments Installation display

Price in EUR including VAT
Delivered between Mon, 11/5 and Wed, 20/5
1 item ordered
free shipping

Product details

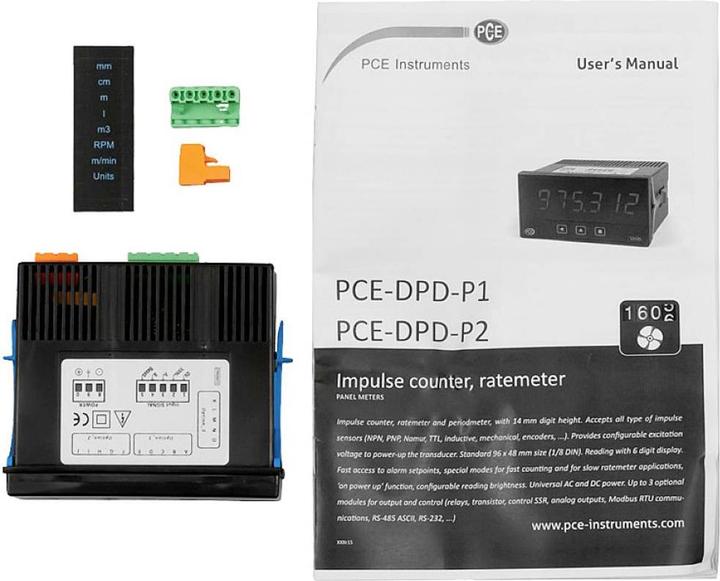

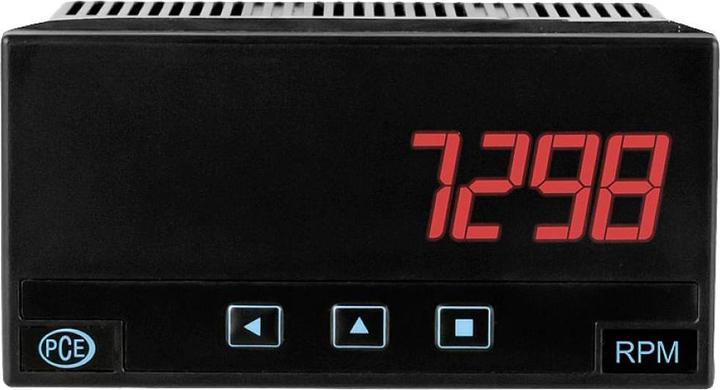

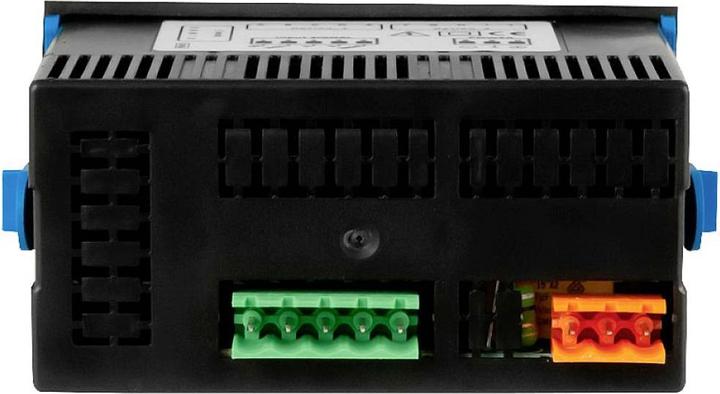

Built-in display with two tachometer inputs, reset input, 6-digit LED display, and 14 mm digit height. The built-in display features two pulse inputs (NPN/PNP) and a reset input. The 6-digit LED display shows measurement values between -199,999 and 999,999. The display can be adjusted using the three front buttons, and the input can be individually scaled. The built-in display can evaluate NPN, PNP, and Namur sensors as well as encoders and proximity sensors, making it suitable for piece counting, speed measurements, and more due to its adjustable settings. The industrial counter has dimensions of 96 x 48 mm. The built-in display offers multiple counting modes (addition, subtraction, blocking, quadrature). Up to three different output cards can be optionally installed in the industrial counter at the back.

Key specifications

Mounting type
Built-in installation
Nominal voltage
265 V

General information

Item number
60090767
Manufacturer
PCE Instruments
Category
Energy monitors
Manufacturer no.
PCE-DPD-P1
Release date
13/7/2025

Energy meter property

Mounting type
Built-in installation
Nominal voltage
265 V
Display type
Digital

Safety

Protection type (IP code)
IP65

Origin

Country of origin
Spain

Voluntary climate contribution

CO₂ emissions
0,25 kg
Climate contribution
EUR 0,12

Product dimensions

Height
91 mm
Length
96 mm
Width
48 mm
