Niedax bend 90° RESC 60.300 S
Manufacturer: Niedax
Designation: Bend 90°

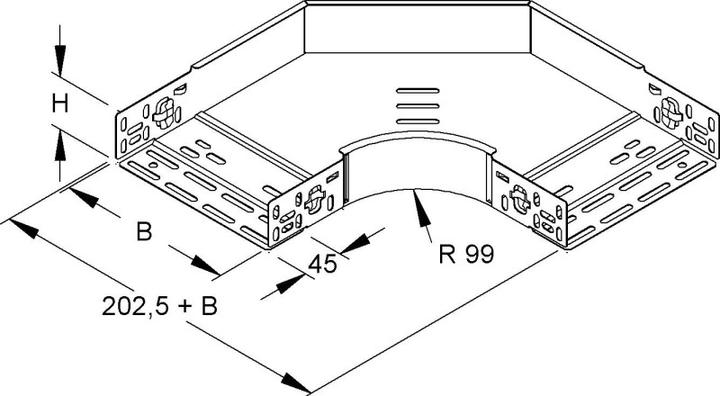

Dimensions: 60 x 302 mm
Type: RESC 60.300 S
Change of direction: Horizontal
Angle: 90°
Design: Bend rigid
Bend design: Smooth bend
With top part: No
Inside radius: 99 mm
Cable tray height: 60 mm
Cable tray width: 302 mm
Material thickness: 0.9 mm
Side perforation: No
Mounting hole in base: Yes
NATO hole pattern: No
Design: Integrated connector
Wide-span design: No
Suitable for functional integrity: Yes
Material: Steel
Stainless steel, pickled: No
Material grade: Other
Surface protection: Strip galvanised

Further details: 90° bend for cable trays, pluggable with CITO cable tray RLVC..., for creating horizontal 90° corner connections, with locking loops, additional connector holes, integrated butt joint connector, and proportional fixing accessories. Please observe the additional instructions for use in functional integrity!

Suitable for: CITO cable tray RLVC... and cable trays with 60 mm edge height.
Dimensions (approx.) H x W (clear inside dimensions): 60 x 302 mm
Inner rail radius R: 99 mm
Material: Steel, strip galvanised to DIN EN 10346
EAN: 4013339092154.
