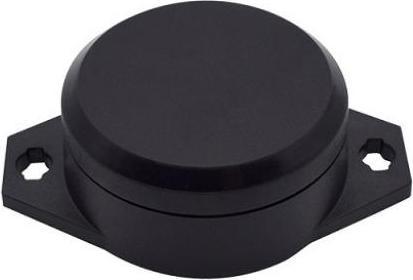

MINEW E9 Dear Beacon

The Dear Beacon E9 is a next-generation beacon that features a Bluetooth 5.0 hardware platform and MiniBeacon Plus intelligent software. The E9 Dear Beacon has a smart, rotatable mechanical design for a replaceable coin cell battery and a waterproof casing with an IP67 protection rating. Additionally, the E9 Dear Beacon can be mounted using two screws or adhesive tape.

The E9 Dear Beacon simultaneously broadcasts the standard data packets of iBeacon and Eddystone (UID, URL, TLM). Users can also configure the E9 Dear Beacon using the configuration app BeaconSET+.

Features

• IP67 waterproof

• Replaceable coin cell battery 1000 mAh

• Advertising for iBeacon & Eddystone

• Unique MAC address (ITU)

• Bluetooth 5.0 chipset from the nRF52 series

• Max. 100 meters advertising range

• Internal ON/OFF button

• Robust casing and screw mounting

• Casing color: Black

• Battery model: 1x CR2477 3.0 V, 1000 mAh

• Operating voltage: 1.8-3.9 V DC

• Transmission current: 5.3 mA (peak current), tested at 0 dBm transmission power

• Transmission range: Up to 100 meters

• Waterproof rating: IP67 tested at 1 meter water depth

• Antenna: Integrated 50 Ohm PCB antenna

• Size: 49 mm diameter, 66 mm length, 17.5 mm height.
