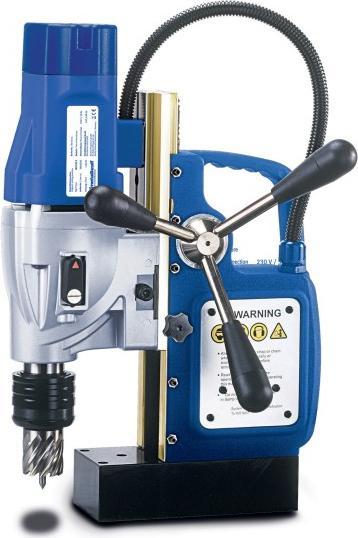

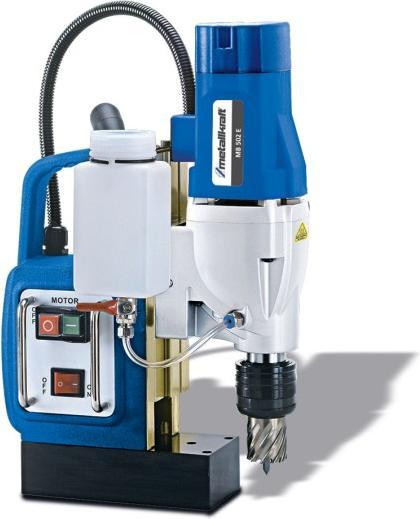

Description for core drill with 19 mm Weldon shank. The device is grounded and double insulated, making it ideal for construction sites. High magnetic holding force. High-quality construction. The coolant is channeled through the drill. Quick-release chuck for easy changing of core drills. Conversion from core drilling to full drilling with just a few hand movements. Safe and reliable operation.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 290 mm
Width/Depth (Product) approx. 270 mm
Height (Product) approx. 355 mm
Weight (Net) approx. 14.8 kg

Chuck:
Spindle chuck fixed
Drill chuck Weldon 3/4"
Speed Range:
Speed(s) under load (Clockwise) 180 / 270 min¯¹

Electrical Data:
Power of drive motor 1.1 kW
Connection voltage 230 V
Mains frequency 50 Hz

Magnet:
Magnetic holding force 17000 N
Magnet base length 180 mm
Magnet base width 90 mm

Core Drill:
Maximum core drill diameter with manual feed 50 mm
Maximum drilling depth for core drilling with manual feed 50 mm

Full Drill:
Maximum drill diameter for full drill with adapter and chuck mounted 13 mm
Maximum drilling depth for full drill with adapter and chuck mounted 140 mm

Expert Information:
Sound pressure level Lp 91.5 dB(A)
Sound power level Lw 102.5 dB(A)
Measurement uncertainty K 3 dB(A)
Vibration 0.4 m/s²

Scope of Delivery:
1 coolant tank and coolant line
1 protective device
Operating tool
Plastic carrying case
1 chain.
