Intercable Tools battery-powered hydraulic press STILO45

Manufacturer: Intercable Tools

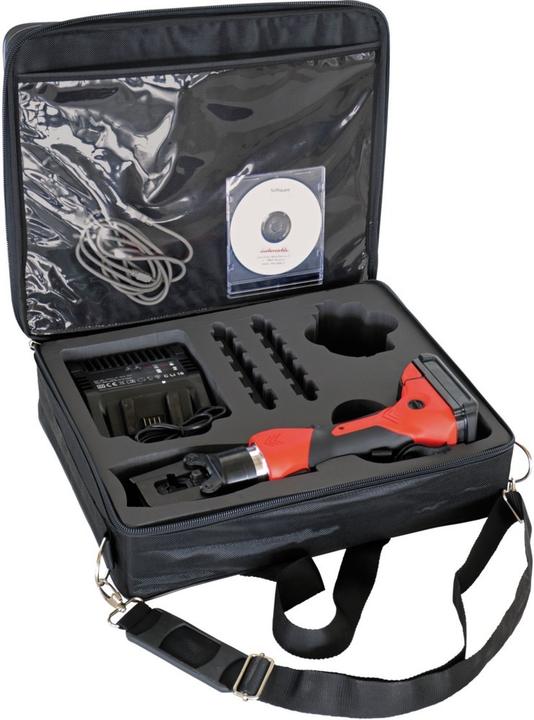

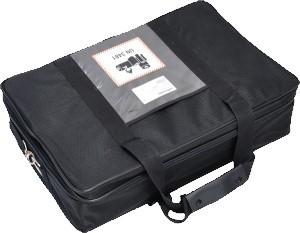

Description: Battery press hydraulic 45 kN with bag
Type: STILO45
Suitable for: Various applications
Crimping shape: Universal (interchangeable inserts)
Cross section: 6 to 150 mm²
Length: 369 mm
Design/operation: Battery-powered hydraulic
Inserts interchangeable: Yes
With automatic return: Yes
Pressing force: 45 kN

Further details: Suitable for crimping aluminum cables and copper cables up to 150 mm². Features fast feed by a three-fold axial piston pump, a hinged crimping head rotatable by 270 degrees, automatic pressure limitation and monitoring with a pressure sensor, soft start and quick stop, motor switch-off, and automatic return after crimping. It includes electronic control and monitoring of the crimping process, manual return, automatic energy-saving mode, and storage of all crimping cycles and error messages in the internal memory. Readout of all cycles and error messages is available via USB.

The controlled motor increases the service life of the gearbox, motor, and rechargeable battery. There are no canceled crimping cycles thanks to continuous monitoring of the remaining battery charge. Integrated service management and software updates are accessible via USB. Fast tool returns are facilitated by high return flow volume. The multifunctional electronics include sleep mode, waiting display, and battery control, along with an integrated intelligent electronics module featuring two multifunction LEDs (three-color LED) and a mini-USB interface for common PC systems.

Specifications:

• Pressing curve and error message output
• Service control
• Li-ion battery 18V 1.5 Ah
• Charge status display on battery
• Max. stroke: 16 mm
• Pressing force: 45 kN
• EAN: 8014212511768.
