HT Instruments Current Clamp HT7005

Manufacturer: HT Instruments
Designation: Current Clamp
Measuring Range: 0.01 A to 400 A AC/DC
Type: HT7005
Display: digital
Analog Bar Display: no
Multiple Display: no
With Screen Backlight: yes
Measurement Value Storage: yes
Measurement Range Selection: automatic
Current Measurement Range/DC: 0.01..400 A
Current Measurement Range/AC: 0.01..400 A
Current Type: AC/DC
True RMS Measurement: yes
Voltage Measurement/AC: no
Voltage Measurement/DC: no
Resistance Measurement Range: no
Temperature Measurement: no
Capacitance Measurement: no
Frequency Measurement: no
Power Measurement: no
Leakage Current Measurement: no
Harmonic Measurement: no
Measurement in Cable with Forward and Return Conductor: no
Clamp Opening: 20 mm
Designed as Adapter for Connection to Multimeter: no
Interface: no
Measurement Circuit Category: CAT III
Max. Voltage Measurement Circuit Category: 600 V
Continuity Testing: no
Protection Class (IP): IP20

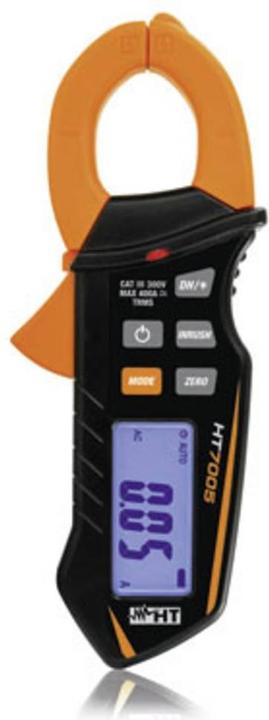

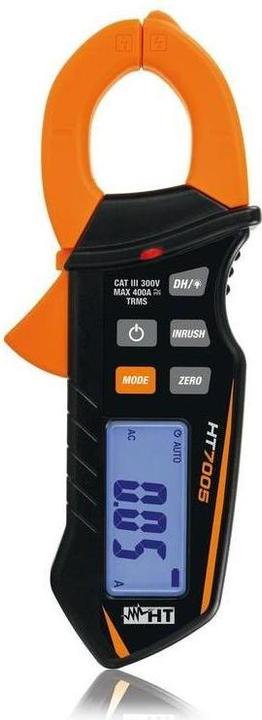

This small, compact current clamp HT7005 is capable of measuring alternating currents up to 400 A AC/DC in the overvoltage category CAT III 300 V and complies with the requirements of IEC/EN61010-1. In addition to the easily readable display with a resolution of 4000 counts, the device is equipped with a battery-saving Auto Power OFF function. Due to its small and very compact dimensions, it offers versatile application possibilities.
