Hewi Rosette set 270XAH01.340 stainless steel oval PZ DIN left / right D/D
Door setOnly 4 pieces in stock at supplier
Product details

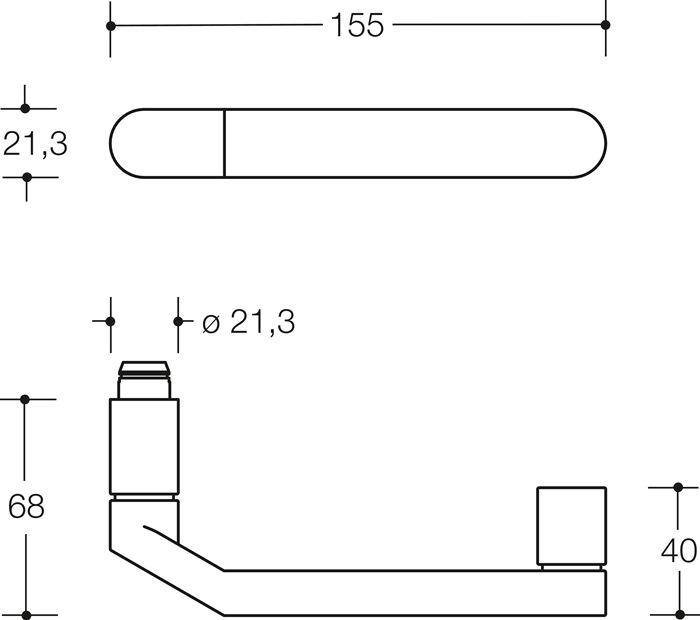

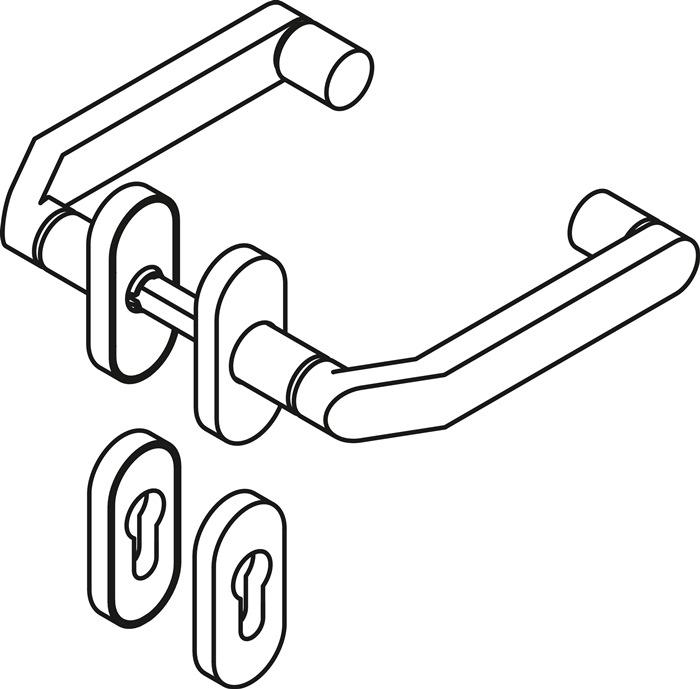

In H-technology with rosettes according to DIN 18255 and DIN EN 1906 made of stainless steel, with a matte brushed surface, consisting of: Door handle model 273X made of stainless steel (1.4301), approach diameter 21.3 mm, with approach guide and locking groove, featuring an M5 threaded pin for additional fixation of the door handle with the square pin for optimal force transmission into the door leaf. The handle meets the guidelines of the Federal Association of Accident Insurance Funds (BUK) - safety distance to the closing edge 25 mm. The handle complies with the requirements of DIN EN 179. Installation is done by simply snapping the door handles into the pre-mounted components on the door. The locking can be released using a disassembly key. Rosettes 315.21X and 316X, substructure 315.21X in plastic-steel composite construction with a black zinc/nickel surface for optimal corrosion protection, integrated high-holding module with spring support, usable for DIN left and DIN right, to support the lock for a longer lifespan. Fixed rotating bearing of the handle with self-locking all-round locking and 5 mm bearing point as a maintenance-free sliding bearing with elastic compensation area to accommodate possible assembly inaccuracies. Rosette cover cap, oval, made of stainless steel (1.4301), diameter 55 mm, 12 mm high, 1.5 mm wall thickness. Designed and tested for the object area, usage category according to DIN EN 1906 - Class 4 set, with square pin 8 mm, for door thickness 38-48 mm, handle length 155 mm, frame door set. Additional technical features: fastening system: H-technology.
Colour | Silver |
Item number | 24931891 |
Manufacturer | Hewi |
Category | Door handle |
Manufacturer no. | 270XAH01.340 |
Release date | 30/3/2023 |
Colour | Silver |
Exact colour description | Matt sanded |
Material group | Metal |
Material | Stainless steel |
Surface finish | Ground |
Application range | Indoor |
Type of set | Door set |
Door thickness | 38 - 48 millimetres |
Square size | 8 mm |
Cylinder design | PZ |
Cylinder Position | Left, Right |
Length | 155 mm |
Wide shield/rosette | 55 mm |
Thickness shield/rosette | 10.50 mm |
Escape route standard | EN 179 / 1125 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | D, Escutcheon set 270XAH01.340 Stainless steel oval PZ DIN left, right D |
Weight | 1150 kg |
