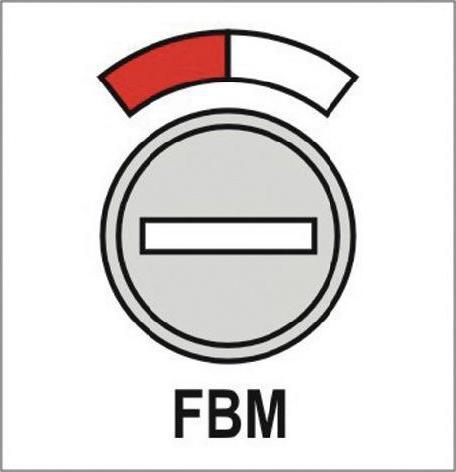

Hewi Free-occupied set 270XAH02.130 Stainless steel round FBM DIN left / right D/D

Door set
Price in EUR including VAT
Delivered between Thu, 21/8 and Tue, 26/8
Only 1 piece in stock at supplier
free shipping

Product details

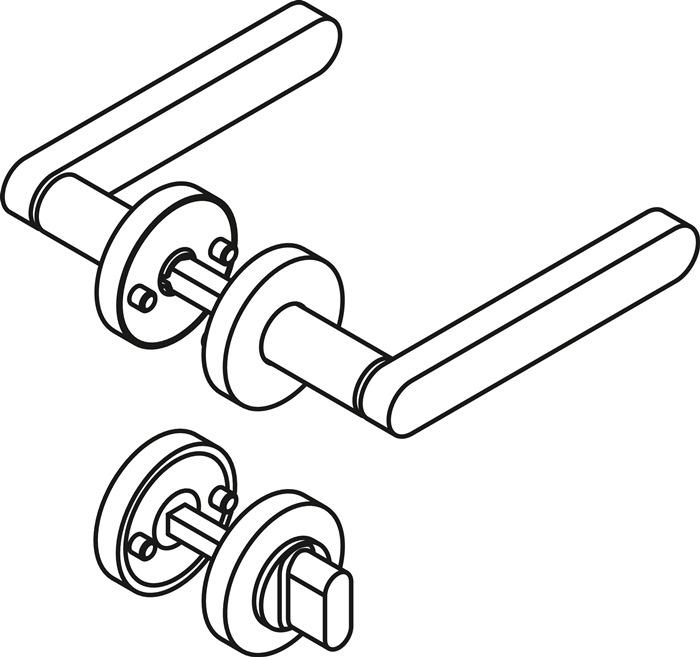

In H-technology with rosettes according to DIN 18255 and DIN EN 1906 made of stainless steel, with a matte brushed surface, consisting of: Door handle model 111X made of stainless steel round tube (1.4301), diameter 21.3 mm with a wall thickness of 1.5 mm, featuring a guiding edge and locking groove, with an M5 threaded pin as additional fixation of the door handle with the square pin for optimal power transmission into the door leaf. The handle meets the requirements of DIN EN 179 and DIN 18040. Installation is done by simply snapping the door handles into the pre-mounted components on the door. The locking mechanism can be released using a disassembly key. Surface is matte brushed. Rosettes 305.21X and 306.23X, substructure 305.21X in plastic-steel composite construction with a black zinc/nickel surface for optimal corrosion protection, integrated hold-up module with spring support, usable for DIN left and DIN right, to support the lock for a longer lifespan. Fixed rotating bearing of the handles with self-locking all-around locking and a 5 mm bearing point as a maintenance-free sliding bearing with elastic compensation area to accommodate possible installation inaccuracies. Concealed, loosening-proof screws with M5 stainless steel screws and sleeve screw combination as well as support pins that dip into the door leaf. WC version with emergency opening using a square spindle or coin and viewing window (indicator red/white) on the outside. Round rosette cover cap made of stainless steel (1.4301), diameter 55 mm, height 10.5 mm, wall thickness 1.5 mm. Designed and tested for the object area, usage category according to DIN EN 1906 - Class 4 set with 8 mm square pin. Usage category: Class 4. Durability: Class 7. Door dimensions: no classification specified. Fire resistance: Class 0. Security: Class 1. Corrosion resistance: Class 4. Burglary protection: Class 0. Type of execution: A. Additional technical features: fastening system: H-technology.

Key specifications

Colour
Silver
Item number
24931890

General information

Manufacturer
Hewi
Category
Door handle
Manufacturer no.
270XAH02.130
Release date
30/3/2023

Colour

Colour
Silver
Exact colour description
Silver

Material

Material group
Metal
Material
Stainless steel
Surface finish
Ground

Application range

Application range
Indoor

Set own shadows

Type of set
Door set
Door thickness
38-43 millimetres
User category
EN 1906 class 4
Square size
8 mm

Cylinder properties

Cylinder design
Toilet lock
Cylinder Position
LeftRight

Handle Properties

Length
145 mm
Diameter
21.30 mm

Shield/Rosette Features

Height shield/rosette
10.50 mm
Wide shield/rosette
55 mm
Thickness shield/rosette
1.50 mm

Escape route standard

Escape route standard
EN 179

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
DFree/occupied set 270XAH02.130 Stainless steel round FBM DIN leftright D

Product dimensions

Weight
1.11 kg
