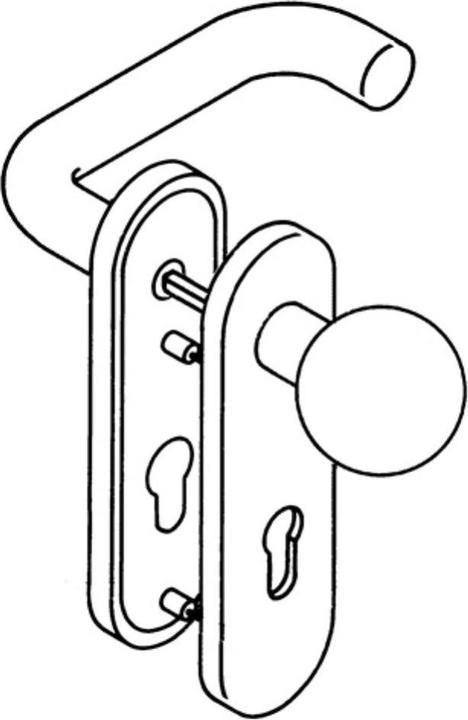

Hewi Fire protection set 111R13.113 plastic 90 D/K for door thickness 38-48 mm PZ rounded DIN left /...

Door handle
Price in EUR including VAT
Delivered between Tue, 29/7 and Thu, 31/7
Only 4 pieces in stock at supplier
free shipping

Product details

In R-technology with signs according to DIN 18255 and DIN EN 1906 made of polyamide, high-gloss surface, consisting of: Button model 123.23R made of polyamide and U-shaped door handle made of polyamide with a continuous steel core extending to the end of the handle, fully colored, diameter 20 mm, with approach guide and locking groove. Installation by simply snapping the door handles into the pre-mounted components on the door. The locking can be released using a disassembly key. The handle meets the requirements of DIN EN 179 and DIN 18040. Sign substructure in plastic-stainless steel composite construction, usable for DIN left and DIN right. Fixed rotating bearing of the handles with automatically engaging all-around locking and 5 mm bearing point as a maintenance-free sliding bearing with elastic compensation area and a second bearing point in the handle neck. Concealed, loosening-proof screw connection with M4 screw and sleeve screw combination as well as support pin. Sign cover cap made of fully colored polyamide, 46 x 180 mm, 13 mm high, curved, 1.5 mm wall thickness. Distance 72 mm, PZ hole pattern, for door thickness 38-48 mm. Designed and tested for the object area, user category according to DIN EN 1906 - Class 4. Fire protection fitting with square pin 9 mm, according to DIN 18273. Handle length 138 mm. Change fitting. Additional technical features: Supplement: D/K, bearing: fixed-rotating-mounted, square: 9 mm.

Key specifications

Colour
Black
Item number
22123575

General information

Manufacturer
Hewi
Category
Door handle
Manufacturer no.
111R13.113 90
Release date
9/9/2022

Colour

Colour
Black
Exact colour description
90 jet black

Material

Material group
Plastic
Material
Plastic
Surface finish
Shiny

Application range

Application range
Indoor

Set own shadows

Type of set
Door handle
Distance
72 mm
Door thickness
38 - 48 millimetres
User category
EN 1906 class 4
Square size
9 mm

Cylinder properties

Cylinder design
PZ
Cylinder Position
LeftRight

Handle Properties

Length
168 mm

Shield/Rosette Features

Thickness shield/rosette
11 mm

Escape route standard

Escape route standard
EN 179

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
Fire protection set 111R13.113 Plastic 90 DK for door thickness 38-48 mm PZ rounded DIN leftRight

Product dimensions

Weight
760 kg

14-day cancellation right
30-day right of return
24 Months statutory warranty
