Hensel PV generator junction box Mi PV 2171

Price in EUR including VAT
was EUR709,–
Ratings
BrandMore from Hensel
Delivered between Sat, 6/6 and Fri, 19/6
free shipping

Product details

Hensel PV generator connection box Mi PV 2171

Manufacturer: Hensel
Designation: PV generator connection box with transformer and switch
Type: Mi PV 2171
Equipment: Other
Shape: Other
Mounting type: Wall/ceiling mounting
Entry from rear: No
Length: 365 mm
Width: 150 mm
Depth: 170 mm
Bayable: No
Type of enclosure lead-through: Other
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Colour: Grey
Protection class (IP): IP65
Cover fixing: Screwed
Sealable: No
Rated insulation voltage Ui: 1000 V
Functional integrity: Without
With shielding: No
Weather-resistant: Yes
Operating temperature: -5 to 40 °C
Explosion-proof version: No
For Ex-zone gas: Without
For Ex-zone dust: Without

Hensel PV generator junction box Mi PV 2171: further details

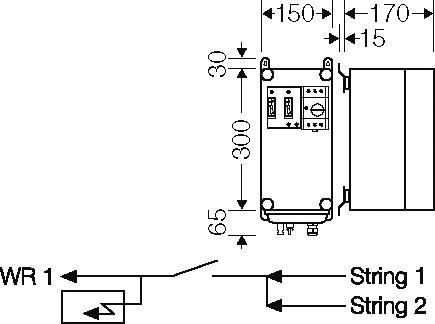

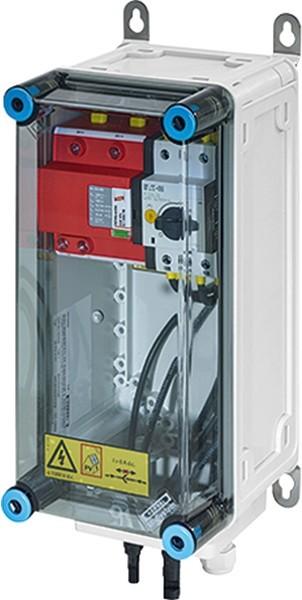

Generator junction box for PV systems up to 1000 V d.c. according to IEC 61439, completely assembled and wired ready for connection. The enclosures are made of high-quality thermoplastic and are insulated to IP 65. PV generator junction boxes are equipped with surge arresters, generator disconnectors, and string fuses as required. They are suitable for protected outdoor installation and UV-resistant. Wall mounting is via stainless steel external brackets. PV generator junction box with DC surge arrester type 1 and 2 and DC generator isolator. 2 x PV string to 1 x inverter input. The plug-in connections are compatible with MC4. Cover locks for tool actuation.

Key specifications

Protection type (IP code)
IP65
Height
170 mm
Width
150 mm
Length
365 mm

General information

Item number
22943192
Manufacturer
Hensel
Category
Junction box
Manufacturer no.
12811000
Release date
18/10/2022

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Plastic

Junction Box Features

mounting style
Adhesive, Duvet
Area of use
Outside

Safety

Protection type (IP code)
IP65

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0,87 kg
Climate contribution
EUR 0,12

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
170 mm
Width
150 mm
Length
365 mm
