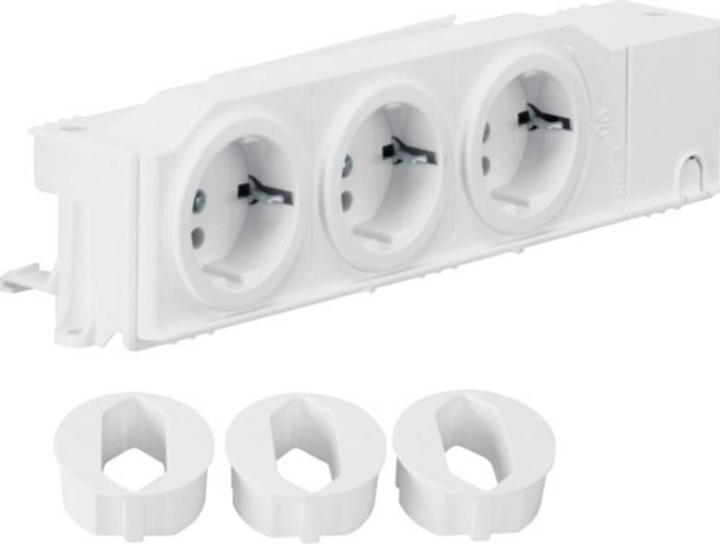

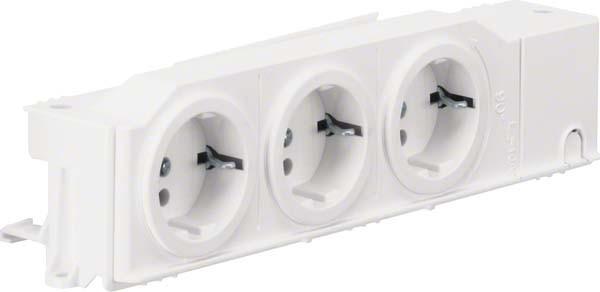

Hager socket outlet VZ00AS

Manufacturer: Hager
Designation: Socket outlet 3-f, 90-degree rotatable
Type: VZ00AS
Rated current: 16 A
With hinged cover: No
Voltage type: Other
Design: Schuko
With increased touch protection: Yes
With indicator light: No
Protection class (IP): IP2X
Number of sockets: 3
Number of active contacts (round): 6
Protective earth contact round: No

Further details: Electrical socket outlet, universal, 3-fold rotatable, screwed, top hat rail mounting. Pre-wired protective contact socket outlet 3-fold with increased contact protection and connection housing for line connection via plug-in terminals 1.5 - 2.5 mm². Three independent socket heads can be rotated by 90°. For quick mounting in distribution cabinets for DIN rail or mounting plates. Euro adapters must be plugged in for protection class II (protective insulation). The socket outlet connection housing can be installed with a type 3 surge protection module (not included).
EAN: 3250616668386.
