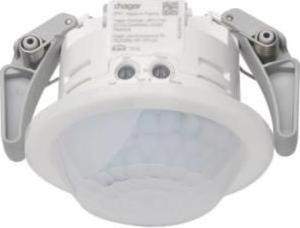

Hager motion detector TXD505
Manufacturer: Hager
Designation: Motion detector corridor KNX 360G
Type: TXD505
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Radio bidirectional: No
Version: Motion detector
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Finish: Glossy
Colour: White
RAL number (similar): 9010
Transparent: No
With bus coupling: No
Extension unit input: No
Creep protection/back field monitoring: No
Operating mode switch: No
Animal track: Yes
Staircase monitoring: No
Response brightness adjustable: No
Teach function for response brightness: No
Self-learning switch-off delay: No
DALI-2 certified: No
Optimum mounting height: 3 m
Max. range to one side: 15 m
Max. range to the other side: 15 m
Range to one side: 15 m
Max. range frontal: 14 m
Detection field diameter on floor: 30 m
Detection angle horizontal: 360°
No. of digital inputs: 1
No. of channels: 5
Switching capacity: 0 W
Min. duty cycle: 5 s
Max. switching time: 480 min.
Max. duty cycle: 480 min
Min. depth of device box: 0 mm
Hager motion detector TXD505: Further details - Motion detector corridor KNX 360°, recessed, detection 30x5m.
