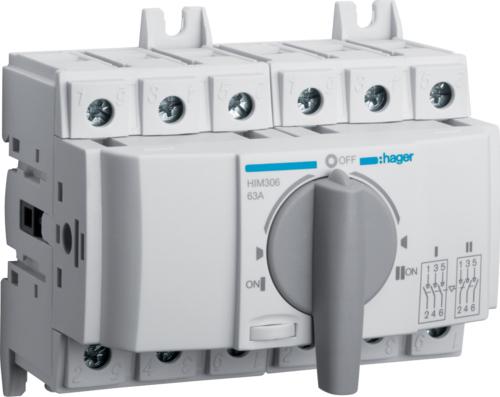

Hager Changeover switch 3x63A HIM306
Switch actuatorMore than 10 pieces in stock at supplier
Product details
The Hager switch HIM306 is a powerful and versatile actuator designed for use in various electrical applications. With a maximum rated operating voltage of 415 V and a rated current of 63 A, this switch is ideal for industrial and commercial installations. It meets the requirements of DIN EN 60947-3 and features a robust design suitable for mounting on DIN rails or mounting plates. The HIM306 can be used as a main switch, maintenance and repair switch, as well as a reversing switch, making it a flexible solution for different switching needs. The IP20 protection rating ensures that the switch is protected against solid foreign objects with a diameter of more than 12.5 mm, enhancing the safety and durability of the device. With a compact design and easy installation, the Hager HIM306 is a reliable choice for demanding electrical systems.
- Modular 3-pole switch according to DIN EN 60947-3
- Maximum switching capacity of 41 kW at 400 V
- Lockable design for added safety
- Suitable for installation in distribution cabinets
- Screw connection for main circuit.
Actuator type | Switch actuator |
mounting style | Built-in |
Items per sales unit | 1 x |
Item number | 24014581 |
Colour | Grey |
Exact colour description | Grey |
Actuator type | Switch actuator |
Max. Switching capacity | 41000 W |
rated current | 63 A |
Operating voltage | 415 V |
Number of switching outputs | 1 x |
mounting style | Built-in |
Protection type (IP code) | IP20 |
Smart Home | Not compatible |
Radio frequency | 60 Hz |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 0.11 m |
Width | 0.11 m |
Height | 0.09 m |
