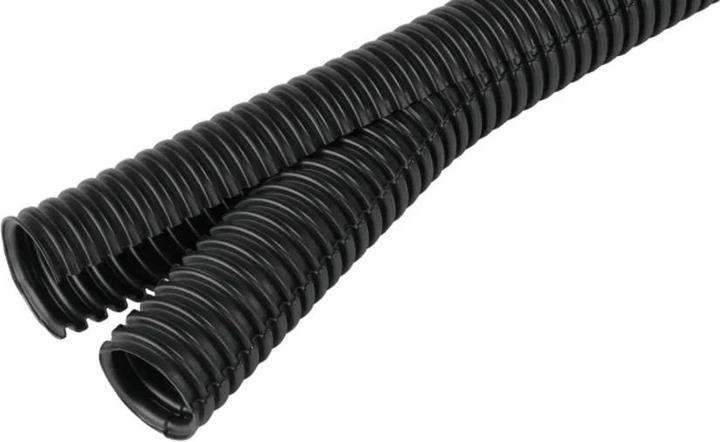

This corrugated pipe is used for various outdoor installations, with the main applications being solar systems, satellite systems, and photovoltaic systems. This split corrugated pipe can be easily mounted around an already installed line. The process begins with opening the system, followed by equipping the inner pipe with cables, and finally sealing the slit by attaching the outer pipe.

Features:

• Slotted, sealable corrugated pipe made of PP-MOD-BS-UV
• Non-flame spreading according to DIN EN 61386-22
• Usable for various outdoor installations, such as solar systems, satellite systems, and photovoltaic systems
• High temperature resistant and UV stable for up to 20 years
• Protects against marten and rodent bites
• The split corrugated pipe can be easily mounted around an already installed line
• Resistant to acids, alkalis, inorganic salts, fuels, mineral oils, fats, and most common solvents

Selection criteria:
Nominal diameter: NW 45 mm
Outer x Inner diameter: 54.0 x 42.7 mm

Technical data:
Temperature resistance: LV312-3: -40 to +105 °C, DIN EN 61386-22 (VDE 0605-22): -25 to +105 °C
Color: black
Flammability: UL 94 V2 / FMVSS 302
Weight: 224 g

Article number: FRW38404500.
