Top Features: Variable spacing up to 500 mm. Compatible with the FFRC cold anchor clamp. Axially and laterally adjustable braces. Capable of accommodating changing or unknown force directions.

Advantages: The supports and unilateral braces of the variable anchor solution allow for adjustment to the distance between the pipeline and the ground. The anchor points consist of components with the same thread sizes and dowel holes, ensuring easy installation with the same tools. Height adjustment on the base plate allows for fine-tuning to adapt to installed pipelines, thereby ensuring the secure function of the anchor point. The axially and laterally adjustable brace angles enable adaptation of the ground connection to site conditions and facilitate installation. The anchor point is suitable for the FFSC anchor clamp and FFRC cold anchor clamp for even greater flexibility.

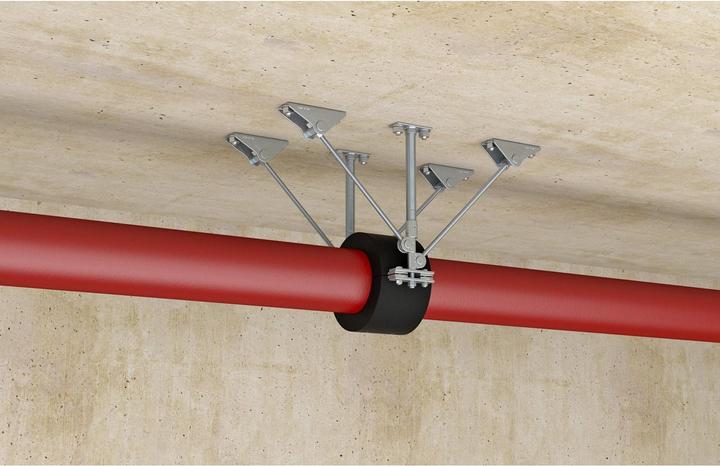

Functionality: The fischer anchor points are suitable for securing thermal pipe expansions and for directing the expansion in the desired direction.

Applications: Heating pipes, cooling pipes, steam pipes, hot water and circulation pipes, media pipes with thermal expansion.

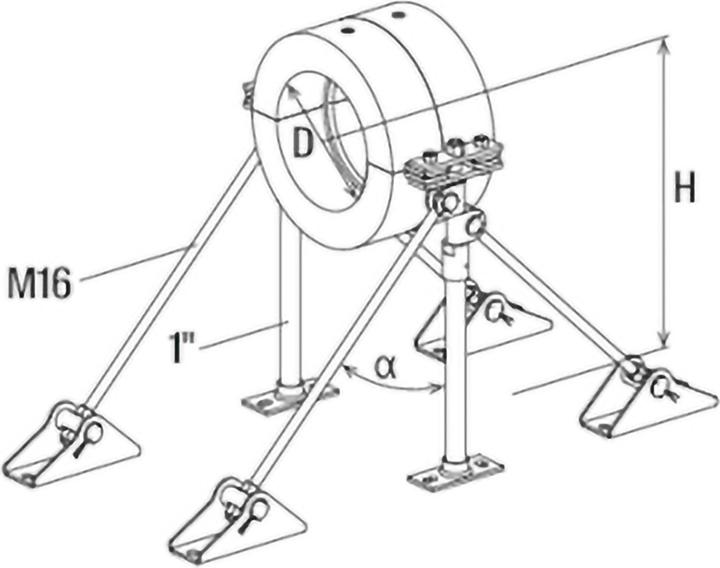

Features: Bracing angle: 35 - 45°, Max. construction height: 2,000 mm, Max. recommended axial load: 30 kN, Max. recommended pipe diameter: 355.6 mm, Min. construction height: 350 mm, coated: yes, load level: light.
