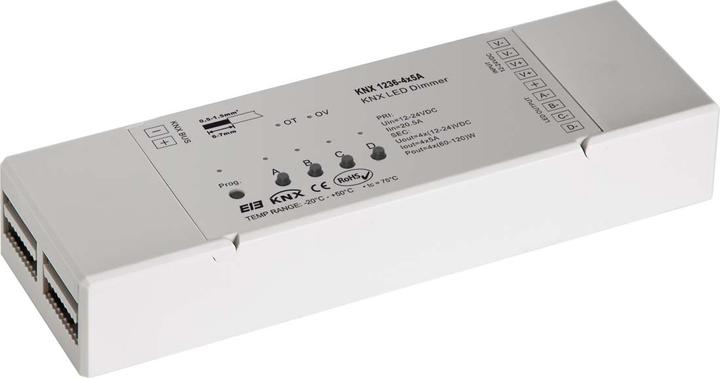

EVN Lighting Technology KNX Dimmer Unicolor KNX1236-4x5A

Manufacturer: EVN Lighting Technology
Designation: KNX Dimmer Unicolor 4x5A 240-720W
Type: KNX1236-4x5A
Execution: dynamic
Suitable for outdoor use: no
Control type: KNX
Number of color channels: 4
Programmable: yes
Housing: plastic housing
Surface mount: yes
Flush mount: yes
DIN rail mount: no
Output voltage: 12-48 V
Input voltage: 12-48 V
Max. output current: 5 A
Protection class (IP): IP20
Protection class: III
Length: 168 mm
Width: 54 mm
Height: 29 mm
Diameter: 0 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

The KNX Multicolor actuator can be used for Unicolor, Tunable-White, RGB, and RGBW lights. The appropriate control settings are made via ETS. Suitable for LED lights with 12, 24, 36, and 48 V/DC operating voltage. The actual input voltage depends on the required voltage of the lights to be powered.

Connections: 1x input for KNX bus, 1x input for 12-48 V/DC for power supply, and 4x output. The screw terminals are suitable for cables from 0.5 mm² to 1.5 mm².

Technical data: ta: -20°C to 50°C, tc: 75°C, max. output power per channel: 5 A at 12-36 V/DC, 2 A at 48 V/DC (60 W at 12 V/DC, 120 W at 24 V/DC, 180 W at 36 V/DC, and 96 W at 48 V/DC).
EAN: 4037293405690.
