Eaton SPZT123-300/3+NPE-S EP-501043 Lightning current surge arrester EP-
Price in EUR including VAT
Delivered Sat, 5/7
Only 1 piece in stock
Only 1 piece in stock
free shipping
Product details

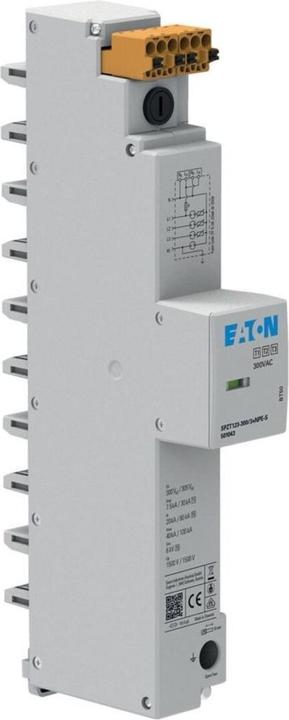

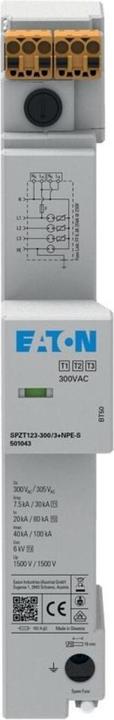

For the protection of consumer installations in the network connection area of the meter cabinet on a 40 mm busbar against transient overvoltages caused by direct and indirect lightning strikes as well as switching actions. Meets all requirements for the installation of surge protection according to DIN VDE 0100-534, test classes I, II, III according to IEC 61643-1, SPD type T123, complies with IEC 61643-11: 2011, EN 61643-11:2012 A11:2018, lightning protection classes III and IV according to IEC 62305, free of leakage current, with integrated fuse for the protection of the Smart Meter Gateway and the APZ SPZT123-3003NPE-S.
Surge protection type | Lightning current arrester |
Number of conductors | 4 x |
Test class | Type 1 |
Item number | 24101138 |
Manufacturer | Eaton |
Category | Surge protection |
Manufacturer no. | 501043 |
Release date | 3/2/2023 |
Colour | White |
Exact colour description | White |
Surge protection type | Lightning current arrester |
Number of conductors | 4 x |
Lightning impulse current | 7.50 kA |
Rated leakage surge current | 0.10 kA |
Nominal voltage | 240 V |
Protection level | 1.50 V |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | Slovenia |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 0.27 m |
Width | 0.12 m |
Height | 0.05 m |
Length | 26 cm |
Width | 11 cm |
Height | 5 cm |
Weight | 600 g |
Product Safety |
Specifications may include unverified machine translations.
