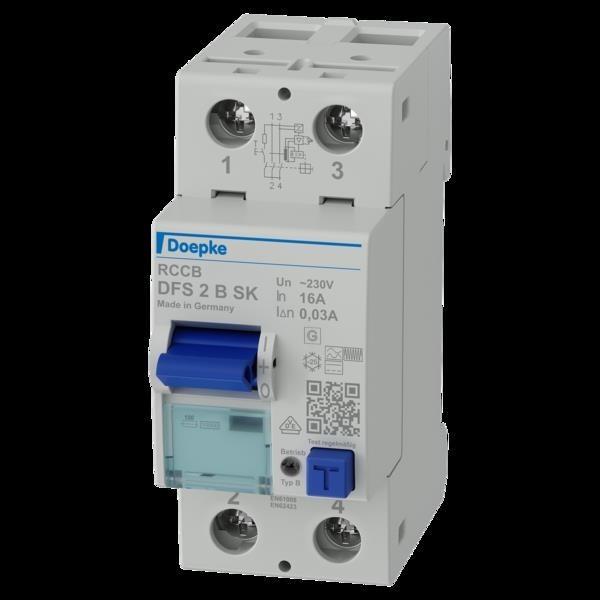

The Doepke DFS2 016-2/0.03-B SK residual current circuit breaker is a highly advanced safety device designed to immediately disconnect the power supply in the event of dangerously high fault currents. This not only protects people and animals but also electrical installations from potential damage. The switch is designed for use in single-phase networks and features a compact design that occupies only two module units. With a rated current of 16 A and a residual current of 30 mA, it is ideal for use in residential and commercial buildings. The large terminal arrangement allows for the use of conductors with larger cross-sections, making installation easier. Additionally, the switch is equipped with a special labeling software that simplifies the labeling process. Its high immunity to operational leakage and fault currents at frequencies starting from 1 kHz makes it particularly reliable in modern electrical systems.

• Two-pole residual current circuit breaker for single-phase networks
• All-current sensitive at frequencies from 0 Hz to 150 kHz
• Increased surge current and lightning resistance
• Reduced sensitivity to higher frequency responses
• Suitable for monitoring circuits with 230 V and 50 Hz.
