Danfoss Thin Bed Set 525W 140F1655

Manufacturer: Danfoss
Designation: Thin Bed Set 525W
Type: 140F1655
With carrier mat: yes
Fixation of heating conductor: Glued
Self-adhesive: yes
Connection power: 0..525 W
Power: 150 W/m²
Heating conductor load: 11 W/m
Number of cold conductors: 1
Length of cold conductor: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 3.5 m²
Length: 7000 mm
Width: 500 mm
Thickness: 3.5 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: yes

Danfoss Thin Bed Set 525W 140F1655: additional details

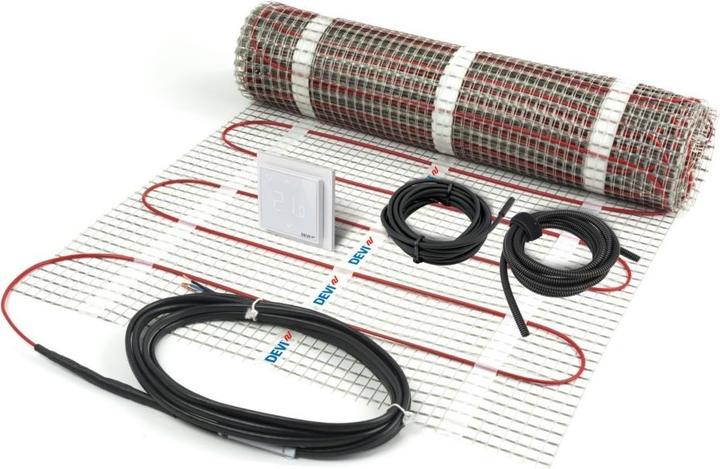

Thin bed set with Wi-Fi thermostat, flexible sensor protection tube DN10 with red cap, plastic nails, installation instructions. The self-adhesive thin bed heating mat with a connection lead is pre-assembled and specifically designed for installation in leveling compound or flexible adhesive directly beneath the floor covering. Due to its low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large spaces, as the return of the second connection is not required. The heating cable with additional protective sheath for the use of RCD protection is mounted on a plastic mesh. The length of the connection leads is 4.0 m, cold conductor: 1 x 4m, 1.0 mm², voltage: 230 V, rated limit temperature: 120°C, specific heating output: 150 W/m², length load: 11 W, insulation: PVDF / FEP, resistance tolerance: +10% / -5%, minimum installation temperature: 5°C, minimum bending radius: 6 x dA, calculation width: 50 cm, delivery width: 48 cm, mat height: 3.2 mm, protection class: IPX7, approval: EN 60335-2-96, area: 3.5 m², 0.5 x 7.0 m.
