Product Highlights

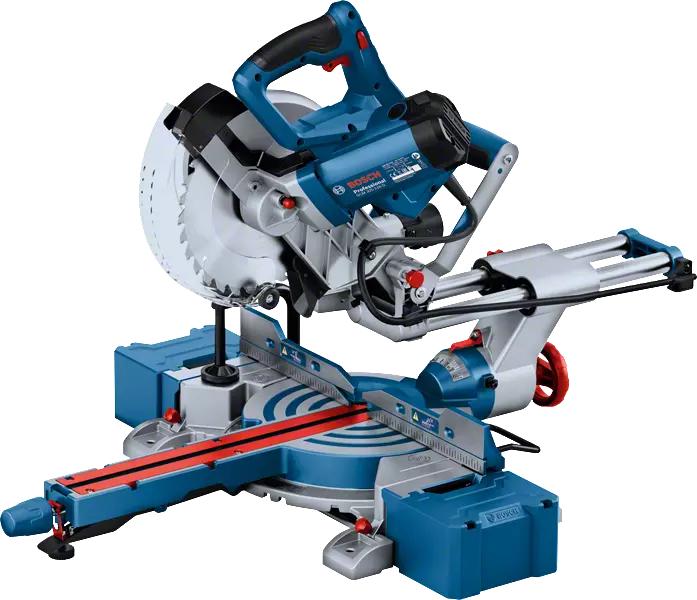

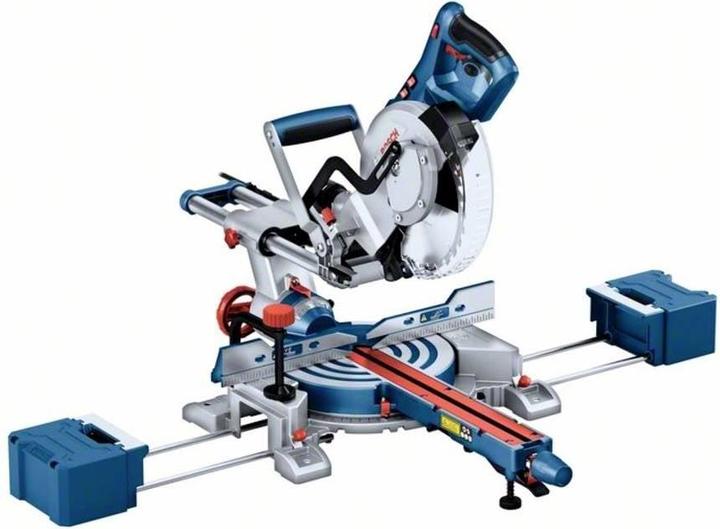

The GCM 305-216 D Professional delivers powerful cutting performance for the most demanding cuts, thanks to its robust motor. This mobile miter saw is a reliable, high-performance tool that allows for controlled cutting of even long workpieces, thanks to removable workpiece supports and long table extensions. Its dual bevel function with an ergonomic rotary switch for bevel locking provides greater comfort and flexibility, even for challenging cuts.

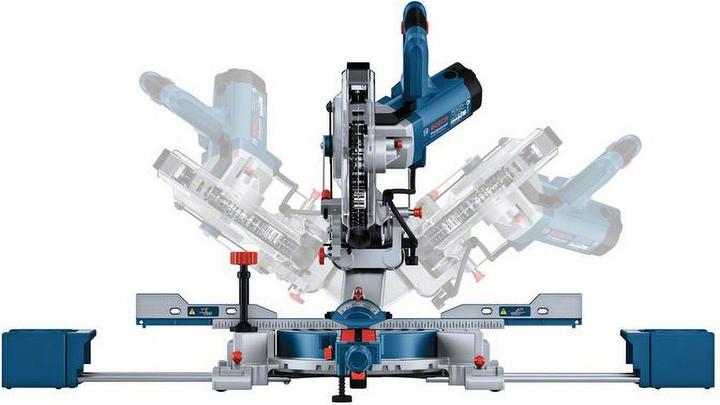

Equipment and Application

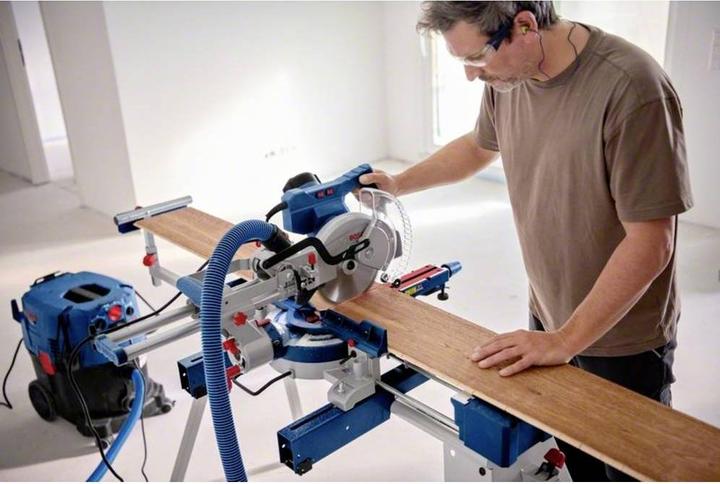

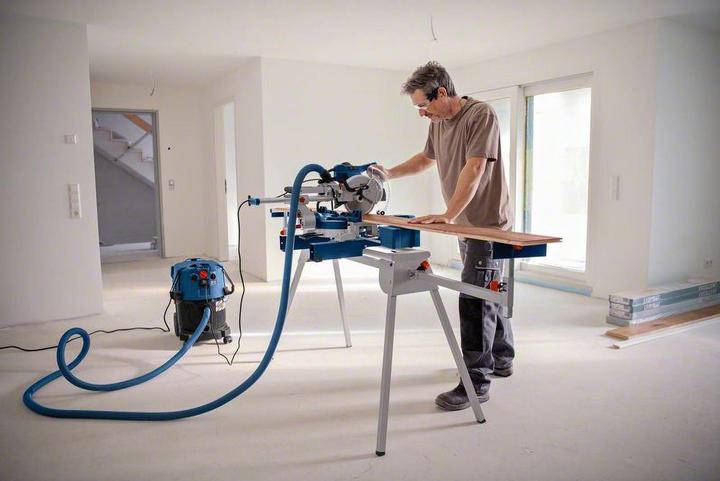

The GCM 305-216 D Professional is an excellent choice for all crosscuts, miter cuts, and bevel cuts in wood, aluminum, and PVC plastic. The miter saw is compatible with all Bosch vacuum cleaners, GTA work tables, and saw blades for corded miter and chop saws.

Additional Information

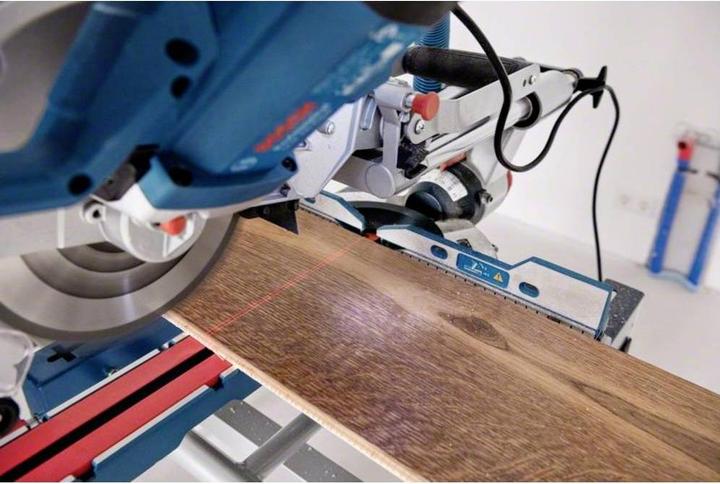

This mobile miter saw offers increased precision thanks to a dual-line laser with one laser line on each side of the saw blade. With various one-handed or two-handed carrying options and its compact design, it is easy to transport.

Main Features
Bevel type: Double bevel
Laser guidance: Yes
Dust extraction: Yes
Soft start: Yes

Performance
No-load speed (max.): 4200 RPM
Miter adjustment (left): 48°
Miter adjustment (right): 48°
Bevel adjustment (left): 47°
Bevel adjustment (right): 47°
Crosscut capacity (0° x 0°): 66 x 305 mm
Bevel cut capacity (0° x 45°): 43 x 305 mm
Miter cut capacity (45° x 0°): 66 x 215 mm
Sound power level: 109 dB
Sound pressure level: 3 dB

Energy
Power source: AC
Input power: 1200 W

Weight and Dimensions
Width: 770 mm
Depth: 464 mm
Height: 606 mm
Weight: 16.8 kg
Packaging width: 575 mm
Packaging depth: 790 mm
Packaging height: 355 mm

Scope of Delivery
Saw blade included: Yes
Blade diameter: 21.6 cm
Blade bore: 3 cm
Blade thickness: 2.8 mm
Clamp holder included: Yes.
