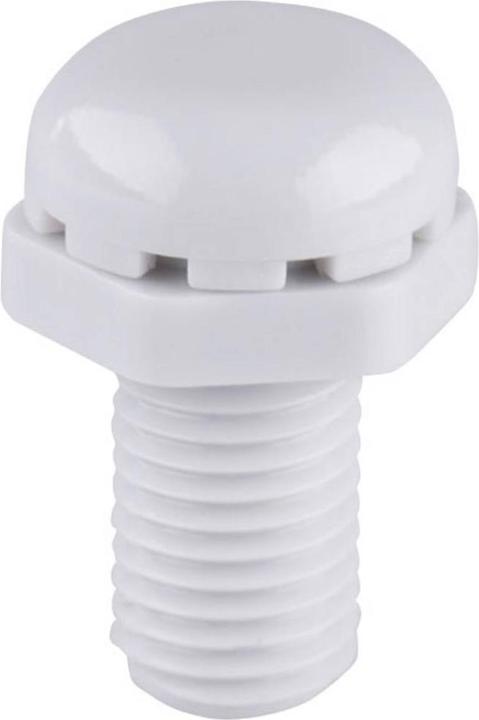

They are durable, threaded, and can be easily installed into existing equipment. They are suitable for different applications such as protective housings, lighting housings, and other devices that must be protected with pressure compensation elements. Pressure compensation elements are made of automotive-grade plastic, which is resistant to chemicals and solvents and can withstand high temperatures. The pressure compensation element contains a puncture-proof and moisture-protected filter medium. It consists of a two-part housing that securely encloses the filter medium.

Specifications:

• Clamp diameter: 3 mm
• Colour: Grey-white (RAL 7035)
• Content: 1 piece
• External thread: M25
• IP rating: IP69
• Manufacturer part number: 52041060
• Material: Polyamide 6
• Maximum temperature: +100 °C
• Minimum temperature: -20 °C
• Product size (height): 35 mm
• Product type: Cable gland
• RoHS-compliant: Yes
• Clamp size: 33 mm
• Terminal diameter (maximum): 8 mm
• Thread length: 8 mm
• Type (manufacturer type): DAE M6 Pressure compensation element RAL 7035

Delivery includes: 5 pieces

Note: Air that generates a vacuum in the housing when cooled down can suck moisture through the seal into the housing, which may compromise the IP protection. The DAE can be used to compensate for these pressure fluctuations due to temperature differences. When installed, protection types IP 66, IP 68 (0.2 bar, 60 min), and IP 69 can be achieved.
