Reliable high-load carbon seat heater type HEAT302 for a vehicle seat with a 3-stage temperature setting via a button. Suitable for installation under the leather upholstery of the backrest and seat cushion.

Features:

• Set designed for one seat with backrest and seat cushion
• Very fast and uniform heating behavior
• Heating elements adaptable to seat geometry
• Suitable only for leather seat covers
• Three heating levels switchable, 18/35/50 watts via button
• Integrated overheating protection
• Set designed for installation between seat padding and seat cover
• Complete set for one seat including illuminated button and wiring

Technical Data:

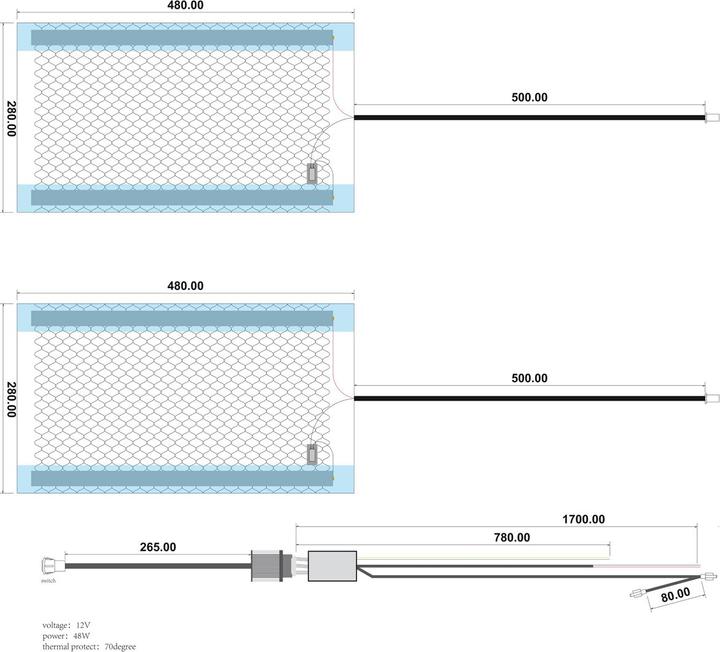

• Dimensions of heating mats: 480 x 280 mm
• Thickness of heating mats: 1.1 mm
• Rated power: 50 watts
• Rated voltage: 12 volts
• Rated current: 3.7 amperes
• Maximum current draw: 4.5 amperes (14.4 VDC)
• Recommended fuse: 5 amperes

Scope of Delivery:

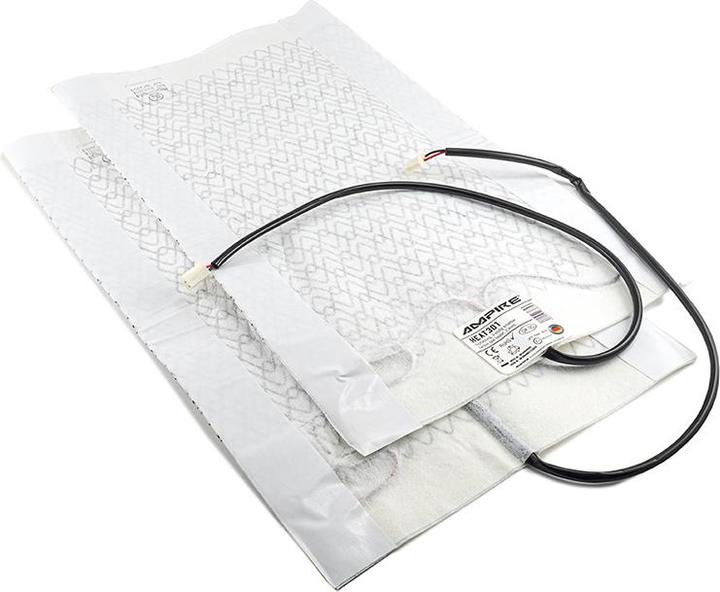

• Number of heating mats: 2 pieces (seat surface/backrest)
• Wiring harness with relay

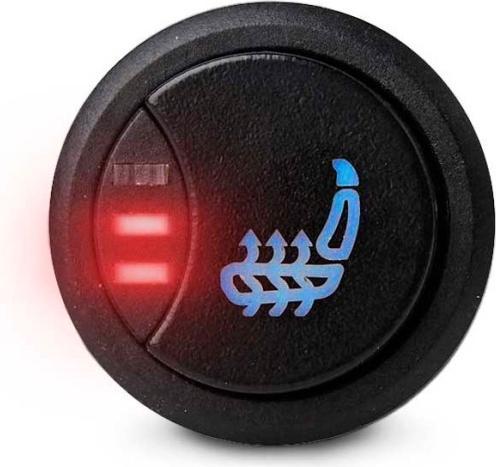

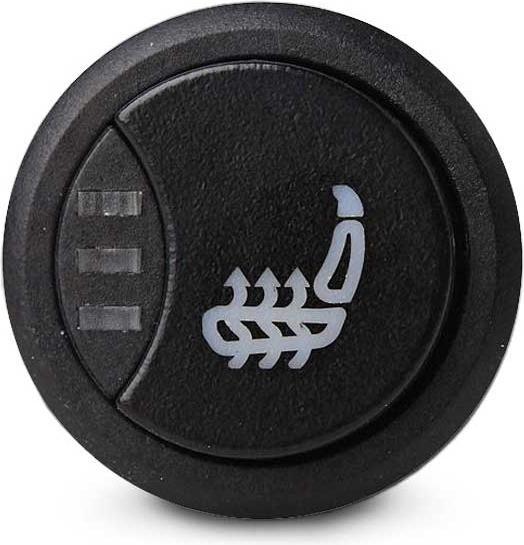

• Illuminated button (3/2/1/Off) with red LED
• 4 double-sided adhesive strips for mounting
• Installation instructions and small parts

Approvals:

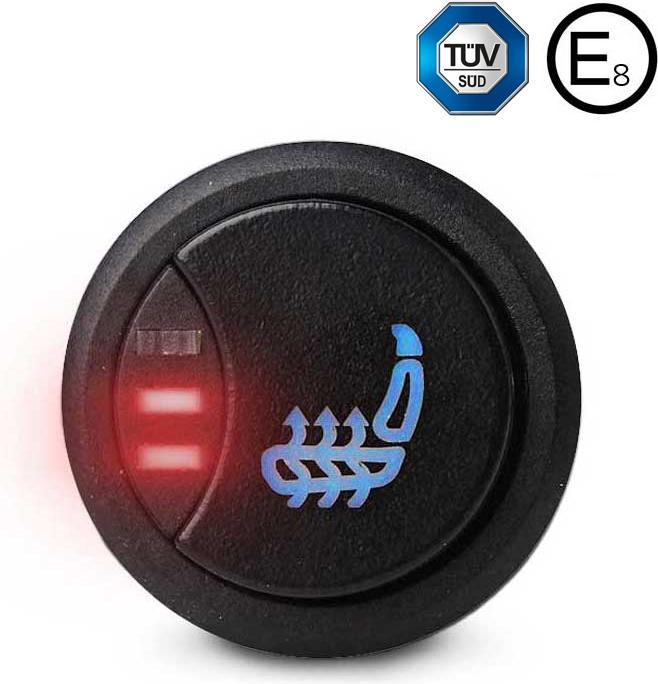

• Approval E8*10R05/00*11234*00 TÜV SÜD

Relevant European Directives:

• 2011/65/EU
• 2014/30/EU
• 2014/35/EU

Relevant Standards:

• EN 50498:2010
• EN 50581:2012
• EN 62368-1:2014

Wiring:

• Black: Ground (body)
• Red: +12 volts (Terminal 30)
• Yellow: Ignition (Terminal 15) +12 volts
• Green: Lighting input +12 volts

Cable length: 340 cm.
