Stiebel Eltron Thermo Floor TBS TC 200/5

Manufacturer: Stiebel Eltron
Description: Thermo Floor 5 sqm, 200 W/sqm, 230 V
Type: TBS TC 200/5
Design: Heating cable
With carrier mat: yes
Fixation of heating conductor: sewn
Self-adhesive: yes
Connection voltage: 230 V
Connection power: 1000 W
Power: 200 W/m²
Heating conductor load: 10 W/m
Resistance: 54 Ohm
Number of cold leads: 1
Length of cold leads: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 5 m²
Length: 16600 mm
Width: 300 mm
Thickness: 3 mm
With controller: no
With room thermostat: no
With floor temperature sensor: no

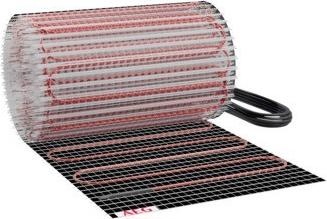

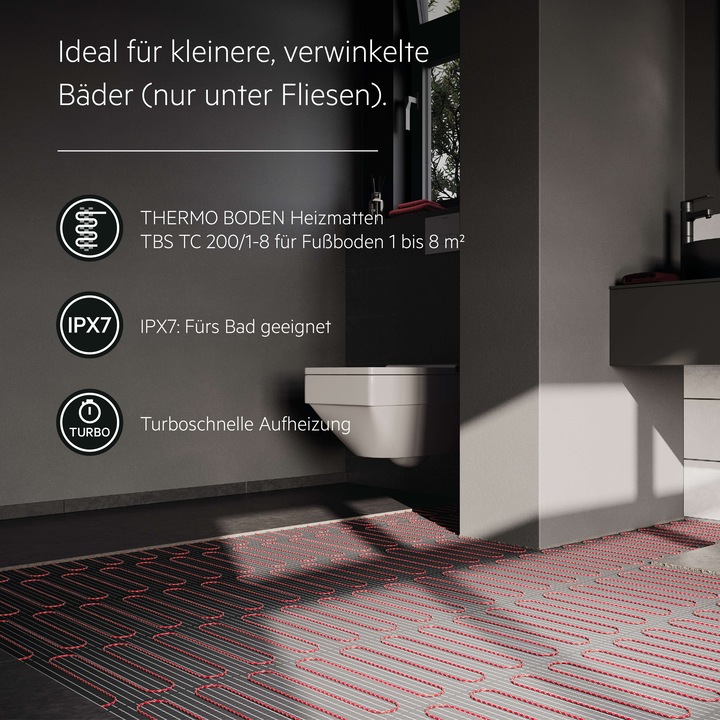

The thin-bed heating mats with high heating performance are used in new buildings and renovations for floor temperature control, especially in bathrooms. They are installed directly under the floor covering and quickly provide a pleasantly warm floor surface, regardless of the existing heating system. The heating mat is suitable as an additional or supplementary heating solution.

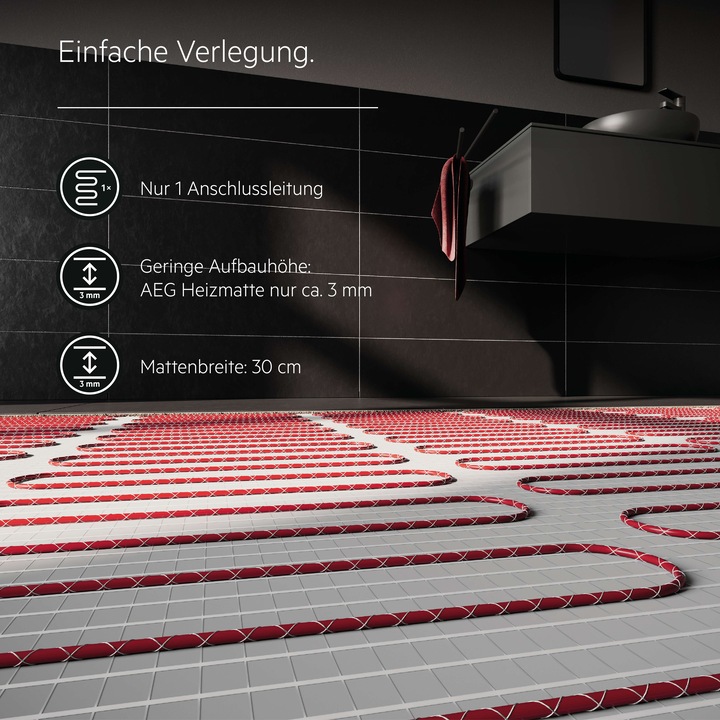

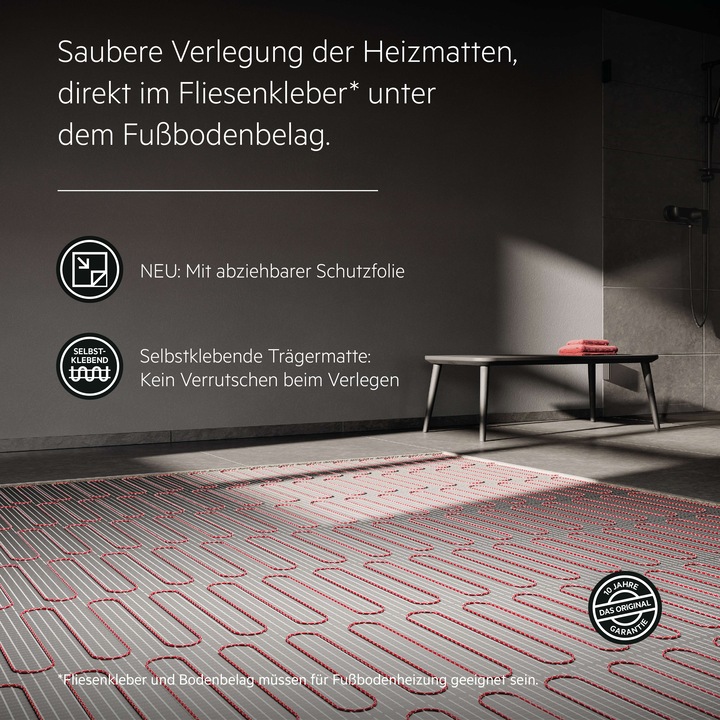

Comfort features: Due to the low installation height, the heating mat can be installed directly in the tile adhesive under ceramic coverings. The narrower installation width is particularly well-suited for small, angular floor plans. In combination with a water-based underfloor heating system, it can also provide the comfort of a warm floor outside the heating season. The heating conductor is completely sewn onto the self-adhesive carrier mat, making it easy and quick to lay on the floor.

Installation: The mat can be installed in the bathroom in conjunction with a residual current device. By cutting the carrier fabric, the mat can be easily adapted to individual space conditions.

EAN: 4041056034652.
