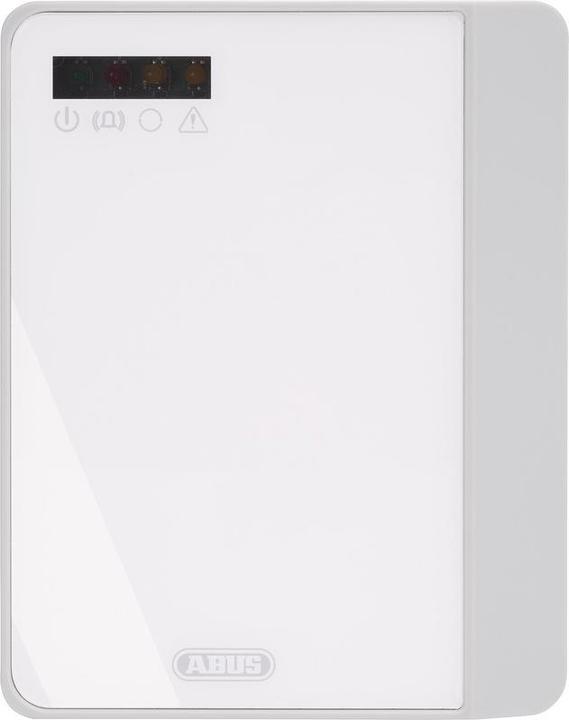

Converts analog control center protocols into digital protocols and transmits them to control centers via 8 controllable wired inputs. Integrated GSM module. Double security: redundancy through Ethernet and GSM. The housing is monitored for tampering. The PSTN/IP converter transforms analog control center protocols into digital protocols and sends them to a control center. Supported protocols include VdS IP, CID, SIA DC09, among others. It also utilizes conventional wired inputs, making it possible to future-proof older, still analog control center connections. The housing features tamper monitoring and an LED display. Encryption of messages to the receiving control center is also possible. The AZWG10200 is ideal for continuing to connect ABUS Terxon systems to control centers. The following digital protocols are implemented: SIA DC-03, SIA DC-09, SIA DC-09 Encrypt, SIA DC-09 A.Ascii, SIA DC-09 A.Encrypt, CID DC-09 encrypted, VdS-IP 2465 demand-controlled, VdS-IP 2465 demand-controlled encrypted.

Dimensions: WxHxD mm. Number of voice messages: Type of inputs: Wired. Width: 150 mm. Gross weight: 0.338 kg. Inputs: Remote access: Yes. Height: 190 mm. Power consumption: 2.04 W. Length: 64 mm. Installation location: Surface-mounted. Net weight: 0.338 kg. Backup power supply: No. Tamper monitoring: Yes. DC power supply: 12 V.

Scope of delivery: 1 dialing device, 1 network cable, 1 antenna, 1 mounting material, 1 safety instructions, 1 QuickGuide AZWG10200.
