ABB Staircase lighting timer
5 pieces in stock at supplier
Product details

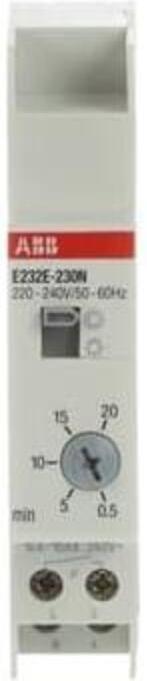

ABB Stotz S&J Stair Light Timer Switch E232E-230N
Manufacturer: ABB Stotz S&J
Description: Stair light timer switch
Adjustable time: 0.5-20 minutes
Rated power: 6 VA
Type: E232E-230N
Function: electronic
Mounting type: DIN rail
Width in modular units: 1
Installation depth: 59 mm
Number of contacts as switches: 1
Control voltage: 230-240 V
Type of control voltage: AC
Frequency of control voltage: 50-60 Hz
Rated switching current: 16 A
Max. switching current (cos phi: 0.6): 16 A
Fallback delay: 0.5-20 minutes
Push button glow lamp current: 150 mA
Wiring type: 3- and 4-wire circuit
Switch-off pre-warning: none
Selectable pulse function: no
After-switching: after-switchable + continuous light
Supply voltage: 230-240 V
Type of supply voltage: AC
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 2300 VA

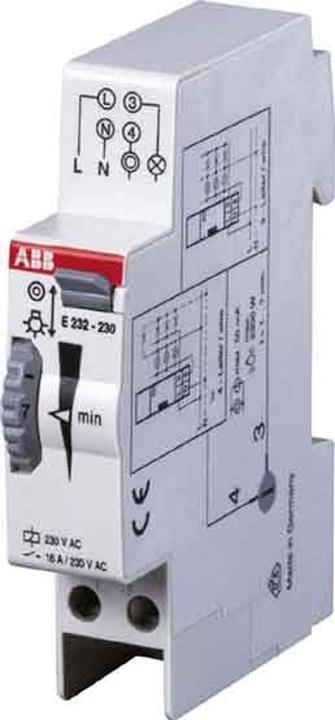

The stair light timer switch with fallback delay is activated by push buttons, which are often equipped with a glow lamp. The switching levers are designed for a glow lamp current of up to 150 mA, making them ideal for installations in multi-story buildings. The E232E-230 stair light timer switch features an electromechanical time relay with synchronous motor drive, ensuring high operational reliability in any installation position. The time range can be set in 15-second increments from one to seven minutes, with an after-switching option after 30 seconds. The multifunctional devices in the E232E-230 Multi 10 and E232E-8/230 Multi 10 product lines offer 10 functions that can be set on the device front.
EAN: 4016779654166.
Item number | 17824056 |
Manufacturer | ABB |
Category | Timers |
Manufacturer no. | 2CDE110003R0511 |
Release date | 10/12/2021 |
Colour | White |
Exact colour description | White |
mounting style | Top-hat rail |
Power supply | Electrical connection |
Nominal voltage | 230 V |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 58 mm |
Width | 17.50 mm |
Height | 90 mm |
Weight | 100 g |
