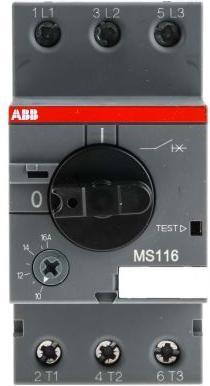

ABB Motor protection switch MS116 - 16.0

Price in EUR including VAT
Ratings
BrandMore from ABB
Delivered between Wed, 24/12 and Sat, 27/12
7 pieces in stock at supplier
free shipping

rated current12

Product details

Motor starter type: Direct starter
Operating voltage: 690 V AC
Protection class: IP20
Phase: 1, 3
Number of poles: 3P
Motor starter mode of operation: Manual
Total length: 90 mm
Housing: Yes
Total width: 45 mm
Total depth: 80.1 mm
Series: MS116

This motor protective circuit breaker offers economical fuseless protection for drives up to 7.5 kW. It features thermal and electromagnetic tripping, is lockable, and can be used as a disconnector according to IEC/EN 60947-1. It is short-circuit proof up to 50 kA and has phase loss sensitivity. The temperature compensation ensures reliable operation, and the modern rotary handle provides clear switch position indication. With low storage costs, it offers only 11 current ranges up to 16 A and a construction width of 45 mm.

Accessories include:

  • HKF1: Auxiliary switch front mounting
  • HK1: Auxiliary switch side mounting right
  • SK1: Signal contact for general trip indication, side mounting right
  • IB116: Insulated enclosure IP65
  • QES 4/3N: Insulated enclosure IP55
  • SMO 4: Collecting terminal for N or PE, for enclosure QES 4/3 N
  • UA1-230: Undervoltage release, side mounting left.

Key specifications

Circuit breaker type
Motor protection switch
Width
45 mm
Length
85.60 mm
number of poles
3
Item number
9727303

General information

Manufacturer
ABB
Category
Residual-current device
Manufacturer no.
1SAM250000R1011
Release date
24/9/2018

Circuit Breaker Features

Circuit breaker type
Motor protection switch
Mounting type
Screw fastening
number of poles
3
Rated current
16 A
Rated voltage
690 V
voltage type
AC/DC
Rated insulation voltage Ui
690 V
Protection type (IP code)
IP20

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
85.60 mm
Width
45 mm
Height
90 mm

Legal Notice

Product Safety

Package dimensions

Length
9.30 cm
Width
9.50 cm
Height
4.80 cm
Weight
270 g
