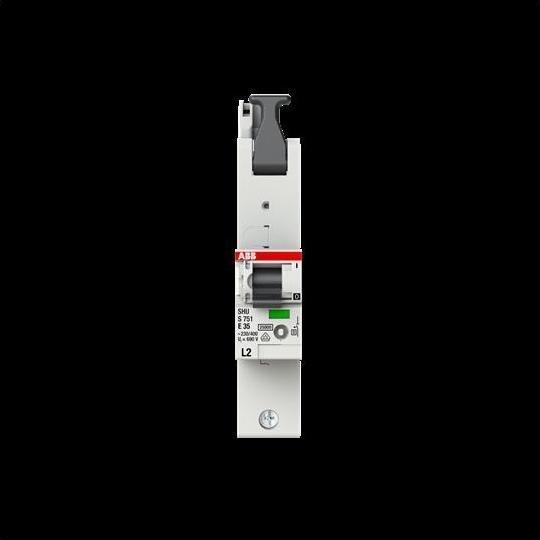

ABB Stotz S&J HLS Switch S751-E35L2

Manufacturer: ABB Stotz S&J
Designation: HLS Switch
Type: S751-E35L2
Tripping Characteristic: E
Number of Poles: 1
Rated Current: 35 A
Rated Voltage: 230 V
Rated Insulation Voltage Ui: 690 V
Rated Short-Circuit Breaking Capacity: 25 kA
Switchable Neutral Conductor: no
Frequency: 50 Hz
Overvoltage Category: 4
Degree of Pollution: 3
Rated Impulse Voltage Withstand: 6 kV
Mounting Type: DIN Rail
Protection Class (IP): IP40
Size (according to DIN 43880): 6

The selective main circuit breakers of the S750 series are certified as voltage-independent selective main line protection switches (SHU) according to DIN VDE 0641-21, designed for layman operation and suitable for the highest overvoltage category. Their application range is diverse: as a disconnecting device at the metering point according to the regulations of the network operators or VDE-AR-N 4101, as well as in all low-voltage main distributions to protect distribution circuits and as a disconnection device with isolation function. Notable are the special selectivity features that ensure high system availability. The S750 series is designed for direct mounting on a 4- or 5-pole busbar system 40 mm (12 mm x 5/10 mm). Regardless of the rated current of the S750, up to 50 mm² and a maximum of 100 A can be fed directly into the busbar system via the lower terminal. Devices of the S750 family include an integrated locking option that allows simultaneous blocking of the 3 poles of a three-phase supply. The integrated locking slider locks in the ON or OFF position and can additionally be secured with a padlock, wire seal, or cable tie.
