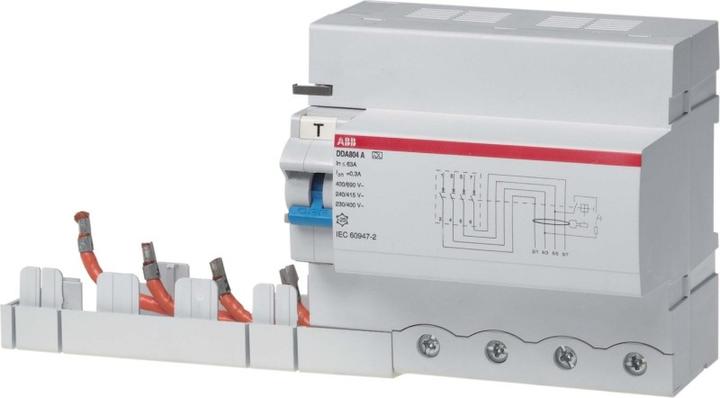

ABB Stotz S&J RCD Block DDA804A-63/0.3

Manufacturer: ABB Stotz S&J
Designation: RCD Block 4p, 63A, 300mA
Type: DDA804A-63/0.3
Rated Voltage: 230-690 V
Rated Current: 63 A
Adjustable Rated Residual Current: No
Rated Residual Current: 0.3 A
Max. Delay Time: 0 ms
Adjustable Delay Time: No
Number of Poles: 4
Residual Current Type: A
Surge Current Resistance: 0.25 kA
Frequency: 50/60 Hz
Rated Insulation Voltage Ui: 690 V
Rated Impulse Voltage Resistance Uimp: 6 kV
Connectable Conductor Cross-Section Solid: 6-50 mm²
Connectable Conductor Cross-Section Stranded: 6-70 mm²
Fault Release Protection: No
With Locking Device: No
Protection Class (IP): IP2X
Ambient Temperature During Operation: -25 to 60 °C

The RCD Block (RCU) is designed for customer-side installation with high-performance circuit breakers from the S800 series. The resulting RCD/MCB combinations (RCBOs) provide equipment protection as well as protection against electrically ignited fires. They ensure protection for 2P, 3P, or 4P circuits against overload and short-circuit currents, protection against sinusoidal alternating currents and pulsating currents with a smooth DC residual current component of up to 6 mA to ground. Additionally, they provide fault protection (protection against indirect contact), supplementary protection (with I?n = 30 mA), and fire protection (with I?n = 300 mA). They comply with the product standard IEC/EN 60947-2. Areas of application include industrial applications. The extensive range of accessories provides everything you need for your installation tasks.
EAN: 8012542925002.
