Luminaire type
Small recessed LED spotlight.

Applications
For prestigious lighting of offices, banks, hotels, restaurants, corridors, foyers, and sales, exhibition and conference rooms, as well as residential areas.

Mounting methods

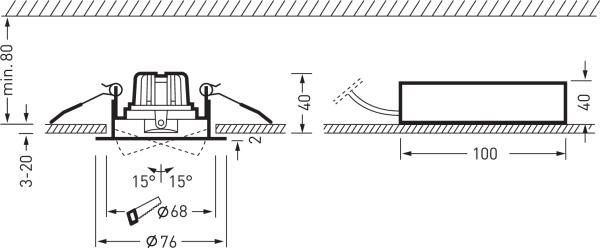

Recessed spotlight for use in cutout ceiling apertures. Cut-out opening Ø 68 mm, recess depth 80 mm. With rapid-mounting springs for tool-free mounting. Ceiling thickness 3 mm - 20 mm.

LED system
Luminaire luminous flux 900 lm, connected load 11.00 W, power factor λ > 0.9, luminous efficiency of luminaire 81 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 4 SDCM, mean rated service life L80(tq 25 °C) = 35,000 h, mean rated service life L70(tq 25 °C) = 50,000 h.

Luminaire body
Ceiling mounting ring and spotlight head of die-cast material. Surface coated white (RAL 9016). Luminaire diameter Ø 76 mm, luminaire height 42 mm. Weight: 0.2 kg. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK02, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C.

Electrical version
With electronic control gear unit, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority.
