Best selling Video converters from Delock
On this page you’ll find a ranking of the best Video converters from Delock. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Delock HDMI EDID Emulator 8K bidirektional
The Delock HDMI EDID Emulator 8K bidirectional is a versatile adapter designed to optimize signal transmission between HDMI sources and displays. By emulating a monitor, this adapter ensures that the signal source remains active even without a connected screen, preventing unwanted signal shutdowns or resolution changes. The emulator comes equipped with a standard set of EDID/DDC data but can also read and store the EDID data from a connected monitor, allowing for customization. The bidirectional functionality of the adapter provides additional flexibility, as the EDID data can be supplied through both the HDMI plug and the HDMI socket. With a maximum resolution of up to 7680 x 4320 at 60 Hz and support for HDR and HDCP, this emulator is ideal for high-resolution applications.
- Bidirectional signal transmission for maximum flexibility
- Supports resolutions up to 7680 x 4320 @ 60 Hz
- Integrated LED display for status monitoring
- Does not require external power supply
- Metal housing for increased durability.
2. Delock HDMI and SCART to
For example, a video recorder or a gaming console can be connected to an HDMI monitor or Full HD TV. Additionally, there is an HDMI input available, allowing the converter to be used as a switch. Both inputs are scaled to an HDMI output signal of 720p or 1080p at 50 or 60 Hz via the integrated video processor. The audio signal is simultaneously available at the HDMI output, as a digital S/PDIF signal, and as an analog stereo signal at the headphone jack.
3. Delock Converter HDMI - 3G-SDI
With this converter from Delock, an HDMI signal can be converted into an HD or 3G-SDI signal. Various video devices can be connected, for example, a camera with an HDMI output to an HD-SDI recording device. The SDI signal transmission is carried out via a standard 75-ohm coaxial cable with a BNC connector.
Specifications:
- Connections:
- Input: 1 x HDMI-A socket
- Output: 2 x BNC socket (SDI)
- Chipset: GV7600
- Supports 3G-SDI Level A
- Supported resolutions:
- SD 480i, 525i, and 625i
- HD 720p 24, 25, 30, 50, and 60 Hz
- HD 1080i 50, 60 Hz
- HD 1080p 24, 25, 30, 50, and 60 Hz
- Data transfer rate up to 3 Gbps
- Supports 8 audio channels with 48 kHz PCM
- Robust metal housing
- Power consumption: max. 4 W
- Dimensions (LxWxH): approx. 100 x 70 x 25 mm
Power supply specifications:
- Plug-in power supply
- Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
- Output: 5 V / 1 A
- Outer diameter: positive inside
- Dimensions:
- inner: approx. 2.1 mm
- outer: approx. 5.5 mm
- length: approx. 9 mm
Package contents:
- HDMI to 3G-SDI converter
- Mounting bracket and screws
- Power supply.
4. Delock HDMI Extender Set über Cat.6 Kabel 4K 60 Hz 50 m
This HDMI extender set from Delock can transmit high-resolution video and audio signals as well as an IR control signal over a single network cable. At a resolution of 4K 60 Hz, distances of up to 50 meters are possible, and at 1080p resolution, distances of up to 70 meters can be achieved. The set has a wide range of applications in conference rooms, for remote teaching, or on large screens.
The transmitter features an HDMI loop output, allowing the signal to be cascaded to the next extender or to a monitor.
The included IR transmitter and receiver can be connected to the devices to transmit infrared signals over the cable.
The set supports Power over Cable (PoC), which means that only one device requires a power supply. The other device is powered via the network cable, making it flexible to use.
The power supply with a screwable connection ensures a secure and reliable connection – perfect for professional installations to prevent accidental disconnection.
Technical specifications
- Transmitter connections:
Input:
1 x HDMI-A socket
1 x DC 12 V power connection (screwable)
Output:
1 x RJ45 socket
1 x HDMI-A socket
1 x 3.5 mm 3-pin jack socket (IR)
- Receiver connections:
Input:
1 x RJ45 socket
1 x 3.5 mm 3-pin jack socket (IR)
1 x DC 12 V power connection (screwable)
Output:
1 x HDMI-A socket
- Service port: USB Type Micro-B socket
- Transmission of audio and video signals
- Transmission of IR signals 20 - 60 kHz
- Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gbps
- Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and connected hardware)
- Supports EDID and HDCP
- Supports HDR
- Supports 7.1 surround sound with Dolby TrueHD and DTS-HD Master Audio
- Supports PoC (Power Over Cable).

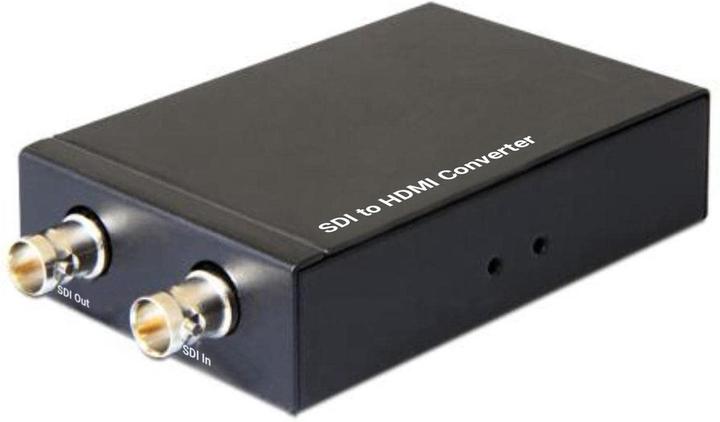

5. Delock BNC — HDMI (Typ A)| BNC
Use this Delock converter to convert an HD or 3G-SDI signal into an HDMI signal. This allows you to connect a camera with HD-SDI output to an HDMI monitor. The SDI signal transmission occurs via a standard 75 Ohm coaxial cable with a BNC connector.
Specifications:
- Connections:
- Input: 1 x BNC socket (SDI)
- Output: 1 x BNC socket (SDI, looped through), 1 x HDMI-A socket
- Chipset: GV7601
- Supports 3G-SDI Level A
- Supported resolutions:
- SD 480i, 525i, and 625i
- HD 720p at 24, 25, 30, 50, and 60 Hz
- HD 1080i at 50 and 60 Hz
- HD 1080p at 24, 25, 30, 50, and 60 Hz
- Supported data rate: 270 Mb/s to 2.97 Gb/s
- Supports 8 channels with 48 kHz PCM audio
- Sturdy metal housing
- Power consumption: maximum 2.5 W
- Dimensions (LxWxH): approx. 100 x 70 x 25 mm
Power supply specifications:
- Plug-in power supply
- Input: AC 100 to 240 V / 50 to 60 Hz / 0.3 A
- Output: 5 V / 1 A
- Outer dimensions, plus inner
- Dimensions:
- Inner: diameter approx. 2.1 mm
- Outer: diameter approx. 5.5 mm
- Length: approx. 9 mm
Package contents:
- 3G-SDI > HDMI converter
- Mounting bracket and screws
- Power supply.
6. Delock USB 3.0 Converter for M.2 Key B module with SIM slot and enclosure
\This Delock converter can be used to connect an M.2 module, e.g. GSM, GPRS, 3G, WLAN or LTE, in 2242 or 3042 format. The converter can be integrated into the system via the USB interface. The sturdy housing prevents damage to the built-in M.2 module when it is used on the road, for example. The two SMA antenna connectors and the included antennas can be used to receive a radio signal e.g. LTE or to use one antenna each for 2.4 GHz and 5 GHz when using a WLAN module.\r\n \r\n Description \r\n \r\n Short info DeLOCK USB 3.0 Converter for M.2 Key B module with SIM slot and enclosure - Interface Adapter - M.2 Card - USB 3.0 - Black \r\n \r\n Group Storage Adapters \r\n Manufacturer DeLOCK \r\n Manufacturer Art. No. 63172 \r\n EAN/UPC 4043619631728 \r\n Main Features \r\n Product Description DeLOCK USB 3.0 Converter for M.2 Key B module with SIM slot and enclosure - Interface Adapter - M.2 Card - USB.
