Best EKWB products in the Thermal pads category
On this page you'll find a ranking of the best EKWB products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

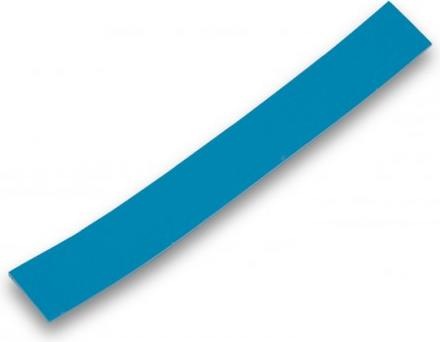

1. EKWB Thermal pad G 1,5mm - (120x24mm)
The thermal pads offer several advantages over liquid or viscous materials. The pads can be easily cut to the required size, eliminating the uncertainty of applying paste or the mess that can occur during smoothing. The pad offered here by EK Water Blocks is pre-cut into eight smaller pieces, is slightly self-adhesive, and usually stays in place at the assigned position.
Of course, securing it during the further assembly process cannot be completely avoided, as the heat source, thermal pad, and heatsink (or heat dissipation surface) should make as much contact as possible to ensure optimal heat transfer. EKWB maximally supports the user by offering the 120 x 24 mm blue pad in several thicknesses, with the version provided here being 1.5 mm thick. Additionally, the material is pleasantly flexible and adaptable, making it usable in many applications.
To name just a few examples: in RAM water coolers, alternative graphics card coolers, chipset coolers, and many other components where effective heat dissipation is crucial (e.g., on heat sinks, heat pipes, radiators, heatsinks, etc.). Since EKWB thermal pads are electrically non-conductive, there are hardly any limits to creativity with most electronic components. On the other hand, the pads, with a high thermal conductivity of 3.5 W/(m·K), can make many thermal pastes look inferior. The pad presented here is ideal for the chipsets of a memory module, as the overall 120 x 24 mm strip can be cut to size as desired.
2. EKWB EkWaterBlocks Thermal PAD E
Short info: EkWaterBlocks Thermal PAD E - Thermo Pad Group System Accessories Manufacturer EKWB Art. No. 3830046996700 Model EkWaterBlocks Thermal PAD E EAN/UPC 3830046996701 Product Description: EkWaterBlocks Thermal PAD E - Thermal Pad Product Type Thermal Pad Product Material Alumina Dimensions (Width x Depth x Height) 10 cm x 1.6 cm x 0.15 cm Detailed Details General Product Type Thermal Pad Product Material Aluminium Oxide Width 10 cm Depth 1.6 cm Height 0.15 cm Miscellaneous Thermal conductivity 3.5 W/mK Environmental conditions Min. operating temperature -55 °C Max. operating temperature 200 °C. Operating temperature 200 °C.

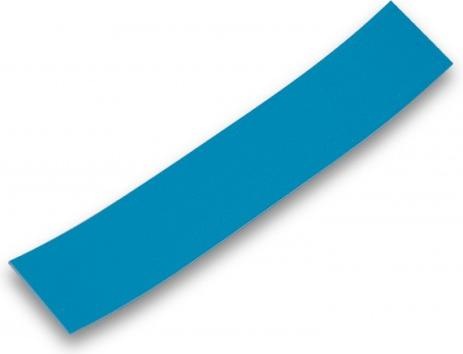

3. EKWB EkWaterBlocks Thermal PAD F
Short info: EkWaterBlocks Thermal Pad F - Thermo Pad - Blue Group System Accessories Manufacturer EKWB Item Art. No. 3830046996732 EAN/UPC 3830046996732
Product Description: EkWaterBlocks Thermal Pad F - Thermal Pad
Product Type: Thermal Pad
Color: Blue
Product Material: Aluminum Oxide
Dimensions (Width x Depth x Height): 12 cm x 1.6 cm
Detailed Details:
General Product Type: Thermal Pad
Product Material: Aluminum Oxide
Width: 12 cm
Depth: 1.6 cm
Thickness: 0.1 cm
Color: Blue
Miscellaneous:
Thermal Conductivity: 3.5 W/mK
Environmental Conditions:
Min Operating Temperature: -55 °C
Max Operating Temperature: 200 °C.
4. EKWB 3830046996749 Hardwarekühlungszubehör
Replacement thermal conductive pad for use with EK water blocks. Along with thermal conductivity, it provides great elasticity and elongation with natural tack on one side. Can be used multiple times, thus offering great reworkability and electrical insulation.
Thermal pads are used to fill air gaps caused by imperfectly flat or smooth surfaces which should be in thermal contact. Please consult your installation manual prior to purchasing to see what size and thickness is correct for your EK water block.
