Best FeinTech products in the Switch box category
On this page you'll find a ranking of the best FeinTech products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. FeinTech SP210 HDMI 2.1 Splitter 1 In 2 Out | 4K 120Hz | Downscaler
The SP210 HDMI 2.1 Splitter distributes the signal from a source device to two displays simultaneously, without the need to switch between screens. It supports resolutions up to 8K at 60 Hz and 4K at 120 Hz, ensuring lossless video and audio transmission. For gaming, the splitter offers VRR and ALLM to reduce screen tearing and improve response times. Both displays receive the same signal unless different resolutions require the use of the downscaler, which adjusts the image accordingly. The splitter supports HDMI-CEC, allowing you to control the source device with your TV remote. The EDID management automatically adjusts the signal to match the capabilities of your displays, and the EDID switch enables manual optimization of the signal format.

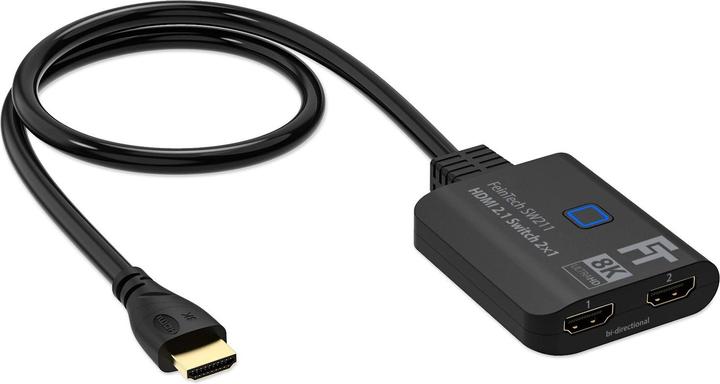

2. FeinTech SW211 HDMI 2.1 8K Bi-Directional Switch 2 In 1 Out | Splitter 1 In 2 Out | Pigtail
The SW211 is a bi-directional HDMI switch that allows you to switch between two sources on one display or between two displays connected to one source. The "pigtail" version with an integrated HDMI cable (approximately 50 cm) makes connection particularly easy. Switching is done via a button, with only the selected display receiving the HDMI signal. An LED indicator shows the chosen connection (blue for connection 1, green for connection 2). Power is supplied through the HDMI signal, so a separate power supply is not required. The switch supports all HDMI 2.1 features such as 4K at 120 Hz, VRR, ALLM, 8K at 60 Hz, and many common audio formats, including Dolby Atmos and DTS-HD. It has a maximum data rate of 48 Gbps and supports a variety of video formats, including HDR and Dolby Vision. The SW211 is ideal for use with modern TVs, monitors, and projectors, but it is not suitable for HDMI-ARC or HDMI-eARC applications.
Switch box
EUR27,90
FeinTech SW211 HDMI 2.1 8K Bi-Directional Switch 2 In 1 Out | Splitter 1 In 2 Out | Pigtail
3. FeinTech VAX01202 HDMI eARC Audio Extractor & Splitter
The VAX01202 is a versatile audio extractor that offers two operating modes. In the eARC audio extractor mode, it transmits audio signals from the TV to a sound system via HDMI. It supports all modern audio formats such as Dolby Atmos and DTS-HD, while video formats and gaming continue to function seamlessly like a direct HDMI connection. In the HDMI audio splitter mode, the VAX01202 splits the signal from an HDMI source, allowing the sound system to receive only the audio signal (with a black screen) while the TV gets the full video signal. This mode also works with older AV receivers and does not require an HDMI-eARC/ARC connection. The VAX01202 supports video formats up to 4K 60Hz, HDR, Dolby Vision, and a data rate of 18 Gbit/s. Volume control via HDMI-CEC is possible if the sound system supports it. A USB power supply is required. It is important to note that the VAX01202 is not suitable for operation with HDMI-ARC on soundbars and requires an HDMI-eARC connection on the TV for the eARC function.
4. FeinTech VMS04400 HDMI 2.0 Matrix Switch 4x4 mit Scaler
The VMS04400 is a true HDMI 4x4 matrix switch that allows you to distribute 4 HDMI sources to up to 4 HDMI sinks such as TVs, projectors, or AV receivers. It offers flexible assignment of input signals to outputs and supports video resolutions up to 4K at 60 Hz, as well as HDR10, Dolby Vision, and 3D. An integrated downscaler reduces 4K signals to 1080p, ensuring that Full HD displays can be optimally utilized even with Ultra HD signals, while the main display continues to receive the original 4K signal. The switch supports EDID management, allowing higher formats to be used even when not all devices support them. This is particularly useful for optimizing formats like Dolby Vision or 3D when their EDID is copied. Additionally, the VMS04400 supports common audio formats such as DTS, Dolby TrueHD, and Dolby Atmos, and is fully compatible with HDCP 2.2. The switch can be used with up to 4 HDMI inputs and 4 HDMI outputs, offering a maximum bandwidth of 594 MHz. The maximum power consumption is 11.04 W, and the dimensions are 220 x 105 x 19 mm.
5. FeinTech VSW12100 HDMI 2.1 Switch 2 In 1 Out | Auto-Switching
The VSW12100 is an HDMI switch that allows you to use two HDMI sources, such as a PS5 and Xbox Series X, on a single HDMI display. The switch supports 4K 120Hz, VRR, and HDR, including Dolby Vision. You can switch between sources either manually via a button or automatically to the last activated source. The switch requires a USB power source, although in some cases this may not be necessary. HDCP 2.3 is supported, as well as all common audio formats. Automatic switching does not work with all devices, such as Apple TV or Shield TV.

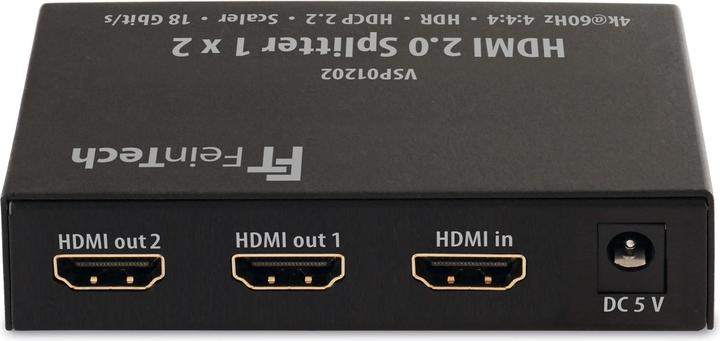

6. FeinTech Splitter
This HDMI 2.0 splitter distributes an HDMI signal up to Ultra HD resolution to 2 HDMI devices, such as TVs, monitors, projectors, or AV receivers. The splitter is backward compatible with lower resolutions at both the input and output. Through an integrated downscaler, 4K content can be displayed on a Full HD display. This allows for mixed operation of a 4K TV and a Full HD TV. An HDR signal remains HDR and may often not be processed correctly by the Full HD device. Therefore, when outputting both 4K and Full HD simultaneously, SDR should be set at the source. Additionally, the audio mode can be selected via a switch. This allows you to set the HDMI source to deliver the best possible audio format (Maximum) or an audio format that both connected HDMI devices support (Minimum). Please note that when connecting to an older AV receiver, it may not be able to process the HDR signals contained in the signal and may require an SDR signal.

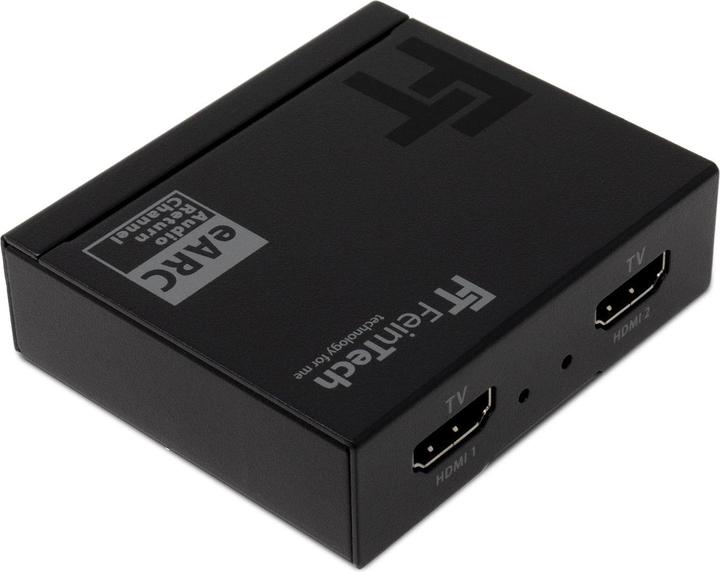

7. FeinTech AX420 HDMI eARC Switch 2 TV x 1 Soundbar
The AX420 HDMI eARC Switch allows for flexible switching between two displays and a sound system with HDMI-ARC or HDMI-eARC. With this innovative device, you can seamlessly switch the audio return channel of your soundbar between two televisions or between a television and a projector. The automatic switching feature detects which display is active, ensuring that the audio is always transmitted correctly. This means no manual switching or cable re-plugging is necessary.
The AX420 is designed exclusively for audio transmission and does not support video signals. It supports all common audio formats, including Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD. Both the display and the sound system must support eARC to enjoy high-resolution formats. With ARC connections, only the audio formats supported by the ARC standard are available.
Thanks to the HDMI-CEC function, the volume of the soundbar can be conveniently controlled using the TV remote. Additionally, when powered externally via USB, the switch allows for automatic power on and off of the sound system. Without external power, the soundbar must be turned on manually. This ensures seamless integration into your home theater setup and reduces the effort required to switch between different devices.
Installing the AX420 is quick and easy, as no additional software is required. Simply connect the switch to your sound system and the desired displays, and you can start using the audio return channel flexibly. The device can be powered through the HDMI connection of the sound system or optionally via a USB power supply to ensure reliable operation.

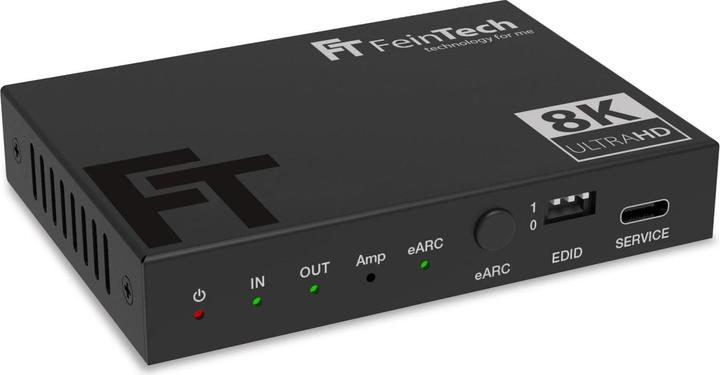

8. FeinTech AX211 HDMI 2.1 Audio Extractor (HDMI-Audio) | 4K 120Hz | eARC
The AX211 extracts audio signals from HDMI sources and passes them on to sound systems with HDMI input, while the video signal is losslessly looped through to a display. It supports high-resolution audio formats such as Dolby Atmos and DTS:X, making it ideal for setups with 8K 60Hz or 4K 120Hz video. With ARC and eARC support, the AX211 transmits the sound from a television to the sound system. EDID management allows for flexible adjustment of audio and video formats, and gaming features like VRR and ALLM ensure an optimal gaming experience. The AX211 is perfect for modern home theater or gaming setups, guaranteeing the best audio and video quality.
9. FeinTech HDMI 2.0 Splitter 2 Inputs 2 Outputs
The VSP01222 is an HDMI splitter that distributes an HDMI signal to two outputs, allowing a 4K TV and a Full HD video projector to be used simultaneously. With an automatic downscaler, the 4K signal is converted to 1080p for the Full HD display, while the 4K display receives the original signal. The splitter supports 4K at 60Hz, HDR10, Dolby Vision, HDCP 2.2, and all common audio formats, including Dolby Atmos and DTS-X. Additionally, it offers an ARC pass-through function and HDMI-CEC support. A second HDMI input can be manually switched to connect another source. The splitter is not suitable for direct operation with a soundbar unless the soundbar has multiple HDMI ports.
10. FeinTech HDMI 2.1 Matrix Switch 4x2 Switcher
Allows the connection of 4 HDMI sources such as PC, PS5, or Xbox Series X gaming console to 2 HDMI sinks (TV, monitor, video projector, AV receiver), with a downscaler for displaying 4K content on a Full HD display.
Integrated audio extractor for audio output via the optical digital output SPDIF Toslink (in stereo, Dolby Digital, DTS) or via RCA (stereo), supports ARC for outputting TV sound through Toslink.
For Ultra HD up to 40 Gbps, supports video formats up to 4K 120Hz YUV 4:2:2 12-Bit, 4K 120Hz RGB/YUV 4:4:4 10-Bit or 8K 60Hz YUV 4:2:0 10-Bit, as well as HDR10, HDR10+, Dolby Vision, HDR, and VRR, ALLM for gaming.
Supports HDCP 2.3 copy protection (backward compatible) and all audio formats, including LPCM 2.0, 7.1, AC3, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, Dolby MAT, DTS, DTS-HD, DSD.
