Best selling Relays from ABB
On this page you’ll find a ranking of the best Relays from ABB. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. ABB Load shedding relay 5,7A E452-5,7A F R ELEKTRONIK E452-5,7A
ABB Stotz S&J Priority Switch E452-5.7A
Manufacturer: ABB Stotz S&J
Designation: Priority Switch
Type: E452-5.7A
Rated Voltage: 230 V
Rated Current: 6.7..39 A
Response Current: 31..53 A
Max. Drop Delay: 20 ms
Max. Continuous Current: 43 A
Number of Contacts as Normally Open: 1
Rated Current (Control Contacts): 1 A
Max. Switching Voltage (Control Contacts): 400 V
Max. Switching Power (Control Contacts): 230 VA
Electrical Lifetime (Control Contacts): 100,000 Switching Cycles
Mechanical Lifetime (Control Contacts): 2,000,000 Switching Cycles
Max. Electrical Switching Frequency: 1800 c/h
Voltage Type: AC
Mounting Type: DIN Rail
Width in Division Units: 1
Installation Depth: 60 mm
Protection Class (IP): IP40
Priority switches are used in installations where the existing conductor cross-sections or the size of the power supply connection do not allow simultaneous operation of two high-power consumers (e.g., storage heating and heat exchanger). Priority switches disconnect the long-term consumer (storage heating) as long as the short-term consumer (heat exchanger) is switched on. The coil of the priority switch is connected in series with the short-term consumer. When the consumer is switched on, the normally open contact of the priority switch disconnects, for example, the relay of the heating system.
2. ABB Reversing contactor
The Klein reversing contactors VB/VBC 6 and VB/VBC 7 with 4 and 5.5 kW AC-3 (400 V) represent a series with very compact dimensions and connection options in screw, solder pin, and flat plug technology. This allows the devices to offer a very wide range of applications even in unfavorable spatial conditions. The mechanically interlocked reversing contactors switch motor power circuits for both clockwise and counterclockwise operation with their AC or DC control. Additional components that can be attached include extinguishing elements, as well as front-mounted 2-pole auxiliary switches and a reversing wiring.
3. ABB Universal switch 1changeover 3A
Number of contacts: 2
Contact configuration: Normally closed/Normally open
Mounting type: Side mounting
Rated contact current: 1.5 A dc, 6 A ac
Rated contact voltage: 110 V dc, 240 V ac
Number and position of contacts: 2-pole
Connection type: Screw fastening
Series: S2C
Auxiliary contacts of the S-2C series. Indicates the position of the device contacts. Suitable for circuit breakers of the S 200 series, RCDs of the F 200 series, and RCBOs of the DS 200 series.
4. ABB ESB20-20N-01
The installation relays ESB20..N are used to control individual loads up to 20 A and can operate with both alternating and direct current. These relays are designed for use in household applications as well as in industrial environments. The following advantages are offered: silent operation, low power consumption, and integrated surge protection. Various contact combinations and accessories are available.
5. ABB Contactor
The ABB AF80-30-22-13 contactor is a versatile and reliable device designed for controlling power circuits in industrial applications. With a wide range of control voltages from 20 to 500 VDC and 24 to 500 VAC, this contactor is particularly flexible and can be used in various environments. Its compact design allows for easy integration into existing systems, while the ability to flexibly change the coil connection terminals provides adaptability to different installation requirements. The contactor is capable of switching motors as well as lightly inductive and non-inductive loads, making it an ideal choice for numerous applications. Additionally, various accessories are available to enhance functionality and facilitate customization to specific needs.
- Wide control voltage ranges from 20 to 500 VDC and 24 to 500 VAC
- Flexibly interchangeable coil connection terminals for versatile connection options
- Compatible with a variety of accessories such as auxiliary contacts and timers
- Suitable for use in industrial applications with motors and other loads
- Complies with IEC60947-5-1 standards for safety and reliability.
6. ABB Circuit breaker
The ABB circuit breaker 1SDA067071R10 is a reliable and powerful device designed for use in various electrical applications. With a rated current of 160 A, this circuit breaker provides an effective solution for protecting electrical circuits against overload and short circuits. The breaker features a molded case that ensures high robustness and durability. Its compact design allows for easy integration into existing systems. The circuit breaker is suitable for use in industrial and commercial environments and meets the necessary safety standards. With a pole count of 3, it is capable of efficiently controlling and protecting three-phase systems. The use of high-quality materials and precise workmanship makes this circuit breaker a trusted choice for professionals.
- Type of protective switch: Circuit breaker with molded case
- Type of tripping: EL
- Country of origin: Italy
- Manufacturer commitment: SBTi.
7. ABB CT-AHC.22
The time relays of the CT-C series combine high quality and excellent performance with low costs. All important timing functions are offered in a space-saving width of 17.5 mm. The series includes 11 single or multifunction devices with a time range of 0.05 s to 100 h. Their wide voltage input allows for flexible use worldwide.

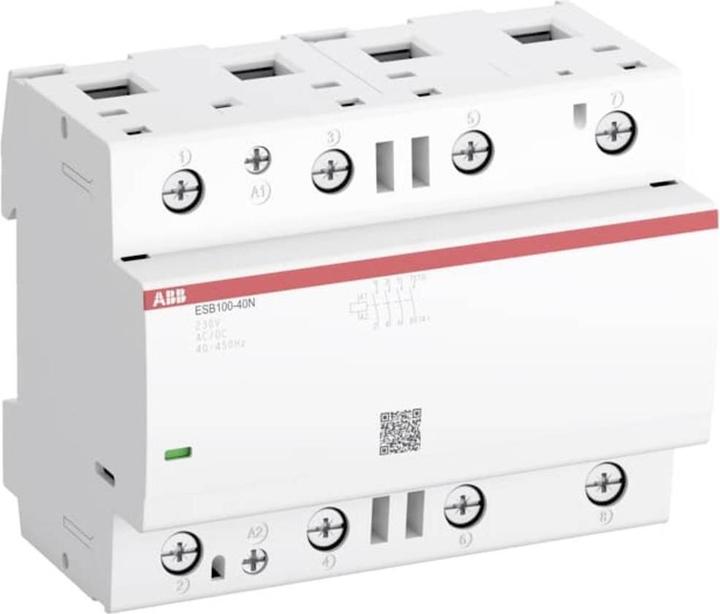

8. ABB INST.SCHÜTZ 230V AC/DC 100A 4S / ESB100-40N-06 1SAE661111R0640
4-pole contactors ESB100-40N with a width of 108 mm control 3-phase loads up to 100 A and are available in different coil voltages. They switch electrical heating devices, water heaters, and lighting. With an integrated coil circuit, they operate with both AC and DC control voltages. As a result, the devices are completely noise-free and quiet during switching. They can be installed side by side without any spacing. An auxiliary switch that can be mounted on the left side is available as an accessory. ESB100-40N features an installation design and complies with household standard EN61095, making them particularly suitable for installation in distribution boards.
9. ABB OT630E04C
The series of manually operated load switches from ABB is an optimal solution for numerous applications. The load switches can handle current ratings from 16 A to 3200 A, with voltages up to 690 V AC. Despite their high performance, the switches ensure safe operation through a variety of integrated protection features. The compact design allows for optimal space utilization. ABB's load switches are available in two different versions, which differ in the type of switching: open switching (I-0-II) and closed switching (I-I+II-II). Additionally, the switches have IEC and UL approvals. ABB offers a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches, and terminal covers, making them suitable for the most demanding applications.
10. ABB CONTACTOR 250-500V50/60HZ-DC / AF16-30-01-14 1SBL177001R1401
The 3-pole AF16 contactors represent the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, lightly inductive, or non-inductive loads. Only 4 coils cover control voltages from 20 to 500 VDC and from 24 to 500 VAC. They feature integrated surge protection and do not require additional suppression components. All integrated or retrofittable auxiliary contacts are designed as mirror contacts according to IEC 60947-5-1 Annex L. Additional accessories such as timing relays, wiring aids, and interlocking components complete the range.
