1. Moxa VPORT 06-2M80M - EN 50155, FHD, H.264MJPEG IP camera with M12 connector, 1 built-in microphone

Our range of IP cameras includes dome and box cameras, as well as cameras with a robust design. They fulfill parts of the EN 50155 standard and therefore offer reliable performance and excellent image quality suitable for a range of applications.

This camera features FHD resolution, H.264/MJPEG compression, an M12 connector, one integrated microphone, operates on 24 VDC, and has an 8.0 mm lens with an operating temperature range of -25 to 55°C.

Memory:
- microSD slot SDXC

Input/Output Interface:
- Digital input channels: 1
- Digital inputs:
+ 13 to 30 V for state 1
- 30 to 1 V for state 0
Max. input current: 8 mA
- Connector: DB9 male

Ethernet Interface:
- 10/100BaseT(X) ports (M12 D-coded 4-pin female connector): 1

Ethernet Software Features:
- Protocols: TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, NTP Client, DNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS, SIP

Security Functions:
- User-level password protection
- IP address filtering
- Encryption: HTTPS, SSH

Power Parameters:
- Number of power inputs: 1
- Input voltage: 12/24 VDC
- Input current: 0.86 A @ 12 VDC, 0.35 A @ 24 VDC
- Power connector: DB9 male

Camera Characteristics:
- Sensor: 1/3-in 1080P progressive scan CMOS
- Lens: f=8.0 mm, F1.6, Diagonal 42°, Horizontal 33°, Vertical 17°
- Minimum illumination: Colour: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
- Synchronization: Internal
- White balance: ATW/AWB
- Electronic shutter: Auto, Fixed (1/30 to 1/25000 sec)
- S/N ratio: Maximum 50 dB (AGC off; DNR on)
- DNR (digital noise reduction): Built-in 2D/3D DNR
- WDR (wide dynamic range): 100 dB
- AGC (auto gain control): 2X, 4X, 8X, 16X
- Flickerless control: Automatic, 50 Hz, 60 Hz modes
- Image rotation: Flip, Mirror, 90°, 180°, 270° rotation
- Image setting: Manual tuning with saturation, sharpness, and contrast
- Camera angle: Pan: ±15°, Tilt: 0° to 90° (controlled manually)

Video Interface:
- Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
- Video output: via Ethernet
- Video streams: 4 independent H.264... more

Network camera

EUR1019,–

Moxa VPORT 06-2M80M - EN 50155, FHD, H.264MJPEG IP camera with M12 connector, 1 built-in microphone

1920 x 1080 Pixels

2. Moxa VPORT 06-2M80M-T - EN 50155, FHD, H.264MJPEG IP camera with M12 connector, 1 mic built-in

The VPort 06-2M80M-T is an advanced indoor surveillance camera specifically designed for mobile video monitoring applications. With a resolution of 1080P (1920 x 1080) and support for H.264 and MJPEG video formats, this camera delivers clear and precise image quality. It meets the requirements of EN 50155 and is suitable for use in extreme environments, with an operating temperature range of -25 to 55 °C or -40 to 70 °C. The camera features a robust M12 Ethernet connector and includes an SDXC slot that supports memory cards of up to 1 TB. The IP66 rating ensures that the camera is protected against dust and water, making it ideal for demanding surveillance applications. Additionally, it has a built-in microphone for audio monitoring, and the camera supports PoE and 24-VDC power supply options.

- Compact dome IP camera with 1080P resolution
- Robust M12 Ethernet connector for reliable connection
- SDXC slot for expandable storage up to 1 TB
- IP66 rating for protection against dust and water
- Built-in microphone for audio monitoring. more

Network camera

EUR1159,–

Moxa VPORT 06-2M80M-T - EN 50155, FHD, H.264MJPEG IP camera with M12 connector, 1 mic built-in

1920 x 1080 Pixels

3. Moxa VPORT P06HC-1V42M-CT - EN 50155, HD image, cubic IP camera with M12 connector, PoE, 4.2 mm lens, -40

Our range of IP cameras includes dome and box cameras, as well as cameras with a robust design. They fulfill parts of the EN 50155 standard and therefore offer reliable performance and excellent image quality for a variety of applications.

Key features include:

- EN 50155 compliance
- HD image quality
- Cubic IP camera with M12 connection
- PoE support
- 4.2 mm lens
- Operating temperature from -40 to 55°C
- Conformal coating

Ethernet interface:
- PoE ports (10/100BaseT(X), M12 D-coded 4-pin connector)

Ethernet software features:
- Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Security functions:
- Password protection at user level
- IP address filtering
- HTTPS encryption

Performance parameters:
- Number of power inputs: 1
- Source of input power: PoE (IEEE 802.3af)
- Input current: 0.17 A @ 48 VDC

Camera features:
- Sensor: 1/2.7-in HD progressive scan CMOS
- Lens: f=4.2 mm, F1.8, Diagonal 87°, Horizontal 80°, Vertical 43°
- Minimum illumination: Colour: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec.)
- Synchronization: Internal
- White balance: ATW/AWB
- Electronic shutter: Auto (1/30 to 1/25000 sec.)
- S/N ratio: Maximum 50 dB (AGC off; DNR on)
- DNR (Digital Noise Reduction): Built-in DNR
- WDR (Wide Dynamic Range): 110 dB
- Flickerless control: Automatic, 50 Hz, 60 Hz modes
- Image rotation: Flip, mirror, and 180° rotation
- Image adjustment: Manual adjustment with saturation, sharpness, and contrast
- AGC (automatic gain control): 2X, 4X, 8X, 16X, 32X, 64X
- BLC (backlight compensation): High/Medium/Low

Video interface:
- Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
- Video output: via Ethernet
- Video streams: 3 independent H.264 or MJPEG video streams
- Video viewing: DynaStream™ support for automatic change of video frame rate, CBR Pro™ for good image quality for transmissions with limited bandwidth, 3 areas for data protection masks, adjustable image size. more

Network camera

EUR879,–

Moxa VPORT P06HC-1V42M-CT - EN 50155, HD image, cubic IP camera with M12 connector, PoE, 4.2 mm lens, -40

4. Moxa VPORT P06-2L42M-T - EN 50155, 1080P, H.264MJPEG IP camera with M12 connector, 1 audio input, PoE, 4.

Our range of IP cameras includes dome and box cameras, as well as cameras with a robust design. They fulfill parts of the EN 50155 standard and therefore offer reliable performance and excellent image quality for a variety of applications.

EN 50155, 1080P, H.264/MJPEG IP camera with M12 connector, 1 audio input, PoE, 4.2 mm lens, -40 to 70°C operating temperature.

Memory:
- microSD slot SDXC

Input/output interface:
- Digital input channels: 1
- Digital inputs:
+13 to +30 V for state 1
-30 to +1 V for state 0
Max. input current: 8 mA
- Connection: 5-pin A-coded M12 plug with 20 cm cable

Ethernet interface:
- PoE ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1

Ethernet software features:
- Protocols:
TCP/IP
IPv4/IPv6
UDP
HTTP
RTP/RTSP
ARP
UPnP
FTP
TFTP
NTP client
DNS
QoS
IGMP v3
ICMP
SNMPv1/v2c/v3
DHCP Opt66/67
HTTPS
SIP

Security functions:
- Password protection at user level
- IP address filter
- Encryption:
HTTPS
SSH

Power parameters:
- Number of power inputs: 1
- Input power source: PoE (IEEE 802.3af)
- Input current: 0.17 A @ 48 VDC

Camera features:
- Sensor: 1/3-in 1080P progressive scan CMOS
- Lens: f=4.2 mm, F1.6, diagonal 82°, horizontal 62°, vertical 34°
- Minimum illumination colour: 0.2 Lux, at F1.2 (Gain High, 50 IRE, 1/30 sec.)
- Internal synchronisation
- White balance: ATW/AWB
- Electronic shutter: Auto, fixed (1/30 to 1/25000 sec.)
- S/N Ratio: Maximum 50 dB (AGC off; DNR on)
- DNR (Digital Noise Reduction): Integrated 2D/3D DNR
- WDR (Wide Dynamic Range): 100 dB
- AGC (Automatic Gain Control): 2X, 4X, 8X, 16X
- Flicker-free control: Automatic, 50 Hz, 60 Hz Modes
- Image rotation: Flip, mirror, 90°, 180°, 270° rotation
- Image adjustment: Manual adjustment with saturation, sharpness and contrast
- Camera angle: Pan: ±15°, tilt: 0° to 90° (manually adjustable)

Video interface:
- Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
- Video output via Ethernet
- Video streams: 4 independent H.264 or... more

Network camera

EUR1089,–

Moxa VPORT P06-2L42M-T - EN 50155, 1080P, H.264MJPEG IP camera with M12 connector, 1 audio input, PoE, 4.

1920 x 1080 Pixels

5. Moxa VPORT P16-1MP-M12-CAM80-T - EN50155, HD image, robust fixed dome IP camera, PoE, M12 connection

The VPORT P16-1MP-M12-CAM80-T is a robust fixed dome IP camera specifically designed for indoor use. It meets the EN 50155 standard, making it a reliable choice for various surveillance applications. With HD image quality and a maximum resolution of 1024 x 768 pixels, this camera delivers clear and detailed images. It is equipped with an 8.0 mm lens that provides a horizontal field of view of 40 degrees and a vertical field of view of 22 degrees. The camera is suitable for operation in extreme temperatures ranging from -40 to 70 °C and supports Power over Ethernet (PoE), simplifying installation. The VPORT P16-1MP-M12-CAM80-T also offers a variety of security features, including password protection and IP address filtering, to ensure the integrity of the surveillance.

- Robust design for indoor use, suitable for extreme temperatures from -40 to 70 °C
- HD image quality with a maximum resolution of 1024 x 768 pixels
- Supports PoE (IEEE 802.3af) for easy installation
- Extensive security features such as password protection and IP address filtering
- Integrated digital noise reduction (2D/3D DNR) for clear images under various lighting conditions. more

Network camera

EUR1229,–

Moxa VPORT P16-1MP-M12-CAM80-T - EN50155, HD image, robust fixed dome IP camera, PoE, M12 connection

6. Moxa VPORT 06-2L80M-T - EN 50155, FHD, H.264MJPEG IP camera with M12 connector, 1 audio input, 24 VDC, 8

Our range of IP cameras includes dome and box cameras, as well as cameras with a robust design. They fulfill parts of the EN 50155 standard and therefore offer reliable performance and excellent image quality for a variety of applications.

This FHD, H.264/MJPEG IP camera features an M12 connector, 1 audio input, operates on 24 VDC, and has an 8.0 mm lens with an operating temperature range of -40 to 70°C.

Memory:
- microSD slot (SDXC)

Input/output interface:
- Digital input channels: 1
- Digital inputs: +13 to +30 V for state 1, -30 to +1 V for state 0
- Max input current: 8 mA
- Connectors: DB9 connector

Ethernet interface:
- 10/100BaseT(X) ports (M12 D-coded 4-pin socket): 1

Software functions:
- Protocols: TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, NTP Client, DNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS, SIP

Security functions:
- Password protection at user level
- IP address filtering
- Encryption: HTTPS, SSH

Power parameters:
- Number of power inputs: 1
- Input voltage: 12/24 VDC
- Input current: 0.86 A @ 12 VDC, 0.35 A @ 24 VDC
- Power connector: DB9 connector

Camera features:
- Sensor: 1/3-in 1080P progressive scan CMOS
- Lens: f=8.0 mm, F1.6, diagonal 42°, horizontal 33°, vertical 17°
- Minimum illumination: Colour: 0.2 lux at F1.2 (Gain High, 50 IRE, 1/30 sec.)
- Synchronization: Internal
- White balance: ATW/AWB
- Electronic shutter: Auto, fixed (1/30 to 1/25000 sec.)
- Signal-to-noise ratio: Maximum 50 dB (AGC off; DNR on)
- DNR (Digital Noise Reduction): Built-in 2D/3D DNR
- WDR (Wide Dynamic Range): 100 dB
- AGC (Automatic Gain Control): 2X, 4X, 8X, 16X
- Flickerless Control: Automatic, 50 Hz, 60 Hz modes
- Image rotation: Flip, Mirror, 90°, 180°, 270° rotation
- Image adjustment: Manual adjustment with saturation, sharpness, and contrast
- Camera angle: Pan: ±15°, tilt: 0° to 90° (manually controlled). more

Network camera

EUR1089,–

Moxa VPORT 06-2L80M-T - EN 50155, FHD, H.264MJPEG IP camera with M12 connector, 1 audio input, 24 VDC, 8

1920 x 1080 Pixels

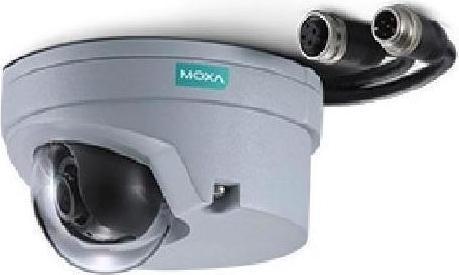

7. Moxa VPORT P06-1MP-M12-CAM60 - EN50155, HD, compact IP camera, M12 connector, 1 audio-in, PoE, 6.0 mm len

Our selection of IP cameras includes dome and box cameras, as well as cameras with a robust design. They meet parts of the EN 50155 standard, providing reliable performance and excellent image quality suitable for a range of applications.

EN 50155, HD, compact IP camera, M12 connector, 1 microphone, PoE, 6.0 mm lens, operating temperature -25 to 55 °C. more

Network camera

EUR759,–

Moxa VPORT P06-1MP-M12-CAM60 - EN50155, HD, compact IP camera, M12 connector, 1 audio-in, PoE, 6.0 mm len

8. Moxa VPORT P16-1MP-M12-IR-CAM36-T - EN50155, HD image, fixed dome IP camera, PoE, M12 connection

The VPORT P16-1MP-M12-IR-CAM36-T is a highly advanced fixed dome IP camera specifically designed for outdoor use. It meets the EN 50155 standard, making it a reliable choice for various surveillance applications. With HD image quality and a 1/2.7-inch HD CMOS sensor, this camera delivers clear and detailed images. The camera is equipped with an M12 connector and supports Power over Ethernet (PoE), simplifying installation and eliminating the need for additional power sources. The VPORT P16-1MP-M12-IR-CAM36-T offers a range of features, including a wide viewing angle of 94 degrees horizontally and 47 degrees vertically, as well as manual pan and tilt functions. It is ideal for use in demanding environments and provides excellent performance day and night, thanks to its automatic ICR control and IR illumination.

- HD image quality with 1 Megapixel resolution
- Robust design according to EN 50155 for reliable performance
- Manual pan and tilt functions for flexible monitoring
- Supports PoE (IEEE 802.3af) for easy installation
- Automatic ICR control for day and night operation. more

Network camera

EUR1369,–

Moxa VPORT P16-1MP-M12-IR-CAM36-T - EN50155, HD image, fixed dome IP camera, PoE, M12 connection

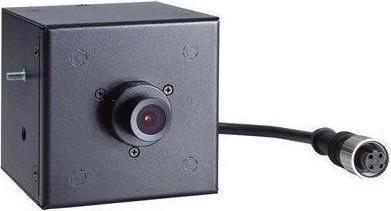

9. Moxa VPORT P06HC-1V36M-CT - EN 50155, HD image, cubic IP camera with M12 connector, PoE

Our range of IP cameras includes dome and box cameras as well as cameras with a robust design. They fulfill parts of the EN 50155 standard and therefore offer reliable performance and excellent image quality for a range of applications.

Key specifications include:
- EN 50155 compliance
- HD image quality
- Cubic IP camera with M12 connection
- Power over Ethernet (PoE)
- 3.6 mm lens
- Operating temperature: -40 to 55°C
- Conformal coating

Ethernet interface features:
- PoE ports (10/100BaseT(X), M12 D-coded 4-pin connector)

Ethernet software features:
- Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Security functions:
- Password protection at user level
- IP address filtering
- HTTPS encryption

Performance parameters:
- Number of power inputs: 1
- Source of input power: PoE (IEEE 802.3af)
- Input current: 0.17 A @ 48 VDC

Camera features:
- Sensor: 1/2.7-in HD progressive scan CMOS
- Lens: f=3.6 mm, F1.6, Diagonal 99°, Horizontal 94°, Vertical 47°
- Minimum illumination: Colour: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec.)
- Synchronization: Internal
- White balance: ATW/AWB
- Electronic shutter: Auto (1/30 to 1/25000 sec.)
- Signal-to-noise ratio: Maximum 50 dB (AGC off; DNR on)
- Digital Noise Reduction: Built-in DNR
- Wide Dynamic Range: 110 dB
- Flickerless Control: Automatic, 50 Hz, 60 Hz modes
- Image rotation: Flip, Mirror, and 180° rotation
- Image adjustment: Manual adjustment with saturation, sharpness, and contrast
- Automatic gain control: 2X, 4X, 8X, 16X, 32X, 64X
- Backlight compensation: High/Medium/Low

Video interface:
- Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
- Video output: via Ethernet
- Video streams: 3 independent H.264 or MJPEG video streams
- Video viewing: DynaStream™ support for automatically changing the video frame rate, CBR Pro™ for good image quality for transmissions with limited bandwidth. more

Network camera

EUR879,–

Moxa VPORT P06HC-1V36M-CT - EN 50155, HD image, cubic IP camera with M12 connector, PoE

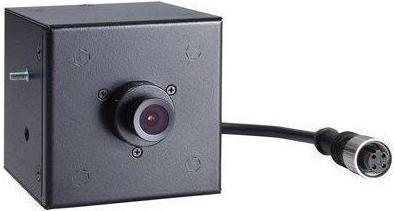

10. Moxa VPORT P06HC-1V28M-CT - EN 50155, HD image, cubic IP camera with M12 connector, PoE, 2.8 mm lens

Our range of IP cameras includes dome and box cameras as well as cameras with a robust design. They fulfill parts of the EN 50155 standard and therefore offer reliable performance and excellent image quality for a range of applications.

Key features include:
- EN 50155 compliance
- HD image quality
- Cubic IP camera with M12 connection
- PoE capability
- 2.8 mm lens
- Operating temperature range of -40 to 55°C
- Conformal coating

Ethernet interface:
- PoE ports (10/100BaseT(X), M12 D-coded 4-pin socket)

Ethernet software functions:
- Protocols: TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

Security functions:
- Password protection at user level
- IP address filtering
- HTTPS encryption

Performance parameters:
- Number of power inputs: 1
- Source of input power: PoE (IEEE 802.3af)
- Input current: 0.17 A @ 48 VDC

Camera features:
- Sensor: 1/2.7-in HD progressive scan CMOS
- Lens: f=2.8 mm, F2.0, Diagonal 126°, Horizontal 113°, Vertical 58°
- Minimum illumination: Colour: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec.)
- Synchronization: Internal
- White balance: ATW/AWB
- Electronic shutter: Auto (1/30 to 1/25000 sec.)
- Signal-to-noise ratio: Maximum 50 dB (AGC off; DNR on)
- DNR (Digital Noise Reduction): Built-in DNR
- WDR (Wide Dynamic Range): 110 dB
- Flickerless control: Automatic, 50 Hz, 60 Hz modes
- Image rotation: Flip, Mirror, and 180° rotation
- Image adjustment: Manual adjustment with saturation, sharpness, and contrast
- AGC (automatic gain control): 2X, 4X, 8X, 16X, 32X, 64X
- BLC (backlight compensation): High/Medium/Low

Video interface:
- Video compression: H.264 (ISO/IEC 14496-10) or MJPEG
- Video output: via Ethernet
- Video streams: 3 independent H.264 or MJPEG video streams
- Video viewing: DynaStream™ support for automatically changing the video frame rate, CBR Pro™ for good image quality for transmissions with limited bandwidth. more

Network camera

EUR879,–

Moxa VPORT P06HC-1V28M-CT - EN 50155, HD image, cubic IP camera with M12 connector, PoE, 2.8 mm lens
