Best selling Metrology from Wachendorff
This page always stays fresh and updates automatically.

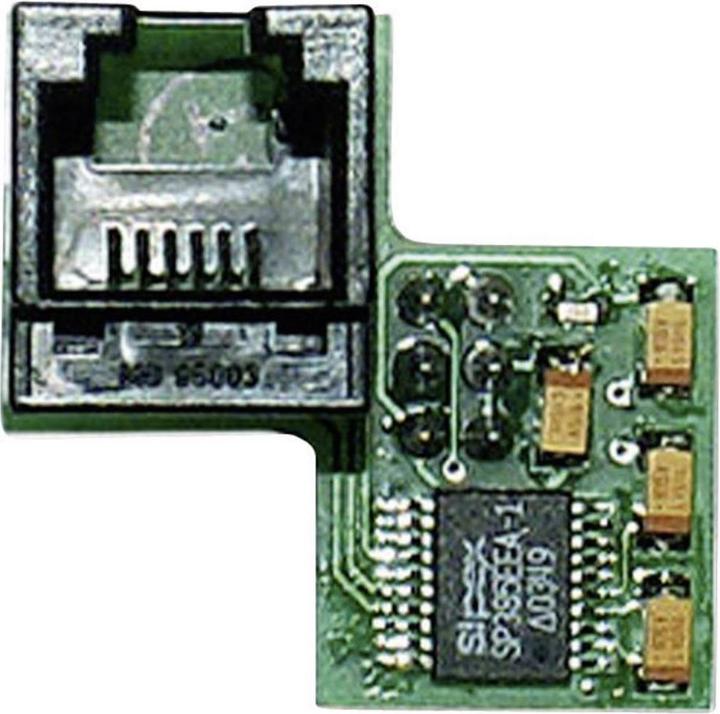

1. Wachendorff CUB5COM2 CUB5COM2 Interface 1 pc.
2. Wachendorff Tachometer mechanical, opt
The PLT200 laser handheld tachometer is a battery-operated multifunctional device designed to measure speed, pulse counting, summation, and time measurements. Thanks to its Class 2M laser sensor, it can accurately measure up to a rotational speed of 200,000 RPM. Pulse detection is done via a corresponding reflective tape. An internal memory allows for the recording of the maximum and minimum values of the rotational speed. The summation function can be used, for example, to measure a quantity of items or the number of revolutions of a shaft. An input socket enables triggering and pulse detection via an external sensor with a TTL signal. For contact measurements, there is an adapter with standard measuring tips. Through an output socket, the detected pulses can be transmitted 1:1 to, for example, an additional display.
3. Wachendorff CUB5P Panelmeter CUB5P 0
The CUB5P built-in measuring device from Wachendorff is a state-of-the-art instrument designed for precise measurements in various applications. With a brilliant 5-digit LC display, it provides a clear and easily readable indication of measurement values. The simple programming via the integrated keyboard allows for user-friendly operation, while the offset input enables individual adjustment of the measurement values. The device is splash-proof on the front side according to IP65, making it ideal for use in demanding environments. The delivery includes everything necessary for installation, including mounting materials, seals, and a user manual to ensure straightforward commissioning.
- Brilliant 5-digit LC display for clear readability
- Easy programming with offset input
- Splash-proof according to IP65 for use in demanding environments.
4. Wachendorff CUB5V Panelmeter CUB5V 0
The CUB5V built-in measuring device from Wachendorff is a state-of-the-art instrument designed for precise voltage measurements. Featuring a clear 5-digit LC display, it offers a user-friendly interface that allows for easy programming. The offset input via the keypad provides flexible adjustment of measurement values. Additionally, the device is splash-proof on the front side according to IP65, making it ideal for use in demanding environments. The CUB5V combines functionality and user-friendliness in a compact design that seamlessly integrates into various applications.
- Brilliant 5-digit LC display for clear readability
- Easy programming with offset input via the keypad
- Splash-proof according to IP65 for use in harsh environments.
5. Wachendorff VZ484801 Preset counter/frequency
The compact preselection counter can be used both as a preselection counter and as a frequency display. Almost all commercially available pulse sensors can be connected via three function inputs (NPN/PNP/TTL). The counting direction can be determined and displayed using the internal phase discriminator or the appropriate wiring of the function inputs. One function input can also be connected via a potentiometer to set the desired value. It has a high protection rating of IP65 from the front side.
6. Wachendorff sal display with OLED display
With a universal input for all standard temperature sensors, process signals, and potentiometers, a 24 VDC sensor supply, and a 16-step linearization function, this display is suitable for nearly all analog sensors. The integrated summation function, two relay outputs, and the galvanically isolated analog output allow for easy solutions to almost any measurement task. In addition to its very shallow installation depth, RS485 Modbus interface (based on the Modbus RTU protocol), IP54 front, removable terminal blocks, and text menu-driven programming interface, this display impresses with its monochrome yellow OLED display. This ensures optimal readability and an extremely wide viewing angle in challenging industrial environments, even in direct sunlight. The visualization through a programmable trend graph or bar chart leaves nothing to be desired for the user.
7. Wachendorff LD2A05P0 Current/voltage display LD2A05P
The industrial large display LDA is an affordable large display for direct voltage and direct current with a programmable input for 0 to 200 VDC and 0 to 200 mA. It features free scaling and is easily programmable via front buttons or software. The 5-digit bright and dimmable LED display is designed with a robust aluminum housing and a high protection rating of IP 65 for harsh industrial environments.
8. Wachendorff LD4006P0 Counter/Tachometer LD4006PO 0 -
The industrial counter/tachometer LD is a cost-effective large display for pulse signals. It is designed with a robust aluminum housing and a high protection rating of IP 65 for harsh industrial use. The input frequency is up to 25 kHz and can be adapted to almost all commercially available sensors. The device is freely scalable and easy to program via front buttons. It offers a counting function as a pure piece counter or as a counter with phase discrimination/totalizer, as well as a tachometer with period duration measurement. Additionally, it features two freely programmable relay outputs. The projection of the device is quick and secure directly via three buttons or software.
9. Wachendorff LD2006P0 Counter/Tachometer LD2006PO 0 -
The industrial counter/tachometer LD is a cost-effective large display for pulse signals. It has been designed with a robust aluminum housing and a high protection rating of IP 65 for harsh industrial use. The input frequency is a maximum of 25 kHz and can be adapted to almost all commercially available sensors. The device is freely scalable and easily programmable via front buttons. It offers a counting function as a pure piece counter or as a counter with phase discrimination/stack counter, as well as a tachometer with period duration measurement. Additionally, it features 2 freely programmable relay outputs. The projection of the device is quick and secure directly via 3 buttons or software.
10. Wachendorff TI484801 Timer/Time relay TI48
The compact timer can operate in five different modes: Timer On, Timer Off, Pause Operation, Oscillator, and PWM (time-proportional output), with the on and off times being set independently. External control signals such as Start, Stop, or Reset can be fed in and programmed via three function inputs (NPN/PNP). One function input can also be connected to a potentiometer for setting the time adjustment. It has a high protection rating of IP65 from the front side.
