Best selling Metrology from RS PRO
On this page you'll find a ranking of the best RS PRO products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. RS PRO BSP 1/4 Analogue Pressure Gauge 1bar Bottom
Maximum pressure measurement: 1 bar
Mounting type: Bottom entry
Display type: Analogue
Connection size: BSP 1/4
Gauge outside diameter: 63 mm
Case material: Stainless steel.
2. RS PRO Pressure Transmitter, 0bar Min, 6bar Max, C
Pressure reading type: Absolute
Minimum pressure reading: 0 bar
Maximum pressure reading: 6 bar
Accuracy: ±1%
Output type: Current
Process connection: G 1/2
Electrical connection: 2-wire, cable
Response time: 1 m/s.

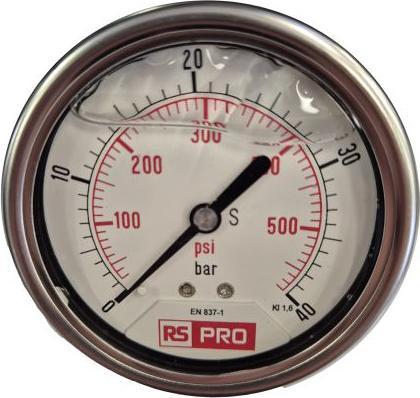

3. RS PRO BSP 1/4 Analogue Pressure Gauge 40bar Botto
Maximum pressure measurement: 40 bar
Mounting type: Bottom entry
Display type: Analogue
Connection size: BSP 1/4
Gauge outside diameter: 63 mm
Case material: Stainless steel.
4. RS PRO Pressure Transmitter Midas,0-1
Pressure range: 0 to 1.6 bar
Pressure indicator type: Pressure indicator
Medium: Gas, liquid
Output type: Analog
Supply voltage: 10 to 30 V DC
Pressure display minimum: 0 bar
Pressure display maximum: 1.6 bar
Analog output: 4 to 20 mA
Operating temperature minimum: -20°C
Operating temperature maximum: +125°C
Accuracy: ≤0.5
Response time: ≤3 ms
Housing material: Stainless steel
RS1 - Pressure transmitter, relative. Pressure transmitter for relative pressure for liquid and gaseous media. Works according to the thick-film strain gauge measuring principle with current output.

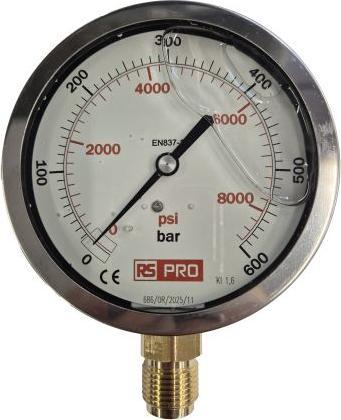

5. RS PRO BSP 1/2in Analogue Pressure Gauge 600bar Bo
The RS PRO pressure gauge with a bottom process connection is a precise and reliable instrument for pressure measurement in various applications. With a maximum pressure capacity of 600 bar, this device is ideal for industrial environments where high pressure values need to be monitored. The analog display system allows for easy and direct reading of pressure values, while the outer diameter of 100 mm ensures good visibility. The stainless steel housing provides durability and resistance to various environmental conditions. The device is designed for operating temperatures ranging from 0 °C to +65 °C, making it versatile for different uses. The connection size of BSP 1/2 inch allows for easy integration into existing systems.
- Maximum pressure of 600 bar for demanding applications
- Stainless steel housing for increased durability
- Analog display for easy readability
- Operating temperature range from 0 °C to +65 °C.
6. RS PRO PT1000 RTD Sensor, 2mm Dia, 10mm Long, 2 Wi
The RS Pro Pt1000 probe resistance thermometer is a high-precision measuring instrument specifically designed for temperature measurement across a wide range of -50°C to +250°C. Featuring a platinum sensor with a length of 10 mm and a diameter of 2 mm, this thermometer provides reliable and accurate temperature readings. The use of platinum as the sensing material ensures high stability and durability, while the 1-meter cable length allows for flexible handling. The device is ideal for various applications in measurement technology and is suitable for both industrial and scientific purposes. The connection type is via a terminal with bare lead wire, enabling easy integration into existing systems.
- Temperature range of -50°C to +250°C for versatile applications
- Platinum sensor for high accuracy and stability
- Compact sensor size of 10 mm length and 2 mm diameter
- 1-meter cable length for flexible usage options.

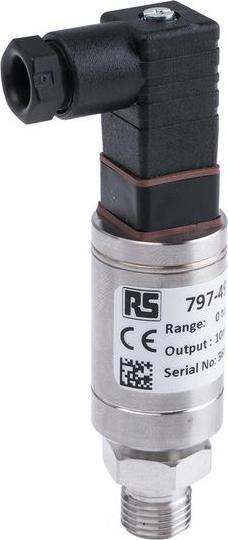

7. RS PRO Pressure Transducer
Pressure display type: Pressure gauge
Minimum pressure display: 0 bar
Maximum pressure display: 1 bar
Accuracy: ±0.25%
Output type: Voltage
Medium: Various media
Process connection: BSP 1/4
Analog output: 0 → 100 mV
Supply voltage: 3 → 12 V dc
Housing material: Stainless steel
Mounting type: With thread
RS pressure transducer – Series IND. The IND series is suitable for a wide range of industrial applications. It features a probe with a piezoresistive ceramic sensor for excellent media compatibility in a stainless steel housing. Piezoresistive thick-film ceramic sensor, stainless steel housing, ±0.25% accuracy, various outputs including mV, Volt, and mA, microprocessor-based amplifier, operating temperature range: –20 °C to +135 °C, temperature compensated, calibrated, and provided with a traceable serial number as well as a calibration certificate.
8. RS PRO Sflush Pres Trans 0-20bG 4-20mA 3/4"
Pressure display type: Pressure display
Pressure display minimum: 0 bar
Pressure display maximum: 20 bar
Accuracy: ±0.25%
Output type: Amperage
Medium: Waste water, viscous liquid, water
Process connection: G3/4
Connection: M12 connector
Maximum current: 28 mA
Supply voltage: 9 to 32 V DC
Housing material: Stainless steel
Protection class: IP65
Maximum pressure setting: 100 bar
RS pressure transmitter. One-piece stainless steel housing. Versatile, high performance. Temperature compensated strain gauge with ±0.25% accuracy. Temperature range: -40 to +100/125°C. Transmitter for gauge pressure up to 250 mbar.

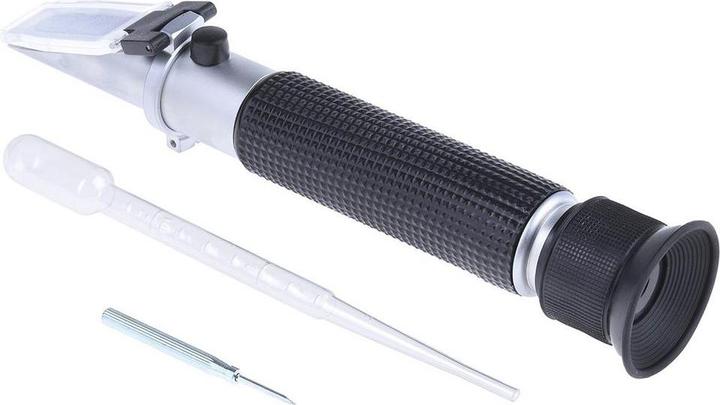

9. RS PRO Refractometer
Refractometer Type: Mixture of Cutting Fluids
Max Measurement Range: 18%
Min Measurement Range: 0%
Max Accuracy: ±0.1
Resolution: 0.1% Brix
Dimensions: 96 x 60 x 230 mm
Weight: 525 g
Height: 60 mm
Length: 230 mm
Width: 96 mm
RS Refractometer. An ideal measuring instrument for the quick analysis of water concentration mixtures. The refractometer allows for easy and precise control of dilution with a prism plate that has a significantly higher refractive index than the sample solution being measured. Key features: simple and precise dilution control, refractometer prism plate, user-friendly and easily recalibrated.

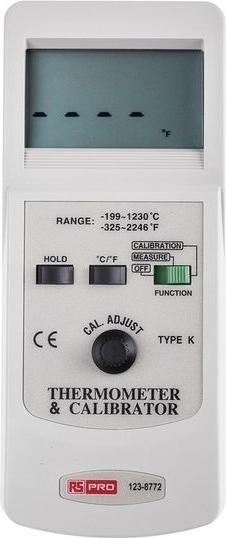

10. RS PRO TC920 K-type temperature calibrator
Resolution: 0.1 °C
Accuracy max.: ±2 °C
Thermocouple type: K
Temperature scale: Celsius, Fahrenheit
K-type thermocouple temperature max.: +1230 °C, +2246 °F
K-type thermocouple temperature min.: -325 °F, -199 °C
Width: 38 mm
PP3 alkaline battery and test leads included. The Temperature Calibrator TC920 Type K from RS Pro is a portable meter designed for calibrating and measuring type K thermocouples. It features a 3-digit LCD with 2000 counts, adjustable temperature range from -199.9 to +1230 °C, and offers temperature simulation and measurement with an accuracy of ±(1 → 0.75% +2 → 1 °C) across a wide temperature range. It includes standard type K sockets (NiCr - NiAl) and an integrated circuit for temperature linearity compensation, as well as measurement storage and RS-232 connectivity.
